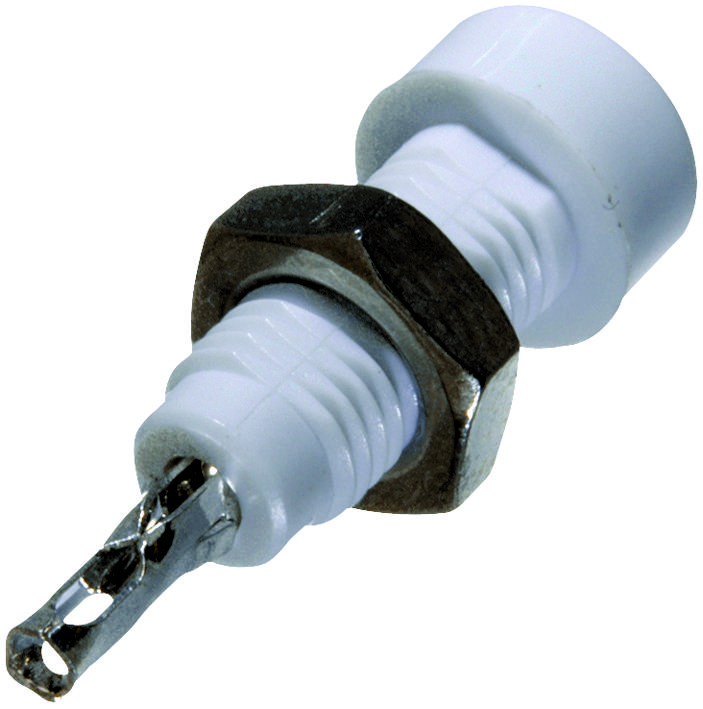

Johnson-Cinch Connectivity Solutions 1050801001 Insulated Test Jack
The 105-0801-001 is a white insulated standard tip jack designed for test and measurement applications. It features a bright-tin phosphor bronze contact, a durable nylon 6/6 body UL-approved for self-extinguishing, and a 0.08-inch standard tip plug compatibility. The jack includes a formed contact with a slotted terminal, and a 0.188-inch hex socket head screw for straightforward mounting. It supports panel thicknesses up to 0.437 inches, offers ratings of 10 amps and 5700 Vrms minimum breakdown voltage, and is ideal for reliable electrical connections in measurement setups.
Johnson-Cinch Connectivity Solutions 1050801001 Insulated Test Jack Specifications:
- Contact: Phosphor bronze per QQ-B-750
- Finish: Bright tin
- Body: Nylon 6/6 per ASTM D4066
- Hardware: Nickel plated nut (unassembled)
- Body Thread Stripping Torque: 4.0 Ib. in. (4.5 kg. cm.)
- Panel Thickness: Up to 0.437 inches (11.10 mm)
- Current Rating: 10 amps
- Breakdown Voltage: minimum 5700 Vrms
- Contact Resistance: maximum 0.010 ohms
- Contact-To-Panel Capacitance: 2 pF nominal
- Tip Diameter: 0.080 inches (2.00 mm)
- Mounting: Hex socket head 0.188 inches (4.77 mm)
- UL Approved: Yes, for self-extinguishing nylon body
Buy the Cinch Series Tip Jack: 1050801001
Order the insulated test jack designed for reliable electrical connections in measurement setups. Featuring a bright-tin phosphor bronze contact, durable nylon body, and compatibility with 0.08-inch tips. Supports panel thicknesses up to 0.437 inches, rated for 10 amps and 5700 Vrms minimum breakdown voltage, ensuring safety and durability. Its easy-to-mount hex socket head screw and UL approval make it a perfect choice for testing and measurement applications. Secure your connections and enhance your setup efficiency today.
Buy Cinch Series Tip Jack 1050801001 now and experience unmatched reliability and performance for your test and measurement needs.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1050801001?
You can click on the BUY or RFQ button to purchase 1050801001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1050801001?
You can download the 1050801001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1050801001?
Johnson-Cinch Connectivity Solutions
