Johnson-Cinch Connectivity Solutions 1080312001 Banana Plug
The banana plug features a brass body with a nickel-plated finish, adhering to QQ-B-626D specifications. It includes an insulated handle made of violet nylon 6/6, compliant with ASTM D4066 standards. The design offers an insulated, solderless, tapered handle for quick attachment of wires up to 16 gauge. The recessed plug body minimizes the risk of electric shock. It also has a maximum contact resistance of 0.01 ohms and a nylon insulation that is UL approved for self-extinguishing properties. Ideal for test and measurement applications.
Johnson-Cinch Connectivity Solutions 1080312001 Banana Plug Specifications:
- Plug Body: Brass per QQ-B-626D
- Plug Spring: Nickel silver per QQ-C-533
- Finish: Nickel
- Insulated Handle: Nylon 6/6 per ASTM D4066
- Handle Color: Violet
- Handle Material: Nylon 6/6
- Handle Compliance: ASTM D4066
- Connection Capacity: Up to 16 gauge wire
- Maximum Current: 15 amps
- Breakdown Voltage: 3500 V RMS minimum
- Contact Resistance: 0.010 ohms maximum
- Plug Diameter for Standard Banana Jack: 0.166 inches (4.23 mm)
- Recessed Design: Limits shock hazard
- Material Finish: Nickel-plated
- Insulation Material: Nylon 6/6
- UL Certification: Self-extinguishing properties

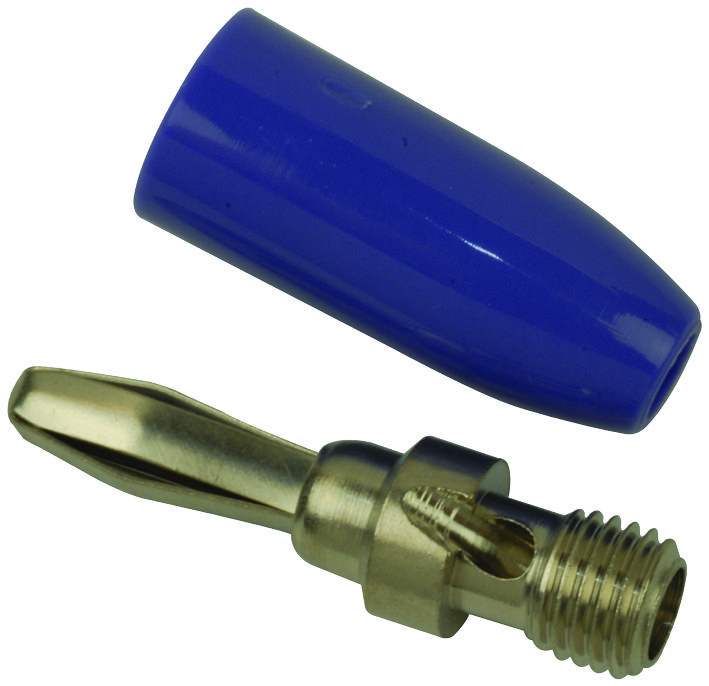

Buy the Cinch Nickel Plated Banana Plug – Reliable Test and Measurement Connector for Industrial Applications
Purchase the Cinch banana plug online to ensure reliable, quick, and safe connections for your test and measurement projects. Featuring a brass body with a nickel finish and a violet nylon insulated handle, this solderless plug supports wire sizes up to 16 gauge and is compliant with ASTM D4066 standards. Its recessed design reduces shock risk, and the UL-approved nylon insulation adds fire safety. With a contact resistance of 0.01 ohms and a breakdown voltage of 3500 V RMS, this plug is ideal for industrial testing applications, providing durability and safety in one compact design.
Order your Cinch Series 1080312001 banana plug today and enhance your testing setup with quick, safe, and reliable connections designed for professional use.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1080312001?
You can click on the BUY or RFQ button to purchase 1080312001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1080312001?
You can download the 1080312001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1080312001?
Johnson-Cinch Connectivity Solutions
