Johnson-Cinch Connectivity Solutions 1080752001 banana plug
This banana plug features a brass body (per QQ-B-626D) with a durable nickel-plated finish. It comes with a black nylon 6/6 insulated handle (per ASTM D4066), designed for easy cable mounting and solder connection. The solder-type terminal accommodates wire sizes up to 16 gauge, making it ideal for test and measurement setups. It provides a maximum contact resistance of 0.01 ohms, ensuring reliable conductivity. The nylon insulation is UL approved for self-extinguishing, offering safety and dependable performance in professional electronic and electrical applications.
Johnson-Cinch Connectivity Solutions 1080752001 banana plug Specifications:
- Plug Body Material: Brass per QQ-B-626D
- Finish: Nickel plating
- Insulated Handle: Nylon 6/6 per ASTM D4066
- Wire Range: Up to 16 gauge for solder termination
- Contact Resistance: 0.010 ohms maximum
- Breakdown Voltage: 3500 Vms minimum
- Current Rating: 15 amps
- Diameter for standard banana jack: 0.166 inches (4.23 mm)
- UL Approved: Nylon handle for self-extinguishing
- Insulation: Nylon 6/6
- Features: Insulated hex body, long handle, solder type
- Applicable Standards: QQ-B-626D, ASTM D4066

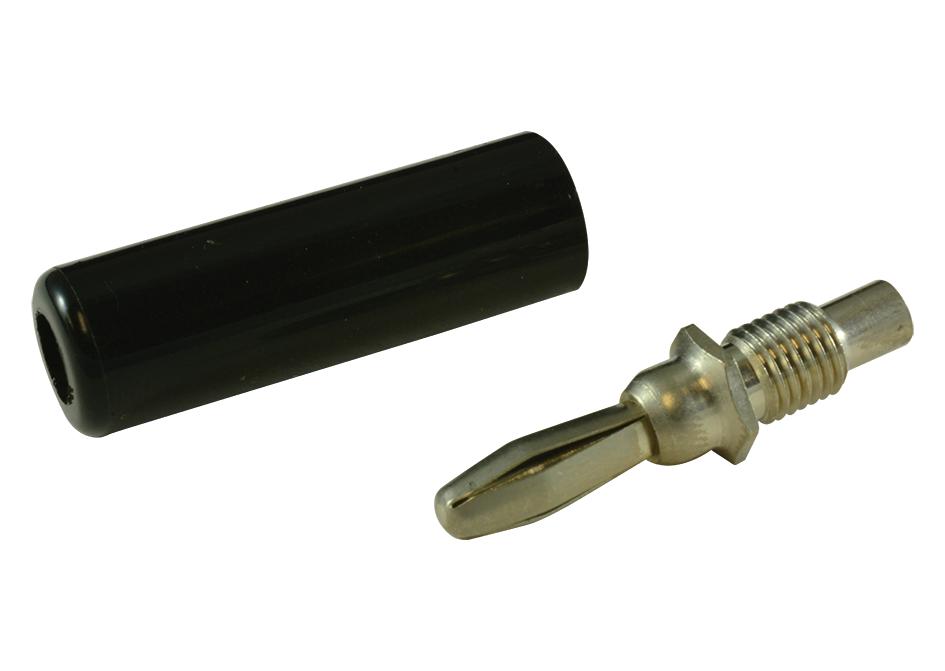

Buy the Buy Cinch Connectivity Solutions Banana Plug Part Number 1080752001 Online
Purchase the Cinch Connectivity Solutions banana plug online today for dependable electrical connections in test and measurement setups. Featuring a brass body with a nickel-plated finish and an UL-approved nylon insulated handle, this solder-type plug accommodates wire sizes up to 16 gauge. Designed for durability and safety, it offers a contact resistance of 0.01 ohms and a breakdown voltage of 3500 Vms. Perfect for professionals seeking reliable, easy-to-install connectors for electrical applications.
Order your Cinch Connectivity Solutions Banana Plug Part Number 1080752001 today and enhance your testing and measurement projects with reliable, easy-to-use connectors.
