Johnson-Cinch Connectivity Solutions 1080910001 Insulated Banana Jack

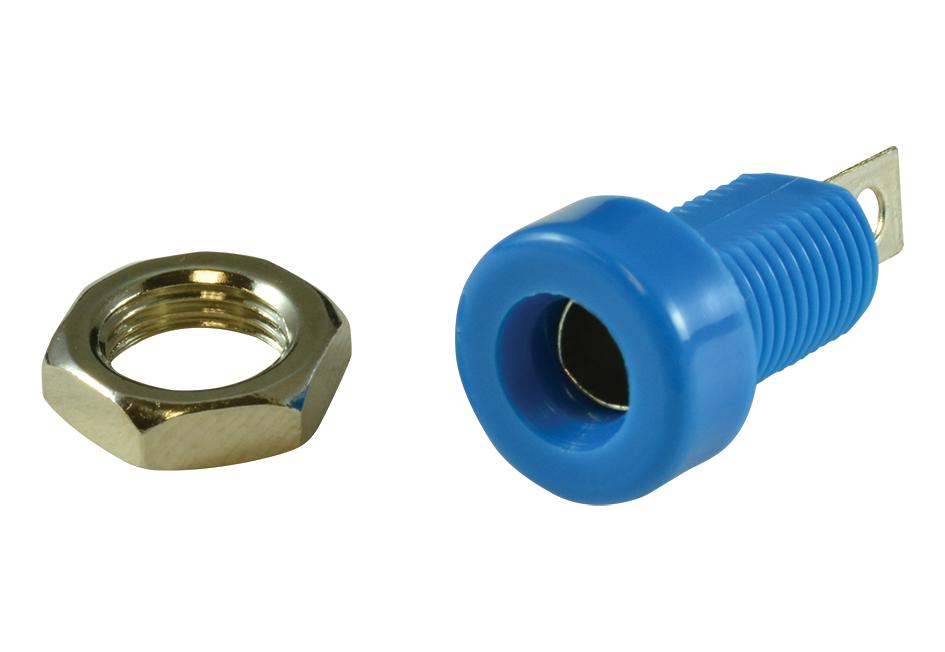

The 108-0910-001 is a blue insulated solder terminal banana jack with a bright tin-plated brass body and nylon construction. It features a threaded nylon body capable of withstanding 6.0 lbs.inch (7 kg.cm) of thread stripping force for panel thicknesses up to 8.8mm. The keyway includes double flats for secure mounting, accepting wire sizes up to 16 gauge. Rated for 15A current, with a minimum breakdown voltage of 7,000 Vrms, and contact resistance of 0.010 ohms. Made with UL-approved self-extinguishing nylon, suitable for high-voltage applications up to 7kV, ideal for defense, aerospace, and signal systems.
Johnson-Cinch Connectivity Solutions 1080910001 Insulated Banana Jack Specifications:
- Contact Material: Brass per QQ-B-626D
- Finish: Bright tin
- Body Material: Nylon 6/6 per ASTM D4066
- Hardware: Nickel-plated nut (unassembled)
- Body Thread Stripping Torque: 6.0 lb.in (7 kg.cm)
- Panel Thickness Compatibility: Up to 0.343 inches (8.80 mm)
- Current Rating: 15 amps
- Breakdown Voltage: 7000 V rms minimum
- Contact Resistance: 0.010 ohms maximum
- Contact-To-Panel Capacitance: 2.4 pF nominal
- Color: Blue (108-0910-001)
- Wire Sizes: Accepts up to 16 gauge
- Mounting: Keyed with double flats for secure attachment
- UL Approval: Yes, self-extinguishing nylon
- Typical Applications: Defense, military, aerospace, signal processing
Buy the Cinch Series Banana Jack: 108-0910-001
Purchase the Cinch Series Banana Jack 108-0910-001 online today to ensure high-quality electrical connections for your aerospace, military, or signal processing projects. This insulated banana jack features a bright tin-plated brass body and UL-approved nylon for safety and durability. With a rated current of 15A and a breakdown voltage of 7,000 Vrms, it offers dependable performance in high-voltage environments. Its keyed mounting with double flats enables secure installation on panels up to 8.8mm thick, making it ideal for demanding industrial and military applications.
Buy Cinch Series Banana Jack 108-0910-001 now and experience reliable electrical connectivity with secure mounting and high voltage capabilities.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1080910001?
You can click on the BUY or RFQ button to purchase 1080910001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1080910001?
You can download the 1080910001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1080910001?
Johnson-Cinch Connectivity Solutions
