Johnson-Cinch Connectivity Solutions 1080912001 banana jack

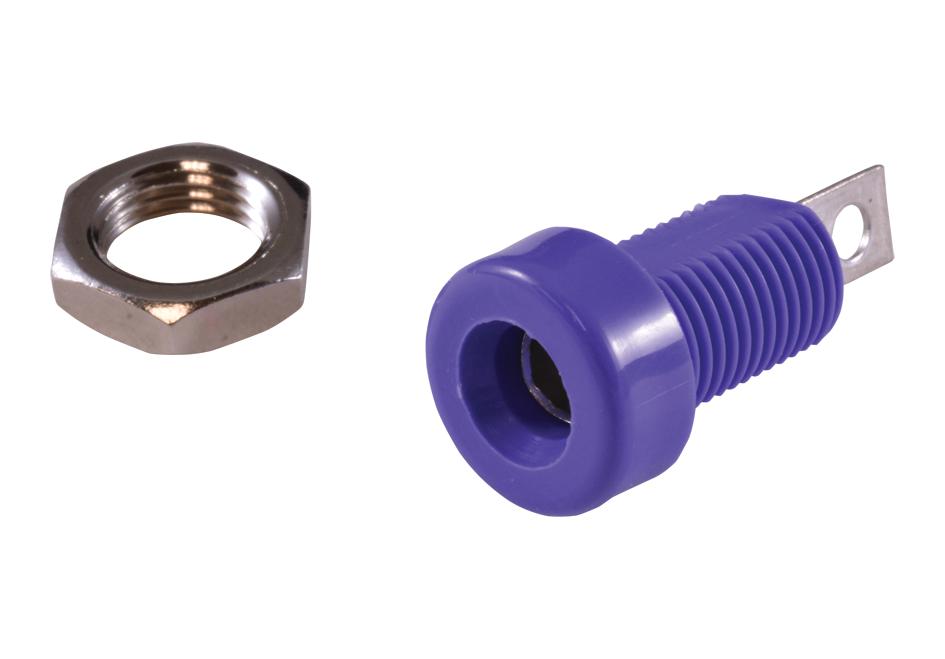

The 108-0912-001 banana jack is a panel mount component made of violet nylon 6/6 that complies with ASTM D4066 standards. It features bright tin-plated brass contacts per QQ-B-626D specifications and an insulated solder terminal for reliable connections. The jack employs keyed mounting with double flats for secure installation and accepts wires up to 16 gauge. It includes nickel-plated hardware for easy assembly, offers a contact resistance of approximately 0.01 ohms, and is UL-approved for self-extinguishing safety. Ideal for test equipment and measurement systems requiring durable, insulated, and high-performance connection points.
Johnson-Cinch Connectivity Solutions 1080912001 banana jack Specifications:
- Contact: Formed brass per QQ-B-626D
- Finish: Bright tin
- Body Material: Nylon 6/6 per ASTM D4066
- Hardware: Nickel plated nut
- Body Thread Stripping Torque: 6.0 Ib. in.
- Panel Thickness: Up to 0.343 inches
- Current Rating: 15 amps
- Breakdown Voltage: 7000 V minimum
- Contact Resistance: 0.010 ohms maximum
- Contact-to-Panel Capacitance: 2.4 pF nominal
- Mounting: Keyed with double flats
- Wire Compatibility: Up to 16 gauge
- Finish: Bright tin-plated brass
- UL Approved: Yes
- Material: Nylon 6/6
- Features: Insulated solder terminal, self-extinguishing nylon
- Part Number: 1080912001
Buy the Buy Cinch Connectivity Solutions Banana Jack Part Number 1080912001 Online
Purchase the Cinch Connectivity Solutions banana jack online today. Designed with violet nylon insulation and bright tin-plated brass contacts, it offers secure mounting with double flats and accepts wires up to 16 gauge. This UL-approved component features a nickel-plated hardware for corrosion resistance, ensuring long-lasting performance. Suitable for test and measurement setups, it provides excellent electrical characteristics, including a contact resistance of 0.01 ohms and breakdown voltage of 7000 volts minimum. Perfect for professional electrical and electronic applications requiring reliable, insulated connection points.
Get Cinch Connectivity Solutions 1080912001 today—durable nylon insulated banana jack with secure keyed mounting for reliable test connections.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1080912001?
You can click on the BUY or RFQ button to purchase 1080912001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1080912001?
You can download the 1080912001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1080912001?
Johnson-Cinch Connectivity Solutions
