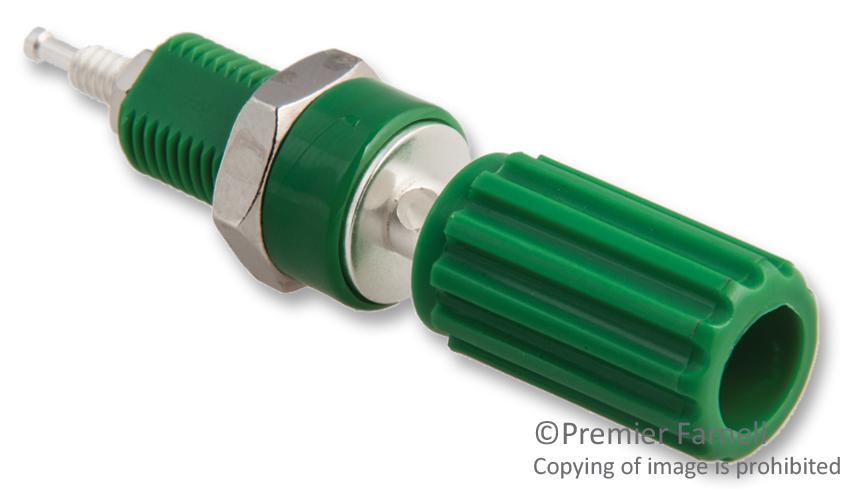

Johnson-Cinch Connectivity Solutions 1110104001 Insulated Binding Post
The green-insulated binding post features a silver-plated brass body and meets ASTM D4066 standards. Its nylon 6/6 insulation is flatted to prevent turning during installation. Equipped with a metal turret terminal and captive thumb nut, it provides reliable connectivity. The nylon body withstands a maximum thread stripping torque of 6.0 lb-in (7 kg·cm). Rated for 15A, it offers a contact resistance of 0.010 ohms and a breakdown voltage of 5,700 VRMS. Its compact design with a nominal stud-to-panel capacitance of 3.3 pF makes it ideal for defense, aerospace, and signal processing applications.
Johnson-Cinch Connectivity Solutions 1110104001 Insulated Binding Post Specifications:
- Stud Material: Brass per QQ-B-626D
- Finish: Silver
- Insulating Material: Nylon 6/6 per ASTM D4066
- Hardware: Nickel plated nut
- Body Thread Stripping Torque: 6.0 lb-in (7.0 kg·cm)
- Panel Thickness: Up to 0.281 inches (7.15 mm)
- Current Rating: 15 amps
- Contact Resistance: 0.010 ohms maximum
- Breakdown Voltage: 5700 VRMS minimum
- Nominal Stud-to-Panel Capacitance: 3.3 pF
- Maximum Diameter for standard Banana Plug: 0.175 inches (4.44 mm)
- UL Approved for self-extinguishing
- Thread Types: 4-40 UNC-24, 5-716-32 UNEF-2A
- Overall Dimensions: Max length 1.70 inches (43.18 mm), Width 0.469 inches (11.91 mm), Height 0.719 inches (18.26 mm)
Buy the Cinch Series Insulated Binding Post: 1110104001
Order the Cinch Series insulated binding post online for installation-ready, high-performance connectivity solutions. Featuring a durable, silver-plated brass body and UL-approved nylon insulation, this binding post offers excellent electrical characteristics with a maximum contact resistance of 0.010 ohms and a breakdown voltage of 5,700 VRMS. Its flattened nylon body prevents turning during assembly, and the captive thumb nut ensures secure attachment. Designed for aerospace, defense, and signal processing environments, this reliable component will ensure long-lasting, safe electrical connections in demanding applications.
Get Cinch Series 1110104001 today—built for durable, reliable electrical connections in aerospace, military, and signal processing applications.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1110104001?
You can click on the BUY or RFQ button to purchase 1110104001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1110104001?
You can download the 1110104001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1110104001?
Johnson-Cinch Connectivity Solutions
