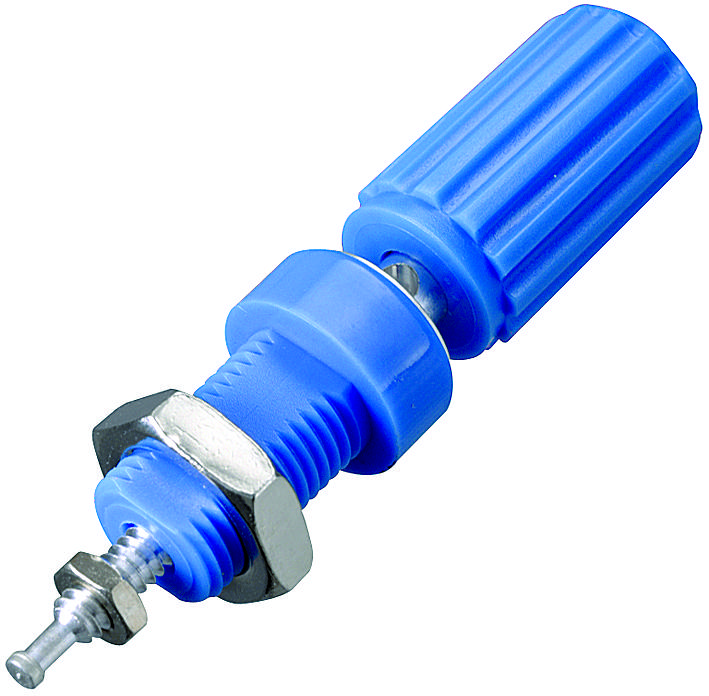

Johnson-Cinch Connectivity Solutions 1110110001 Insulated Binding Post
The binding post features a silver-plated brass stud compliant with QQ-B-626D standards and a blue nylon 6/6 insulator conforming to ASTM D4066. This panel mount, insulated standard binding post includes nickel-plated nut hardware, a turret terminal, a captive thumb nut, and an insulated body that is flattened to prevent turning. It offers a contact resistance of 0.01 ohms. The nylon insulator is UL approved for self-extinguishing properties. Suitable for test and measurement applications, it handles 15 amps and has a breakdown voltage of 5700 Vrms.
Johnson-Cinch Connectivity Solutions 1110110001 Insulated Binding Post Specifications:
- Stud Material: Brass per QQ-B-626D
- Finish: Silver
- Insulating Material: Nylon 6/6 per ASTM D4066
- Hardware: Nickel-plated nut
- Body: Insulated, flattened to prevent turning
- Panel Thickness Compatibility: Up to 0.281 inches
- Current Rating: 15 amps
- Contact Resistance: 0.010 ohms maximum
- Breakdown Voltage: 5700 Vrms minimum
- Stud-to-Panel Capacitance: 3.3 pF typical
- Compatible with: Standard banana plugs 0.175 inches diameter
- Features: Turret terminal, captive thumb nut, self-extinguishing nylon insulator
Buy the Buy Cinch Connectivity Solutions Binding Post Part Number 1110110001 Online
Purchase the high-quality insulated binding post online from Cinch Connectivity Solutions. Designed with a silver-plated brass stud and UL-approved nylon insulator, it provides excellent electrical conductivity and safety. Its features include a turret terminal, captive thumb nut, and a flattened insulated body to prevent turning. Rated for 15 amps and a breakdown voltage of 5700 Vrms, it’s suitable for precise test and measurement applications. Reliable, durable, and easy to install, this binding post ensures secure connectivity for professional electrical work.
Order your Cinch Connectivity Solutions Series Binding Post 1110110001 today and ensure reliable connections for your test and measurement setups.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1110110001?
You can click on the BUY or RFQ button to purchase 1110110001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1110110001?
You can download the 1110110001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1110110001?
Johnson-Cinch Connectivity Solutions
