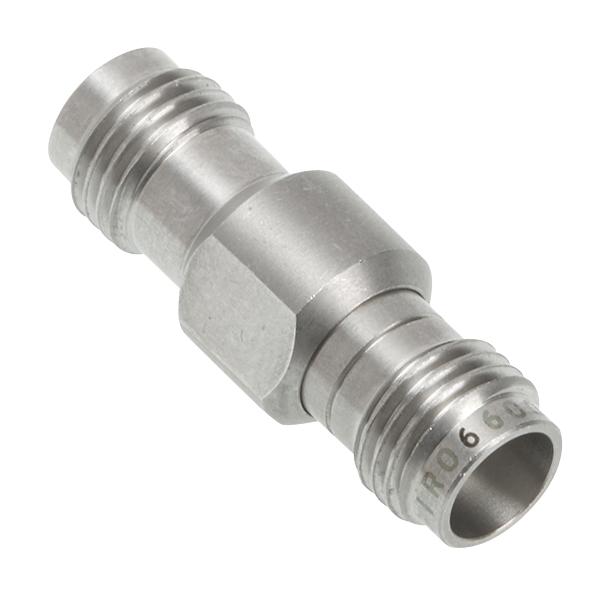

Johnson-Cinch Connectivity Solutions 1341000016 RF Adapter
The 134-1000-016 is a high-performance RF adapter that connects a 1.85mm Jack to a 2.4mm Jack with a 50-ohm impedance. Featuring a passivated stainless steel body and shell, it ensures durability and corrosion resistance. Equipped with gold-plated beryllium copper contacts, this adapter delivers reliable conductivity. It operates from 0 to 50 GHz with a maximum VSWR of 1.15, supporting applications requiring excellent signal integrity. Designed for high-frequency environments, it withstands temperatures from -55°C to +125°C and has an insulation resistance of at least 5000 megaohms with a dielectric voltage rating of 500 VRMS.
Johnson-Cinch Connectivity Solutions 1341000016 RF Adapter Specifications:
- Impedance: 50 Ohms
- Frequency Range: 0 to 50 GHz
- VSWR: 1.15 maximum
- Body Material: Passivated stainless steel
- Contact Material: Gold-plated beryllium copper
- Temperature Range: -55°C to +125°C
- Insulation Resistance: ≥ 5000 megaohms
- Dielectric Withstanding Voltage: 500 VRMS
- Max Voltage Standing Wave Ratio: 1.15
- Application: High-frequency RF connections in demanding environments
Buy the Buy Cinch RF Adapter Part Number 1341000016 Online
Order the Cinch RF Adapter connecting 1.85mm to 2.4mm RF connectors with 50 ohms impedance. Designed for frequencies up to 50 GHz, it features a stainless steel body with gold-plated contacts for reliable conductivity. It withstands temperatures from -55°C to +125°C, ensuring durability in extreme environments. The adapter offers a maximum VSWR of 1.15, providing excellent signal integrity. Available for quick online purchase, this high-performance component meets industry standards for precision and durability in demanding RF applications.
Get Cinch RF Adapter 1341000016 today — designed for high-frequency precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1341000016?
You can click on the BUY or RFQ button to purchase 1341000016 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1341000016?
You can download the 1341000016 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1341000016?
Johnson-Cinch Connectivity Solutions
