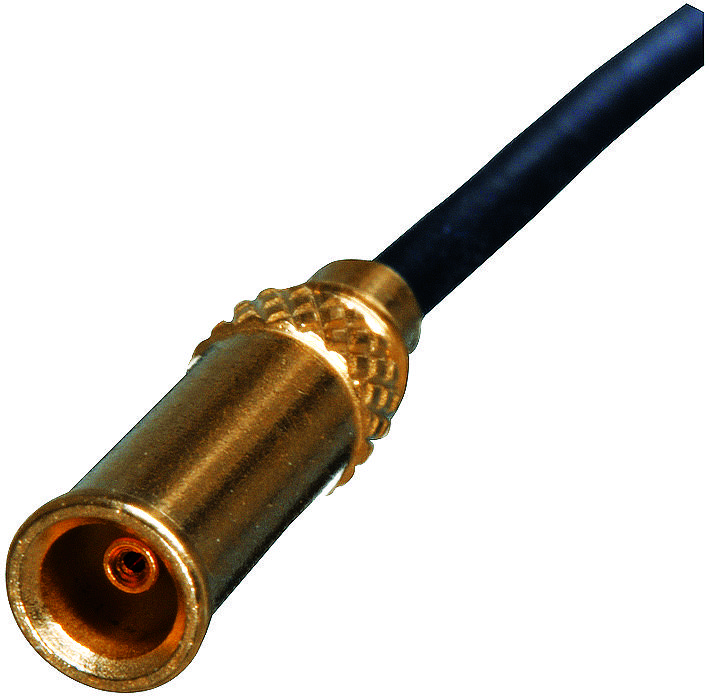

Johnson-Cinch Connectivity Solutions 1353403001 RF Connector
The MMCX 50 Ohm connector is a high-performance RF coaxial connector designed for frequencies up to 6 GHz, ideal for microwave communication systems. Featuring a straight crimp type plug with solder or crimp captive contact, it offers reliable electrical performance with low VSWR and excellent environmental resistance. Constructed with gold-plated brass and beryllium copper contacts, it ensures durability and consistent connectivity in demanding applications. Suitable for flexible and semi-rigid cables like RG-316, RG-178, and RG-186, this connector meets MIL-STD-202 standards for shock, vibration, and temperature extremes, making it ideal for aerospace, defense, and telecommunications.
Johnson-Cinch Connectivity Solutions 1353403001 RF Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-6 GHz for connectors, 0-1 GHz for dummy loads
- VSWR: 1.20 (flexible cable, 0-6 GHz), 1.15 (semi-rigid, 0-6 GHz)
- Working Voltage: 170 V at sea level
- Dielectric Withstanding Voltage: 500 Vrms at sea level
- Insulation Resistance: 1000 megohms minimum
- Contact Resistance: 5.0 milliohms initial, 8.0 milliohms after environmental testing
- Insertion Loss: 0.1 dB at 1 GHz (straight), 0.2 dB (right angle)
- RF Leakage: 60 dB (flexible cable), -70 dB (semi-rigid)
- Temperature Range: -65°C to +165°C for connectors
- Durability: At least 500 connect/disconnect cycles
- Material: Brass body, gold-plated, beryllium copper contacts, PTFE insulators
- Cable Compatibility: RG-316, RG-178, RG-186, semi-rigid and flexible cables
- Environmental Compliance: MIL-STD-202, MIL-G-45204, ASTM D 1710
Buy the Cinch Series MMCX RF Connector: 1353403001
Order the Cinch MMCX 50 Ohm RF connector online today and experience the highest quality connection for microwave and RF applications. Designed for frequencies up to 6 GHz, it offers low VSWR, robust construction, and excellent environmental resistance, ideal for aerospace, defense, and telecommunication systems. Its durable gold-plated brass body and beryllium copper contacts ensure long-lasting performance and reliable connections even in harsh conditions. Easy to install with crimp or solder contacts, this connector guarantees optimal electrical and mechanical performance for critical high-frequency applications.
Get Cinch MMCX 50 Ohm RF connector today—built for precision, durability, and reliable microwave performance.
