Johnson-Cinch Connectivity Solutions 1353701201 RF Coaxial Connector
The RF/Coaxial Connector MMCX straight PCB mount jack receptacle features a gold-plated brass body and contact, with a through-hole vertical mount and printed circuit board termination. It is compatible with cable types such as RG178, RG316, and RG316DS. This connector offers an impedance of 50 ohms and supports a maximum frequency of 6 GHz. It has a minimum insulation resistance of 1000 megaohms and is suitable for applications in defense, military, aerospace, and signal processing fields.
Johnson-Cinch Connectivity Solutions 1353701201 RF Coaxial Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-6 GHz
- Maximum Voltage: 170 V rms at sea level
- Dielectric Withstanding Voltage: 500 Vrms at sea level
- Insulation Resistance: 1000 megohms min
- Contact Resistance: 5.0-8.0 milliohms (center), 1.0-15 milliohms (outer)
- Insertion Loss: 0.1 dB at 1 GHz (straight cabled), 0.2 dB (right angle cabled)
- Operating Temperature: -65°C to +165°C
- Material Bodies: Brass, gold plated; Contacts: Beryllium copper, gold plated
- Durability: 500 cycles minimum
- Vibration, Shock, Moisture Resistance: MIL-STD-202 compliant
- Connector Size: 0.047 diameter flexible cable, RG-178, RG-316, RG-316DS
- RF Leakage: -60 dB to -70 dB at 2.5 GHz
- Power Rating: 0.5 watt at +25°C, derated to 0.25 watt at +125°C

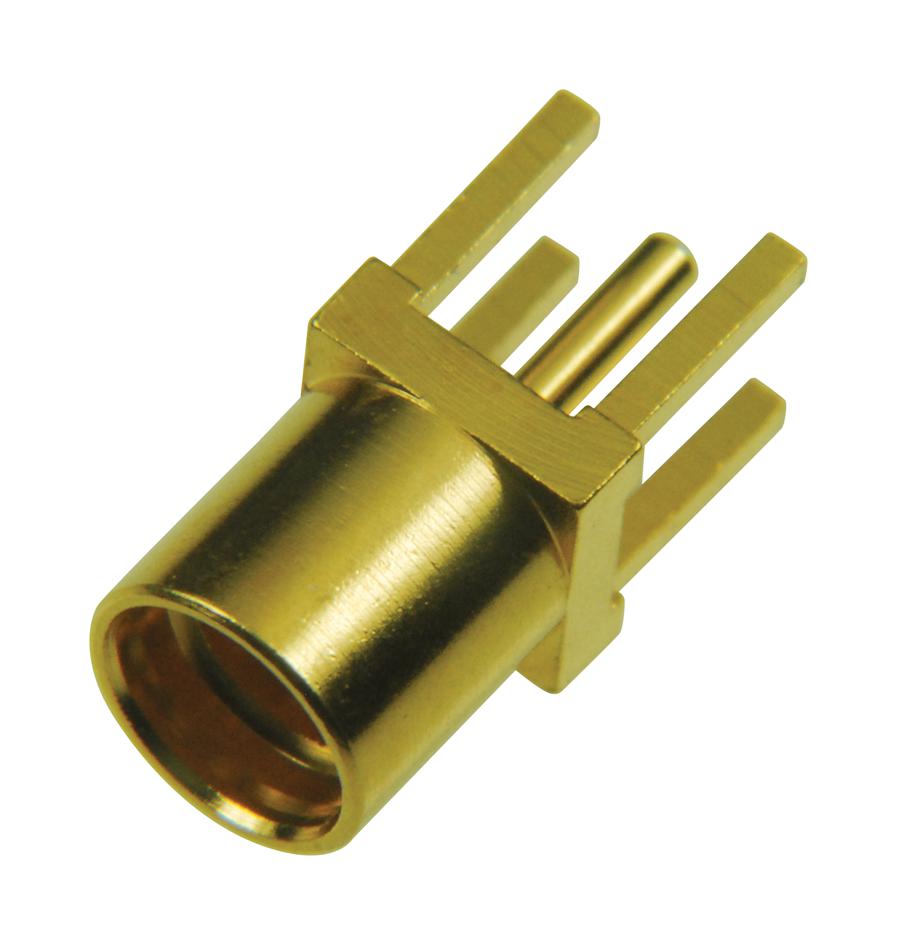

Buy the Cinch MMCX 1353701201 – Reliable RF Coaxial Connectors for Industrial Applications
Experience the superior performance and reliability of our high-quality RF coaxial connector. Perfect for demanding environments like aerospace, defense, and signal processing. Featuring a gold-plated brass body, 50 ohms impedance, and support for up to 6 GHz frequency, it ensures optimal signal integrity and durability through 500 cycles of use. Whether you need a PCB mount or cable connection, this connector provides excellent insulation, low VSWR, and resistance to harsh conditions. Order online now for fast delivery and trusted quality.
Order your Cinch Series MMCX 1353701201 today and give your electronic projects the dependable quality they deserve with high-frequency performance and durability.
