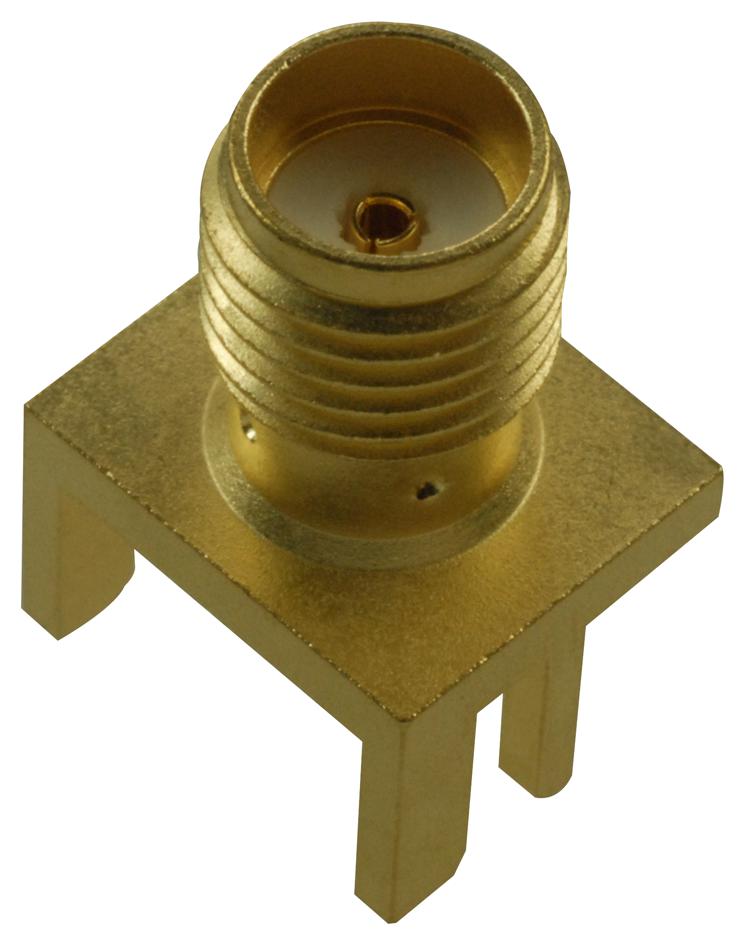

Johnson-Cinch Connectivity Solutions 1420701801 RF SMA connector
The 142-0701-801 is an end launch SMA RF coaxial connector designed for high-frequency applications. It is gold-plated with a round contact and is attached to a circuit board by inserting the board edge between the legs, then soldering the legs and center conductor to the corresponding pads. To achieve optimal high-frequency performance, the connector-to-board transition must be carefully adjusted to minimize Voltage Standing Wave Ratio (VSWR). The transition from coaxial to microstrip line requires adjusting trace widths 'A' and 'B' based on the circuit board thickness. Proper adjustment ensures low VSWR across a wide bandwidth. The connector offers an insulation resistance of 5000 megaohms and a minimum durability of 500 cycles. It is suitable for applications in consumer electronics, RF communications, and 5G wireless systems.
Johnson-Cinch Connectivity Solutions 1420701801 RF SMA connector Specifications:
- Impedance: 50 Ohms
- Frequency Range: 0-18 GHz
- VSWR: Typically less than 1.5 up to 18 GHz
- Insertion Loss: approximately 0.03-0.15 dB depending on cable type and frequency
- Insulation Resistance: 5000 megaohms minimum
- Contact Resistance: 3.0 milliohms initial, 4.0 milliohms after environmental exposure
- Dielectric Withstanding Voltage: 1000 VRMS at sea level
- RF High Potential Withstanding Voltage: 670 VRMS
- Working Voltage: 335 VRMS at sea level, 85 VRMS at 70K feet
- Durability: Minimum 500 connection cycles
- Mechanical Ratings: Engagement design MIL-C-39012, mating torque 7-10 in-oz
- Temperature Range: -65°C to +165°C
- Materials: Brass body with gold plating, beryllium copper contacts, PTFE insulators, silicone rubber seals
- Environmental Resistance: Corrosion resistant, MIL-STD-202 compliant
- Cable Compatibility: RG-178, RG-316, LMR cables, semi-rigid variants
Buy the Cinch Series RF SMA Connector High-Frequency Part Number 1420701801
Purchase the Cinch Connectivity Solutions RF SMA connector online today to ensure your high-frequency RF systems perform optimally. Designed for broadband applications, this high-quality coaxial connector features gold plating, low VSWR, and a robust construction capable of handling multiple connection cycles. Whether you are working on consumer electronics, RF communication systems, or 5G wireless infrastructure, this SMA connector provides reliable, efficient connectivity. Ordering online guarantees quick delivery, expert support, and competitive pricing for all your RF component needs.
Get Cinch Connectivity Solutions SMA connector today—built for high-frequency performance and long-lasting durability.
