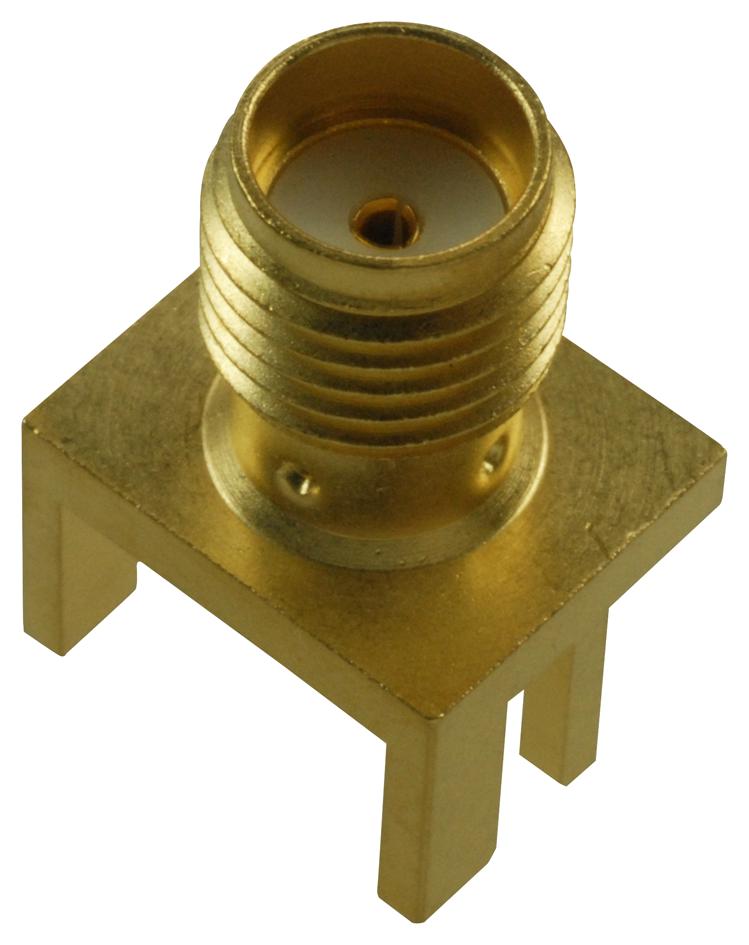

Johnson-Cinch Connectivity Solutions 1420701851 SMA Edge Launch Connector
The Johnson part number 142-0701-851 is a straight SMA edge launch jack receptacle connector designed for PCB mounting. It offers low VSWR characteristics up to 18 GHz with a 50-ohm impedance. Made with brass body, gold-plated finishes, and beryllium copper contacts, it ensures high reliability. The connector operates within -65°C to +165°C temperature range, suitable for microwave, RF, and wireless applications including 5G and industrial communication systems. Its precise construction ensures excellent performance in high-frequency environments and rugged conditions.
Johnson-Cinch Connectivity Solutions 1420701851 SMA Edge Launch Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-18 GHz
- Material: Brass body with gold plating
- Contacts: Beryllium copper, gold plated
- Insulator: PTFE fluorocarbon
- Temperature Range: -65°C to +165°C
- Dielectric Withstanding Voltage: 1000 VRMS at sea level
- RF High Potential Withstanding Voltage: 670 VRMS tested at 4 and 7 MHz
- Contact Resistance: Max 3.0 milliohms initially, 4.0 after environmental.
- Working Voltage: 335 VRMS at sea level, 85 VRMS at 70K feet
- Durability: Minimum 500 cycles
- Mating Torque: 7 to 10 inch-pounds
- Engagement Force: Max 2 inch-pounds
- Temperature Range: -65°C to +165°C
- Corrosion Resistance: MIL-STD-202, Method 101
- Vibration Resistance: MIL-STD-202, Method 204
- Shock Resistance: MIL-STD-202, Method 213
- Moisture Resistance: MIL-STD-202, Method 106
- Sealed with silicone rubber, compatible with RF and microwave systems
