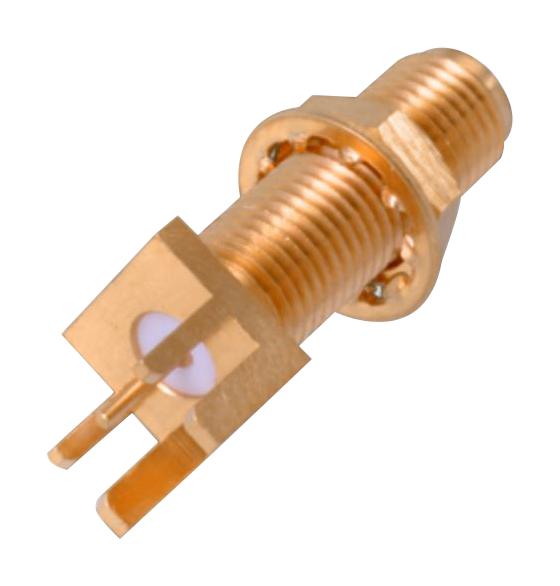

Johnson-Cinch Connectivity Solutions 1420711811 RF Connector
This RF connector is designed for high-frequency applications such as RF communications, industrial electronics, and 5G wireless networks. Made with brass bodies and gold-plated contacts, it ensures minimal signal loss and excellent durability. The connector operates over a frequency range of 0-18 GHz with low insertion loss, suitable for cable and panel connections. It features MIL-C-39012 engagement design, a maximum engagement force of 2 inch-pounds, and a durability of at least 500 cycles. Its temperature range spans from -65°C to +165°C, making it ideal for demanding environments.
Johnson-Cinch Connectivity Solutions 1420711811 RF Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-18 GHz
- Insertion Loss: Up to 0.15 dB tested at 6 GHz for straight connectors
- VSWR: Typically below 1.5 up to 18 GHz
- Materials: Brass body, gold or nickel plated contacts, PTFE insulators
- Temperature Range: -65°C to +165°C
- Working Voltage: 335 VRMS at sea level, 85 VRMS at 70K feet
- Insulation Resistance: 5000 megohms minimum
- Contact Resistance: Max 3 milliohms initially, 4 milliohms after environmental exposure
- Durability: Minimum 500 mating cycles
- Mechanical Ratings: Engagement torque 2 inch-pounds, mating torque 7-10 inch-pounds
- Environmental Ratings: MIL-STD-202, MIL-STD-304 compliant, resistant to vibration, shock, corrosion, moisture
Buy the Cinch SMA – Reliable RF Connector for Industrial Applications
Purchase Cinch SMA RF connectors online for high-frequency applications, including 5G, industrial electronics, and communications. Crafted with brass bodies and gold-plated contacts, these connectors provide excellent signal integrity and durable performance. Operating from 0 to 18 GHz with low insertion loss, they meet MIL standards for engagement and environmental resistance. Designed for cable and panel connections, they feature a robust construction suitable for harsh environments. Order now to ensure reliable, high-quality RF performance in your electronic systems.
Get Cinch SMA connectors today—built for precision and long-lasting durability in demanding RF environments.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1420711811?
You can click on the BUY or RFQ button to purchase 1420711811 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1420711811?
You can download the 1420711811 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1420711811?
Johnson-Cinch Connectivity Solutions
