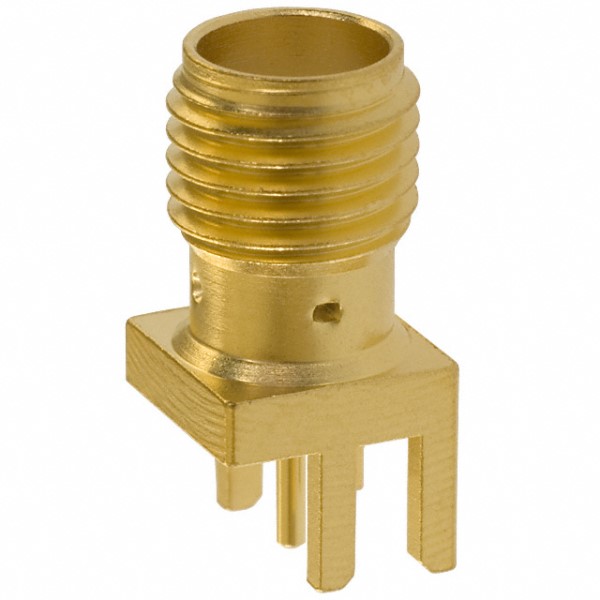

Johnson-Cinch Connectivity Solutions 1420711821 RF Connector
The SMA 50 Ohm End Launch Receptacle is designed for high-frequency applications up to 18 GHz, ensuring low VSWR and excellent electrical performance. Constructed with brass bodies and beryllium copper contacts, this connector features gold plating for enhanced corrosion resistance and reliable signal transmission. Suitable for circuit board attachment, it provides a low-profile, durable, and high-frequency capable interface with maximum durability of 500 cycles. Its environmental ratings meet MIL standards, supporting operation in extreme temperature ranges from -65°C to +165°C. This SMA connector facilitates optimal RF performance for advanced communication and testing equipment.
Johnson-Cinch Connectivity Solutions 1420711821 RF Connector Specifications:
- Impedance: 50 Ohms
- Frequency Range: 0-18 GHz
- VSWR: Dependent on application, typically below 1.5 up to 18 GHz
- Body Material: Brass per QQ-B-626, gold plated per MIL-G-45204
- Contact Material: Male - brass, female - beryllium copper, gold plated
- Insulation Resistance: 5000 megohms minimum
- Contact Resistance: 3.0 milliohms initial, 4.0 after environmental exposure
- Working Voltage: 335 Vrms at sea level, 85 Vrms at 70K feet
- Dielectric Withstanding Voltage: 1000 Vrms at sea level
- Temperature Range: -65°C to +165°C
- Durability: Minimum 500 cycles
- Mechanical ratings include mating torque of 7 to 10 inch-pounds, coupling proof torque of 15 inch-pounds
- Cable Retention: Axial force up to 45 lbs, torque up to 55 in-oz for .141 semi-rigid
- Environmental Ratings: MIL-C-39012 compliant including temperature, vibration, shock, corrosion, and moisture resistance
- Material: Bodies and mounting hardware brass, contacts beryllium copper, all gold or nickel plated as specified
- Seals: Silicone rubber, EMI gasket with conductive silicone rubber
- Compliance: MILSTD-202, MIL-C-39012
