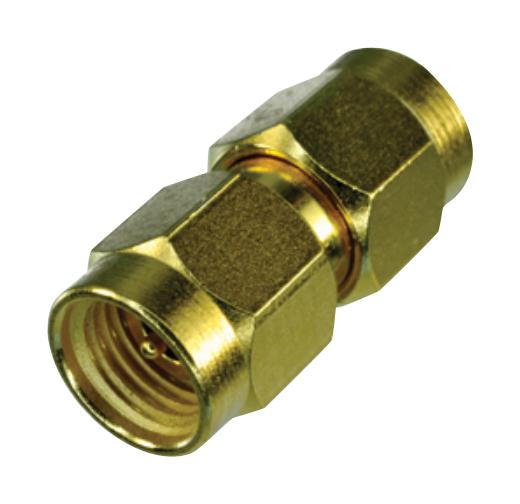

Johnson-Cinch Connectivity Solutions 1450901811 RF Connector
The SMK 50 Ohm Connectors (2.92mm) are precision, gold-plated semi-rigid coaxial adapters designed for high-frequency applications up to 40 GHz. Manufactured with stainless steel bodies and beryllium copper contacts, these connectors ensure excellent electrical performance with VSWR less than 0.20 at 40 GHz. They feature a hermetic seal, field replaceability, and robust MIL-STD-348 compliance. Suitable for microwave, RF, and military applications, they offer high durability, thermal stability from -65°C to +165°C, and low insertion loss for reliable signal transmission. Installation involves careful microstrip transition adjustments for optimal impedance matching.
Johnson-Cinch Connectivity Solutions 1450901811 RF Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-40 GHz
- VSWR: less than 0.20 at 40 GHz
- Dielectric Withstanding Voltage: 335 Vrms at sea level, 85 Vrms at 70K feet
- Working Voltage: 335 Vrms at sea level, 85 Vrms at 70K feet
- Insertion Loss: 0.03 dB tested at 10 GHz
- Contact Resistance: 3.0 milliohms initial, 8.0 milliohms after environmental testing
- Environmental Ratings: -65°C to +165°C, MIL-STD-202 compliant for shock, vibration, moisture, corrosion
- Durability: Minimum of 500 cycles
- Construction: Stainless steel body, gold-plated beryllium copper contacts, silicone rubber seals
- Size: 2.92mm semi-rigid connector, with a maximum sealing diameter of 0.355 inches
- Mechanical Ratings: Mating torque 7–10 inch-pounds, coupling proof torque minimum 15 inch-pounds
- Sealing: Hermetic, field replaceable for ease of maintenance
- Temperature Range: -65°C to +165°C
- RF Leakage: -90 dB at 2.5 GHz
- Certifications: MIL-STD-348, MIL-STD-202, and applicable military standards
Buy the Buy Emerson Connectivity 50 Ohm Connectors Part Number 1450901811 Online
Purchase the Emerson Connectivity RF Connector today for high-performance microwave applications up to 40 GHz. Designed with precision, it features gold-plated contacts, a hermetic seal, and a field replaceable design, ensuring durability and ease of maintenance. Ideal for military, aerospace, and advanced communication systems, this connector provides low insertion loss, excellent VSWR, and robust environmental resistance from -65°C to +165°C. Buy online now to ensure reliable, high-quality connections in your critical RF and microwave projects.
Buy Emerson Connectivity 1450901811 now and experience unmatched reliability and high-frequency performance for your microwave and RF systems.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1450901811?
You can click on the BUY or RFQ button to purchase 1450901811 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1450901811?
You can download the 1450901811 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1450901811?
Johnson-Cinch Connectivity Solutions
