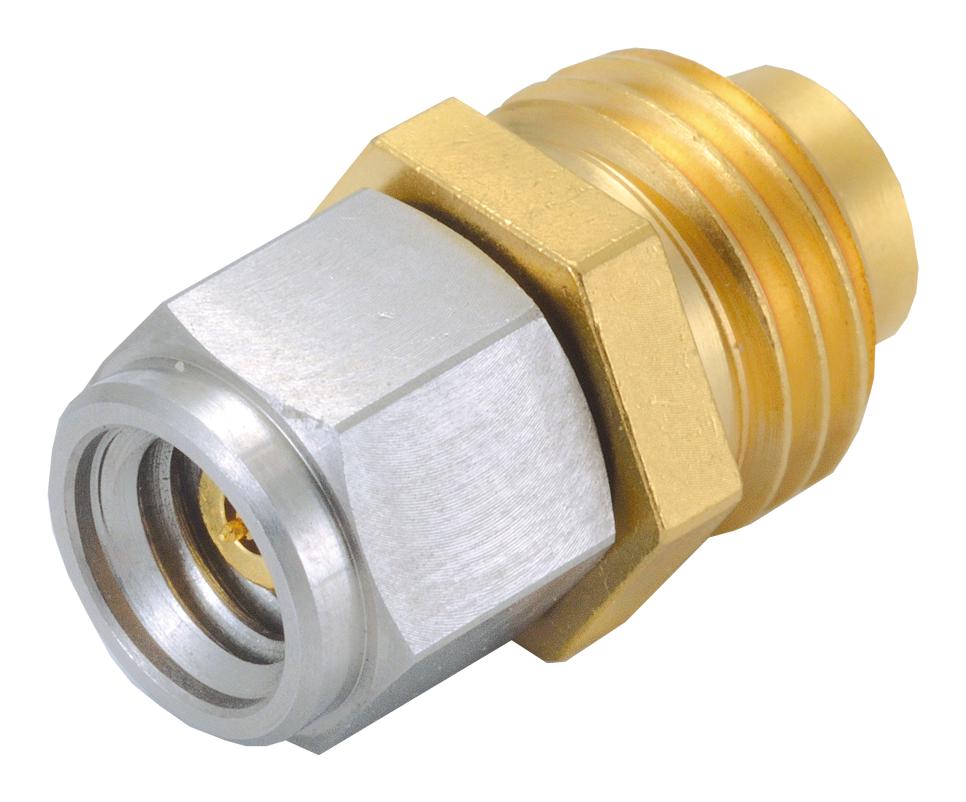

Johnson-Cinch Connectivity Solutions 1490801001 RF Connectors and Adapters
The 1.0 mm RF connectors and adapters series by Johnson offers high-performance, durable, and reliable solutions for millimeter wave applications up to 110 GHz. Designed for 5G testing, R&D, and semiconductor markets, these connectors feature a rugged design, no soldering required, and excellent electrical performance with low VSWR, insertion loss, and high return loss. They include end launch, sparkplug, panel mount connectors, and adapters, suitable for demanding testing environments requiring consistent, precise connections. The series ensures durability over 500 cycles and high repeatability for continuous use. Designed to meet industry standards, these connectors enable seamless integration into advanced RF systems.
Johnson-Cinch Connectivity Solutions 1490801001 RF Connectors and Adapters Specifications:
- Interface: 1.0 mm
- Bandwidth: DC to 110 GHz
- Impedance: 50 ohm
- Durability: Minimum 500 cycles
- VSWR: Max 1.38 at 110 GHz
- Return Loss: Max 15 dB from DC - 67 GHz; Max 10 dB from 67 - 110 GHz
- Insertion Loss: Typical 0.7 dB
- Connector Types: End launch, sparkplug, panel mount, adapters
- No soldering required
- Suitable for high-frequency testing and microwave applications
Buy the Johnson Series 1.0mm RF Connectors: 1490801001
Enhance your RF testing setup with Johnson's high-performance 1.0 mm connectors and adapters, engineered for accuracy, durability, and seamless integration. Perfect for applications up to 110 GHz, these connectors provide low VSWR, minimal insertion loss, and high repeatability, making them ideal for 5G research, R&D, and semiconductor testing. With no soldering needed and a rugged design, they ensure reliable connections in demanding environments. Explore our online store to get premium RF connectors that meet the highest industry standards for quality and performance.
Get Johnson 1490801001 today—built for precision, durability, and high-frequency RF testing up to 110 GHz.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1490801001?
You can click on the BUY or RFQ button to purchase 1490801001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1490801001?
You can download the 1490801001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1490801001?
Johnson-Cinch Connectivity Solutions
