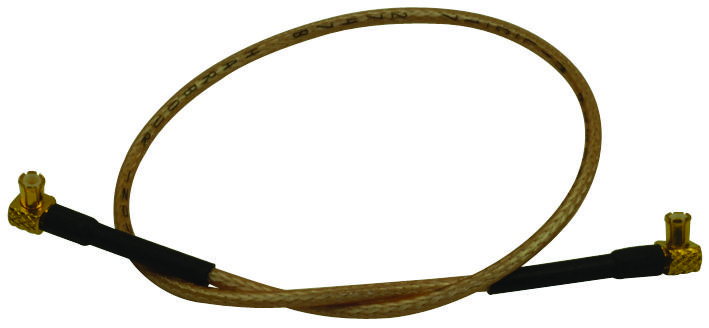

Johnson-Cinch Connectivity Solutions 4150015012 RF Cable Assembly
This cable assembly features MCX right angle connectors with fixed lengths, suitable for RF applications requiring reliable connections. The assembly includes RG-178 and RG-316 coaxial cables, both rated for 6 GHz frequency and capable of withstanding voltages up to 1000 Vrms. Designed with precision, it offers impedance matching at 50 ohms, ensuring minimal signal loss for high-frequency transmission. The cables are ideal for use in test equipment, antennas, and instrumentation where space is limited and secure, durable connections are essential for optimal performance.
Johnson-Cinch Connectivity Solutions 4150015012 RF Cable Assembly Specifications:
- Connector Type: MCX Right Angle
- Cable Types: RG-178, RG-316, RG-316 DS
- Impedance: 50 Ohms
- Frequency Range: Up to 6 GHz
- Withstanding Voltage: 1000 Vrms
- Working Voltage: 750 Vrms to 1000 Vrms depending on cable type
- Dielectric Material: PTFE (Teflon) for low loss
- Cable Lengths: Custom lengths, last three digits of part number indicate length in inches
- Applications: RF testing, instrumentation, aerospace, communications
- Temperature Range: -55°C to +85°C
- Certifications: RoHS Compliant
- Physical Dimensions: Standard length applies to the vertical centroid of right angle connectors
Buy the Buy Johnson Fixed Length Cable Assembly Part Number 4150015012 Online
Secure your high-frequency RF connections with Johnson's fixed length cable assembly featuring MCX right angle connectors. Designed for durability and minimal signal loss, this assembly supports up to 6 GHz and withstands voltages up to 1000 Vrms, making it ideal for test equipment, antennas, and instrumentation applications. Custom lengths are available, with the last three digits indicating the cable length in inches. Trust Johnson for reliable, professional-grade RF solutions delivered directly online for your convenience and project needs.
Order your Johnson Series4150015012 RF cable assembly today and ensure reliable high-frequency connections for your critical projects.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 4150015012?
You can click on the BUY or RFQ button to purchase 4150015012 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 4150015012?
You can download the 4150015012 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 4150015012?
Johnson-Cinch Connectivity Solutions
