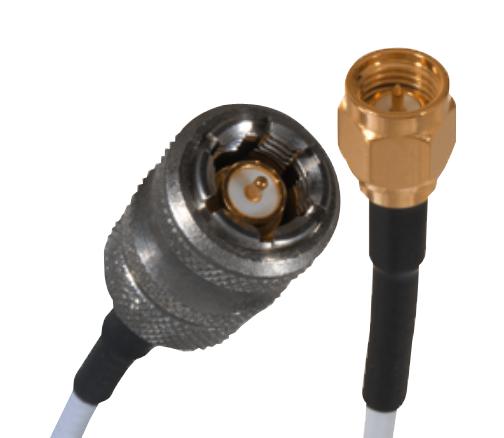

Johnson-Cinch Connectivity Solutions 4150081MM150 SMA RF Cable Assembly
The SMA straight hand-formable plug to SMA straight hand-formable plug RF cable assembly features high-quality SMA connectors on both ends. These semi-precision, sub-miniature connectors provide reliable broadband performance with a thread-on interface that ensures high mechanical strength, durability, and low Voltage Standing Wave Ratio (VSWR). The standard cable length is 5.9 inches (150mm), constructed with 0.086 conformable cable. It has an impedance of 50 ohms and operates at frequencies up to 26.5 GHz. The dielectric withstand voltage is 1000 VRMS, with a working voltage of 335 VRMS. This cable assembly is suitable for RF communications, industrial applications, and 5G wireless systems.
Johnson-Cinch Connectivity Solutions 4150081MM150 SMA RF Cable Assembly Specifications:
- Connector Type: SMA straight hand-formable plug
- Cable Type: 0.086 conformable
- Impedance: 50 ohms
- Frequency Range: up to 26.5 GHz
- Cable Length: 150 mm (5.9 inches)
- Dielectric Withstand Voltage: 1000 VRMS
- Working Voltage: 335 VRMS
- Connector Material: Brass with gold-plated contacts
- Operating Temperature: -55°C to +85°C
- Applications: RF communications, industrial, 5G wireless systems
Buy the Cinch Series SMA RF Connector: 4150081MM150
Get your SMA RF cable assembly with 0.086 conformable cable and 50 ohms impedance online today. Designed for frequencies up to 26.5 GHz, it features durable gold-plated SMA connectors for excellent signal integrity. Ideal for RF communications, industrial applications, and 5G wireless systems, this assembly offers reliable performance with a length of 150 mm. Easy to install, tested for dielectric withstand voltage of 1000 VRMS, and suitable for high-frequency applications. Purchase now and optimize your RF setups with confidence.
Order your Cinch Series SMA RF Connector assembly today and ensure reliable high-frequency performance for your wireless projects.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 4150081MM150?
You can click on the BUY or RFQ button to purchase 4150081MM150 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 4150081MM150?
You can download the 4150081MM150 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 4150081MM150?
Johnson-Cinch Connectivity Solutions
