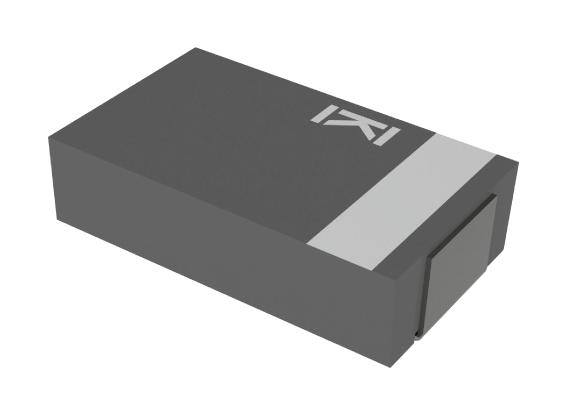

KEMET A720V477M002APE006 Polymer Aluminum Capacitor
The A720V477M002APE006 is a high-reliability polymer aluminum capacitor optimized for surface-mount applications. With a capacitance of 470 microfarads and a tolerance of 20%, it operates efficiently within a voltage of 2 VDC. Designed with a height maximum of 2.1mm, it features RoHS compliance, nickel palladium gold termination, and operates reliably over temperatures from -55°C to +105°C. This capacitor is suitable for power supply filtering, energy storage, and general electronic circuit applications requiring stable performance and compact size.
KEMET A720V477M002APE006 Polymer Aluminum Capacitor Specifications:
- Capacitance: 470 uF
- Capacitance Tolerance: 20%
- Voltage DC: 2 VDC
- Temperature Range: -55°C to +105°C
- Height Max: 2.1mm
- Dimensions: Length 7.3mm ±0.3mm, Width 4.3mm ±0.3mm, Height 1.9mm ±0.2mm
- Dissipation Factor: 6%
- Leakage Current: 56.4 uA (5 min at 25°C)
- Ripple Current: 8260 mA (rms at 100kHz)
- Resistance: 6 mOhms (LookHz 25°C)
- RoHS Compliant: Yes
- Termination: Nickel Palladium Gold
Buy the KEMET Series A720 Polymer Aluminum Capacitor: A720V477M002APE006
Order the KEMET A720V477M002APE006 polymer aluminum capacitor online today to ensure your circuit's stability and efficiency. Featuring a capacitance of 470 microfarads, rated at 2 volts DC, and operating across -55°C to +105°C, this compact surface-mount component is ideal for power filtering and energy storage applications. With RoHS compliance, nickel palladium gold termination, and high ripple current capacity, it guarantees durability and reliable performance in demanding electronic environments. Purchase now for fast delivery and seamless integration into your projects.
Buy KEMET A720V477M002APE006 now and experience unmatched reliability and performance for your surface-mount electronic applications.
Frequently Asked Questions
Where can I buy KEMET A720V477M002APE006?
You can click on the BUY or RFQ button to purchase A720V477M002APE006 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part A720V477M002APE006?
You can download the A720V477M002APE006 datasheet or visit the KEMET website for support.
Who is the manufacturer of A720V477M002APE006?
KEMET
