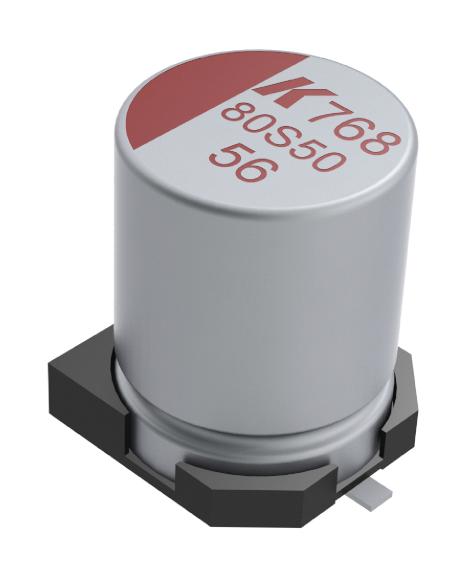

KEMET A768MS277M1GLAE022 Polymer Aluminum Capacitor
The KEMET A768MS277M1GLAE022 is a polymer aluminum capacitor designed for surface mount applications. Featuring a capacitance of 270µF and a voltage rating of 40VDC, this capacitor offers excellent performance in various electronic circuits. Its wide operating temperature range (-55°C to +125°C) and low ESR characteristics make it ideal for applications such as power supplies, DC-DC converters, and filtering circuits. The capacitor's robust construction and high reliability ensure long-term performance and stability.
KEMET A768MS277M1GLAE022 Polymer Aluminum Capacitor Specifications:
- Series: A768
- Dielectric: Polymer Aluminum
- Style: SMD Can
- Description: Surface Mount Polymer Aluminum
- Capacitance: 270 uF
- Capacitance Tolerance: 20%
- Voltage DC: 40 VDC, 46 VDC (Surge)
- Temperature Range: -55/+125°C
- Rated Temperature: 125°C
- Life: 2000 Hrs
- Resistance: 22 mOhms (100kHz 20C)
- Ripple Current: 2200 mAmps (100kHz 125C)
- Leakage Current: 2160 uA (2min 20°C)
- High Temperature Solder: No
- Packaging: T&R, 380mm
- Packaging Quantity: 400
- D: 10mm +/-0.5mm
- L: 12.2mm +/-0.5mm
- W: 10.3mm +/-0.2mm
- H: 10.3mm +/-0.2mm
- C: 11mm +/-0.2mm
- P: 4.6mm NOM
- R: 0.8 - 1.1mm
