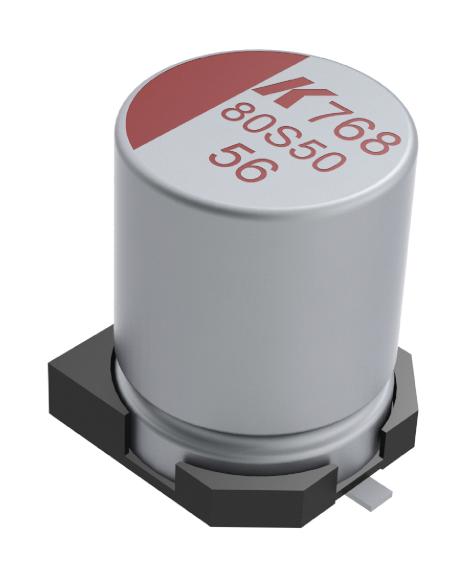

KEMET A768MS826M1JLAV027 Polymer Aluminum Capacitor
The A768 polymer aluminum capacitor offers a compact SMD design with an 82 uF capacitance rating, a voltage rating of 63 VDC, and a wide operating temperature range of -55°C to +125°C. Suitable for high-reliability applications, it features a low ESR of 27 mOhms at 100kHz and 20% capacitance tolerance. With a rated temperature of 125°C and a lifespan of 2000 hours, this component ensures durability in various demanding environments. Its RoHS compliant, halogen-free construction makes it ideal for modern electronic devices requiring compact, high-performance surface-mount capacitors.
KEMET A768MS826M1JLAV027 Polymer Aluminum Capacitor Specifications:
- Capacitance: 82 uF
- Capacitance Tolerance: 20%
- Voltage DC: 63 VDC, 72.4 VDC (Surge)
- Temperature Range: -55°C to +125°C
- Rated Temperature: 125°C
- Dimensions: Diameter 10mm ±0.5mm, 11mm ±0.2mm, 10.3mm ±0.2mm
- Equivalent Series Resistance: 27 mOhms at 100kHz / 20°C
- Ripple Current: 2000 mA at 125°C
- Leakage Current: 1033 uA (2 min at 20°C)
- Qualification: AEC-Q200, RoHS compliant, Halogen Free
Buy the YAGEO Series A768 Polymer Aluminum Capacitor: A768MS826M1JLAV027
Purchase the YAGEO polymer aluminum capacitor now and enjoy exceptional durability, high reliability, and excellent performance in your electronic designs. Featuring 82 uF capacitance, 63 VDC voltage rating, and operating temperatures from -55°C to +125°C, this surface-mount component is ideal for demanding applications requiring compact size and stability. Its low ESR of 27 mOhms and qualification standards such as AEC-Q200 ensure it meets the rigorous demands of modern electronic devices. Order online today for fast delivery and reliable quality assurance.
Buy YAGEO A768MS826M1JLAV027 now and experience unmatched reliability and performance with high-quality polymer aluminum capacitors.
Frequently Asked Questions
Where can I buy KEMET A768MS826M1JLAV027?
You can click on the BUY or RFQ button to purchase A768MS826M1JLAV027 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part A768MS826M1JLAV027?
You can download the A768MS826M1JLAV027 datasheet or visit the KEMET website for support.
Who is the manufacturer of A768MS826M1JLAV027?
KEMET
