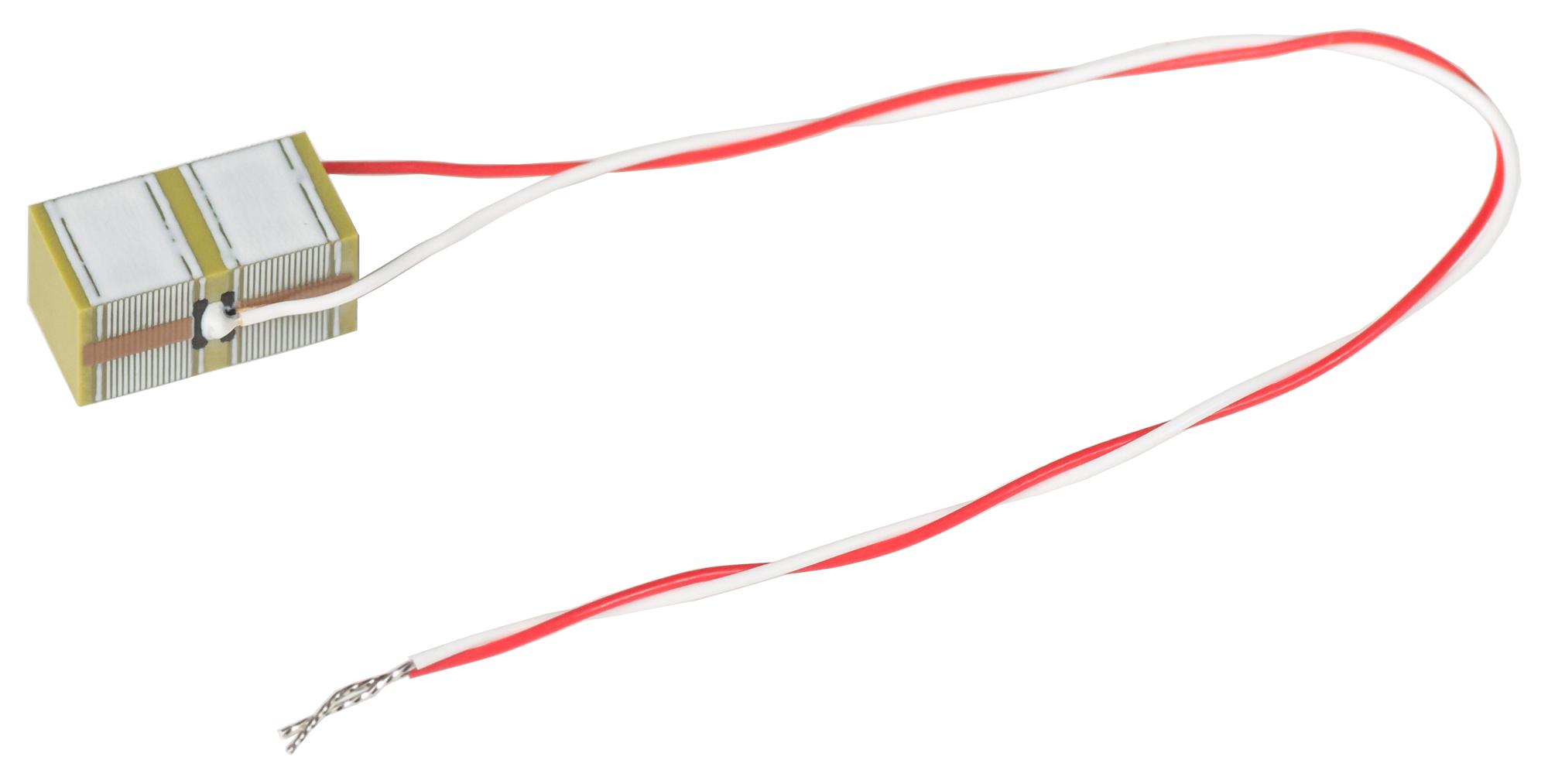

KEMET AE0505D04DH0F Piezoelectric Actuator
This piezoelectric actuator with resin coating offers precise displacement of 4.6 micrometers with a voltage of 150 VDC, featuring a capacitance of 0.27 uF and a resonant frequency of 261 kHz. It is RoHS and REACH compliant, has a tensile strength of 61 N, generated force of 610 N, and operates within a temperature range of -25°C to +85°C. Its compact dimensions include 5mm width, 5mm height, and a length of 100mm, making it suitable for various precision applications requiring reliable piezoelectric performance.
KEMET AE0505D04DH0F Piezoelectric Actuator Specifications:
- Series: AE
- Displacement: 4.6um +/-1.5um
- Voltage DC: 150 VDC
- Capacitance: 0.27 uF
- Capacitance Tolerance: 20%
- Resonant Frequency: 261 kHz
- Tensile Strength: 61 N
- Generated Force: 610 N
- Stiffness: 132.6 N/μm
- Insulation Resistance: 10 MOhms
- Temperature Range: -25°C to +85°C
- Dimensions: Width 5mm +/-0.1mm, Height 5mm +/-0.1mm, Length 100mm +/-5mm
- RoHS & REACH compliant
Buy the Buy KEMET Piezo Actuator Part Number AE0505D04D-HOF Online
Discover the high-quality KEMET piezoelectric actuator designed for precision applications. With a displacement of 4.6 micrometers and operating at 150 VDC, it provides reliable movement in compact form. Its resonance frequency of 261 kHz and tensile strength of 61 N ensure stable performance across its temperature range from -25°C to +85°C. The resin coating adds durability, making it ideal for medical, industrial, and automotive applications. Purchase online now to enhance your project's efficiency with this advanced piezo component.
Buy KEMET AE0505D04D-HOF now and experience unmatched reliability and precise motion control with this high-performance piezoelectric actuator.
Frequently Asked Questions
Where can I buy KEMET AE0505D04DH0F?
You can click on the BUY or RFQ button to purchase AE0505D04DH0F from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part AE0505D04DH0F?
You can download the AE0505D04DH0F datasheet or visit the KEMET website for support.
Who is the manufacturer of AE0505D04DH0F?
KEMET
