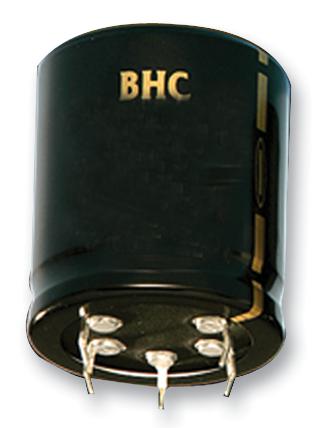

KEMET ALC10C471EE400 Aluminum Electrolytic Capacitor
The aluminum electrolytic capacitor features a snap-in design with a capacitance of 470 uF, rated at 400 VDC with a surge voltage of 440 VDC. It operates within a temperature range of -40°C to +85°C, rated at 85°C, and offers a shelf life of 156 weeks. The component has a series resistance of 258 mOhms at 100Hz 20°C, with ripple current capacities of 3 Amps at 100Hz and 5.49 Amps at 10kHz. It is RoHS compliant, weighs 80g, and includes a 4-pin lead for easy integration.
KEMET ALC10C471EE400 Aluminum Electrolytic Capacitor Specifications:
- Capacitance: 470 uF
- Voltage Rating: 400 VDC, Surge Voltage: 440 VDC
- Temperature Range: -40°C to +85°C
- Rated Temperature: 85°C
- Dimensions: Diameter 40mm, Lead Length includes sleeving
- Leakage Current: 1128 uA at 20°C for 5 minutes
- Ripple Current: 3 Amps at 100Hz, 5.49 Amps at 10kHz
- Series Resistance: 258 mOhms (100Hz, 20°C), 168 mOhms (10kHz, 20°C)
- Shelf Life: 156 weeks
- Weight: 80g
- RoHS Compliant: Yes
- Lead Type: 4 Pin, Snap-In
Buy the YAGEO ALC10C471EE400 – Reliable Aluminum Electrolytic Capacitor for Industrial Applications
Purchase the aluminum electrolytic capacitor with 470 microfarad capacitance and 400 volts DC rating online today. Engineered for durability, it operates efficiently in a temperature range of -40°C to +85°C, making it ideal for industrial and electronic applications. Its snap-in design simplifies installation, while its high ripple current capacity ensures reliable performance under demanding conditions. With a long shelf life of 156 weeks and compliance with RoHS standards, this component offers quality and longevity for your electronic projects. Buy now to ensure your equipment's optimal operation.
Buy YAGEO ALC10C471EE400 now and experience unmatched reliability and robust performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy KEMET ALC10C471EE400?
You can click on the BUY or RFQ button to purchase ALC10C471EE400 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part ALC10C471EE400?
You can download the ALC10C471EE400 datasheet or visit the KEMET website for support.
Who is the manufacturer of ALC10C471EE400?
KEMET
