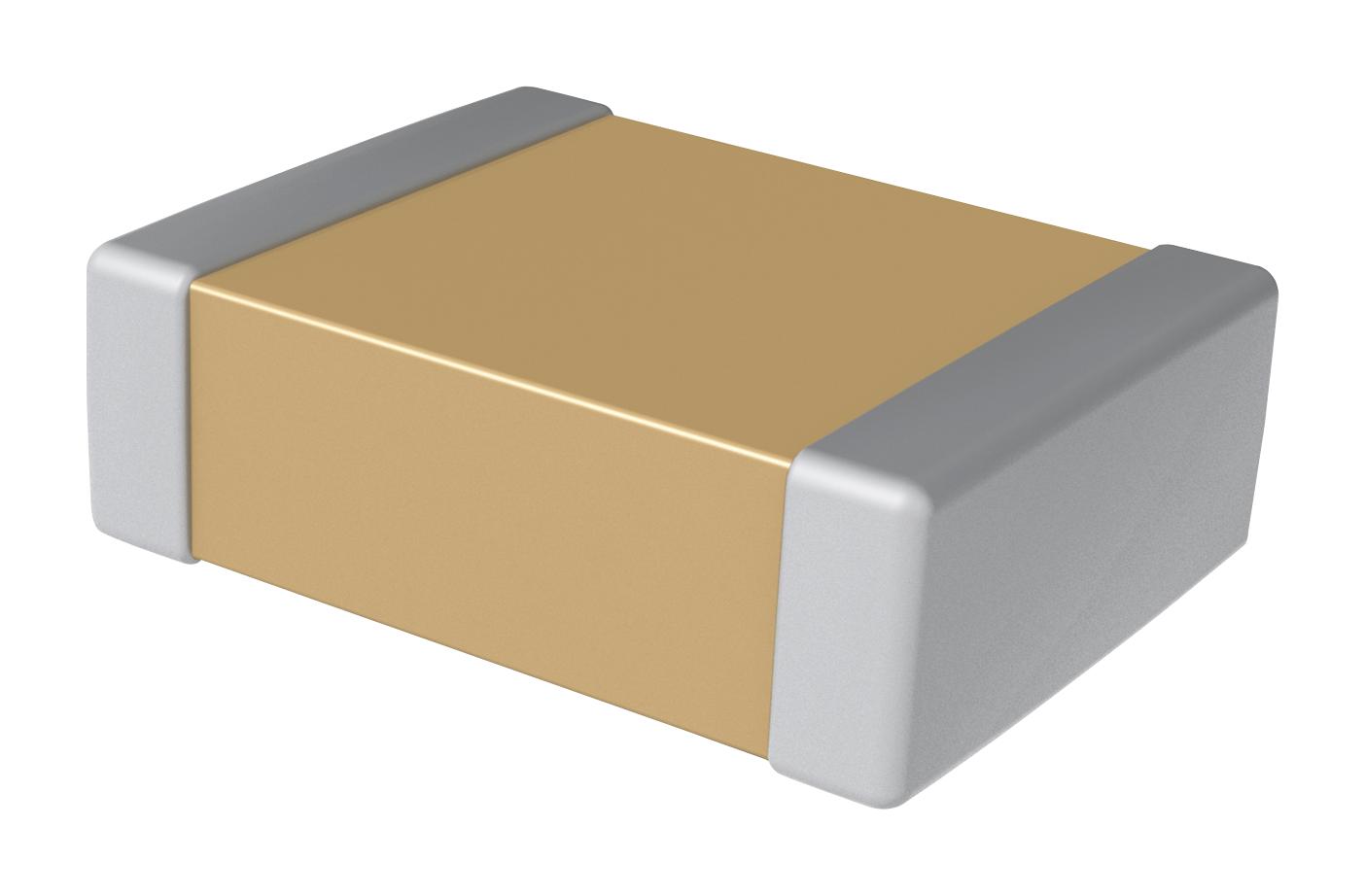

KEMET C0402C221J2GACAUTO Ceramic Capacitor
The KEMET C0402C221J2GACAUTO is a multilayer ceramic capacitor (MLCC) designed for automotive applications. This 0402-sized component offers a capacitance of 220pF, a voltage rating of 200VDC, and a 5% capacitance tolerance. Its ultra-stable and low-loss characteristics make it suitable for demanding applications requiring high reliability and performance. The AEC-Q200 qualification ensures its robustness and suitability for automotive environments. It is packaged in tape and reel format with 10,000 pieces per reel.
KEMET C0402C221J2GACAUTO Ceramic Capacitor Specifications:
- Series: SMD Auto C0G
- Style: SMD Chip
- Description: SMD, MLCC, Ultra-Stable, Low Loss, Automotive Grade
- Features: Ultra-Stable, Low Loss, Automotive Grade
- Capacitance: 220 pF
- Measurement Condition: 1 MHz 1.0Vrms
- Capacitance Tolerance: 5%
- Voltage DC: 200 VDC
- Dielectric Withstanding Voltage: 500 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC: 30 ppm/C, 1MegaHz 1.0Vrms
- Dissipation Factor: 0.1% 1 MHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- Chip Size L: 1mm +/-0.05mm
- Chip Size W: 0.5mm +/-0.05mm
- Chip Size T: 0.5mm +/-0.05mm
- Chip Size S: 0.3mm MIN
- Chip Size B: 0.3mm +/-0.1mm
- Termination: Tin
- Marking: No
- Qualifications: AEC-Q200
- AEC-Q200: Yes
- Component Weight: 1060 ug
- Shelf Life: 78 Weeks
- MSL: 1
- Packaging: T&R, 180mm, Paper Tape
- Packaging Quantity: 10000
Buy the C0402C221J2GACAUTO KEMET Ceramic Capacitor | myMectronic
Purchase the KEMET C0402C221J2GACAUTO securely and efficiently for your electronic projects.
Buy Now
Frequently Asked Questions
Where can I buy KEMET C0402C221J2GACAUTO?
You can click on the BUY or RFQ button to purchase C0402C221J2GACAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C0402C221J2GACAUTO?
You can download the C0402C221J2GACAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C0402C221J2GACAUTO?
KEMET
