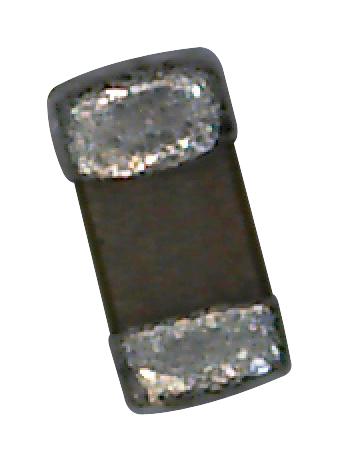

KEMET C0402C681K5RACTU Ceramic Capacitor
This KEMET ceramic capacitor uses X7R dielectric, providing reliable temperature stability up to 125°C. Suitable for bypass, decoupling, and frequency circuits, it maintains capacitance with minimal variation across -55°C to +125°C, limited to ±15%. Its 0402 size (1mm x 0.5mm x 0.5mm) makes it ideal for space-constrained designs. With a capacitance of 680 pF ±10% and a voltage rating of 50 VDC, it is lead-free, RoHS, and REACH compliant. This durable, temperature-stable capacitor ensures consistent performance in various electronic applications.
KEMET C0402C681K5RACTU Ceramic Capacitor Specifications:
- Capacitance: 680 pF ±10%
- Voltage Rating: 50 VDC
- Dielectric: X7R
- Temperature Range: -55°C to +125°C
- Dimensions: 0402 (1mm x 0.5mm x 0.5mm)
- Termination: Tin
- Dissipation Factor: 2.50% at 1kHz 25°C
- Aging Rate: 3% loss per decade hour
- Insulation Resistance: 100 GOhms
- RoHS: Yes
- REACH: Compliant
- Packaging: Tape & Reel, 180mm paper tape, 10,000 units
Buy the Buy KEMET X7R Ceramic Capacitor Part Number C0402C681K5RACTU Online
Purchase the KEMET ceramic capacitor with X7R dielectric online today for your electronic projects. This 680 pF, 50 VDC rated component offers excellent temperature stability from -55°C to +125°C, ensuring consistent performance across various operating conditions. Its compact 0402 size makes it ideal for space-constrained applications, and it is RoHS and REACH compliant. Suitable for bypass, decoupling, and frequency circuits, it provides reliable, long-term stability and low dissipation factor, making it an essential component for modern electronics design.
Order your KEMET Series C0402C681K5RACTU temperature stable ceramic capacitor today and ensure reliable performance in your electronic circuits.
Frequently Asked Questions
Where can I buy KEMET C0402C681K5RACTU?
You can click on the BUY or RFQ button to purchase C0402C681K5RACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C0402C681K5RACTU?
You can download the C0402C681K5RACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C0402C681K5RACTU?
KEMET
