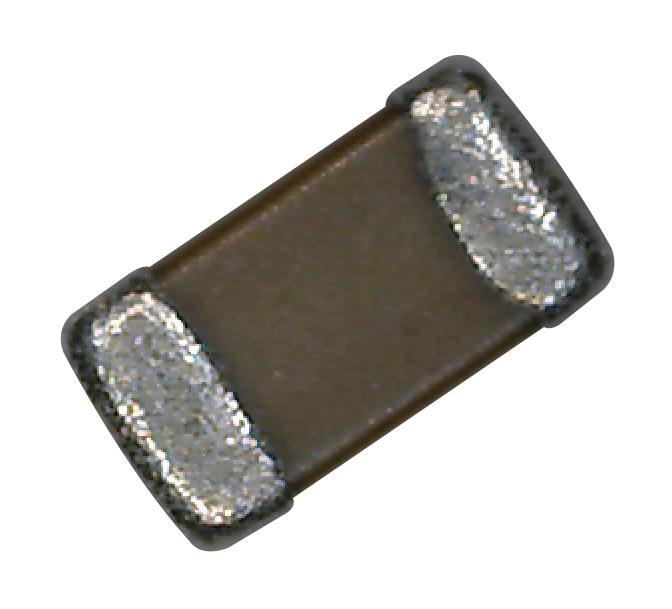

KEMET C0603C222K3RACTU Ceramic Capacitor
The KEMET C0603C222K3RACTU is a multilayer ceramic capacitor (MLCC) designed for surface mount technology (SMT) applications. It exhibits excellent temperature stability (X7R dielectric) and is suitable for decoupling, filtering, and timing circuits. The capacitor's small size and robust construction make it ideal for space-constrained designs in consumer electronics, industrial equipment, and automotive applications. It is RoHS compliant and features a tin termination for reliable soldering.
KEMET C0603C222K3RACTU Ceramic Capacitor Specifications:
- Series: SMD Comm X7R
- Style: SMD Chip
- Description: SMD, MLCC, Temperature Stable, Class II
- Features: Temperature Stable, Class II
- Termination: Tin
- Marking: No
- AEC-Q200: No
- Component Weight: 4800 ug
- Shelf Life: 78 Weeks
- MSL: 1
- Chip Size L: 1.6mm +/-0.15mm
- Chip Size W: 0.8mm +/-0.15mm
- Chip Size T: 0.8mm +/-0.07mm
- Chip Size S: 0.7mm MIN
- Chip Size B: 0.35mm +/-0.15mm
- Capacitance: 2200 pF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 25 VDC
- Dielectric Withstanding Voltage: 62.5 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 15%, 1kHz 1.0Vrms
- Dissipation Factor: 3.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- Packaging: T&R, 180mm, Paper Tape
- Packaging Quantity: 4000
