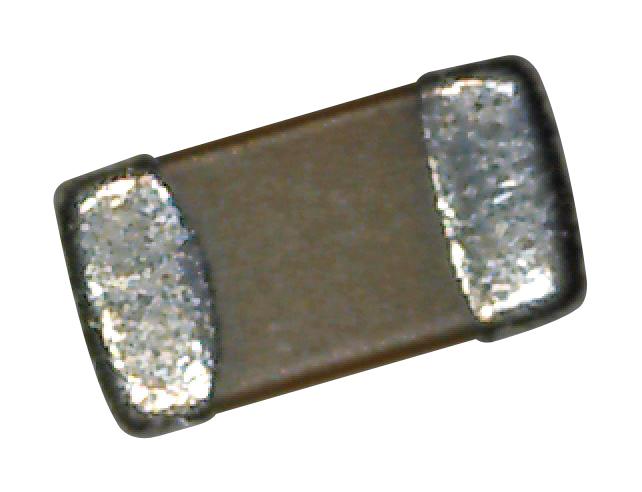

KEMET C0603C223J5RACTU Ceramic Capacitor
The KEMET C0603C223J5RAC TU is a 0.022uF multilayer ceramic capacitor designed for surface mount (SMD) applications. It utilizes an X7R dielectric, providing excellent capacitance stability over temperature. This capacitor is ideal for decoupling, filtering, and timing circuits in various electronic devices, including portable electronics, automotive systems, and industrial equipment. Its small size and robust performance make it a versatile choice for modern circuit designs. KEMET’s commitment to quality ensures reliable performance and long-term stability.
KEMET C0603C223J5RACTU Ceramic Capacitor Specifications:
- Series: SMD Comm X7R
- Style: SMD Chip
- Description: SMD, MLCC, Temperature Stable, Class II
- Features: Temperature Stable, Class II
- Termination: Tin
- Marking: No
- AEC-Q200: No
- Component Weight: 4800 ug
- Shelf Life: 78 Weeks
- MSL: 1
- Chip Size L: 1.6mm +/-0.15mm
- Chip Size W: 0.8mm +/-0.15mm
- Chip Size T: 0.8mm +/-0.07mm
- Chip Size S: 0.7mm MIN
- Chip Size B: 0.35mm +/-0.15mm
- Capacitance: 0.022 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 5%
- Voltage DC: 50 VDC
- Dielectric Withstanding Voltage: 125 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC: 15%, 1kHz 1.0Vrms
- Applied TCC: X7R
- Dissipation Factor: 2.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 45.4545 GOhms
- Packaging: T&R, 180mm, Paper Tape
- Packaging Quantity: 4000
Buy the C0603C223J5RAC TU KEMET Ceramic Capacitor | myMectronic
Purchase the KEMET C0603C223J5RAC TU securely and efficiently for your electronics projects.
Buy Now
Frequently Asked Questions
Where can I buy KEMET C0603C223J5RACTU?
You can click on the BUY or RFQ button to purchase C0603C223J5RACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C0603C223J5RACTU?
You can download the C0603C223J5RACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C0603C223J5RACTU?
KEMET
