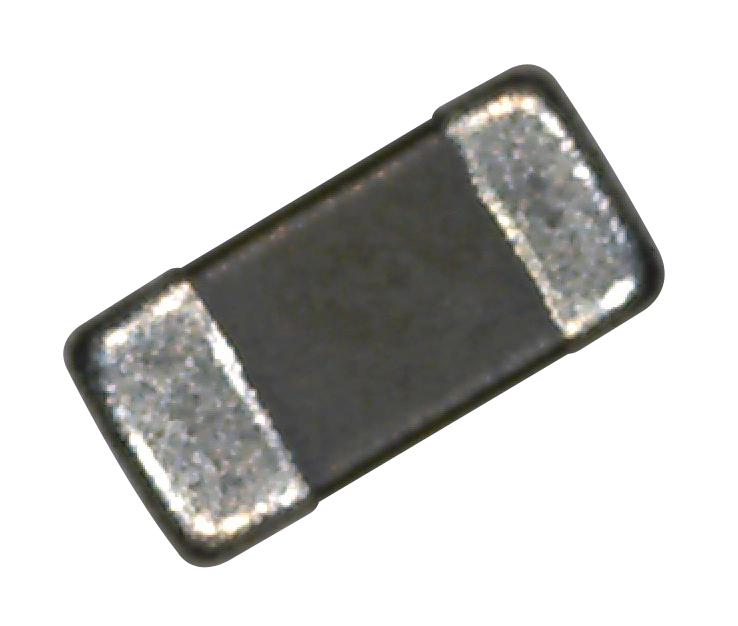

KEMET C0603C335M9PACTU Ceramic Capacitor
Kemet's C603C335M9PACTU is a 3.3 uF ceramic capacitor with an X5R dielectric, functioning reliably within a -55°C to +85°C temperature range. Designed as a Class II ceramic component, it is ideal for bypass and decoupling, frequency discrimination, and signal filtering. Its small 0603 package size ensures easy surface-mount installation, with a voltage rating of 6.3 VDC and a capacitance tolerance of 20%. Features include temperature stability, low ESR and ESL, and minimal piezoelectric noise. Suitable for various electronic applications requiring stable, high-performance capacitors.
KEMET C0603C335M9PACTU Ceramic Capacitor Specifications:
- Capacitance: 3.3 uF
- Voltage Rating: 6.3 VDC
- Temperature Range: -55°C to +85°C
- Dielectric: X5R
- Size: 0603 (L 6mm ±0.15mm, W 0.8mm ±0.15mm, T 0.8mm ±0.10mm)
- Capacitance Tolerance: ±20%
- Dissipation Factor: 10.00% at 1kHz 25°C
- Insulation Resistance: 30 MOhms
- Temperature Coefficient: X5R
- Packaging: T&R, 180mm Paper Tape, 4000 pcs
- RoHS Compliant: Yes
- Termination: Tin-plated
- Operating Temperature: -55°C to +85°C
- Aging Rate: 5% Loss per decade hour
- Dielectric Voltage: 15.75 V
Buy the KEMET C603C335M9PACTU – Reliable Ceramic Capacitor for Industrial Applications
Purchase the KEMET C603C335M9PACTU ceramic capacitor online today. Its 3.3 microfarad capacitance, 6.3V voltage rating, and X5R dielectric make it ideal for bypass, decoupling, and filtering in electronic circuits. With a small 0603 package size, it offers excellent temperature stability from -55°C to +85°C, low ESR and ESL, and superior reliability. Secure this high-performance surface-mount component now to ensure your electronic projects are powered by durable, high-quality capacitors for optimal results.
Order your KEMET Series C603C335M9PACTU today and give your projects the dependable quality they deserve with high stability and low ESR performance.
Frequently Asked Questions
Where can I buy KEMET C0603C335M9PACTU?
You can click on the BUY or RFQ button to purchase C0603C335M9PACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C0603C335M9PACTU?
You can download the C0603C335M9PACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C0603C335M9PACTU?
KEMET
