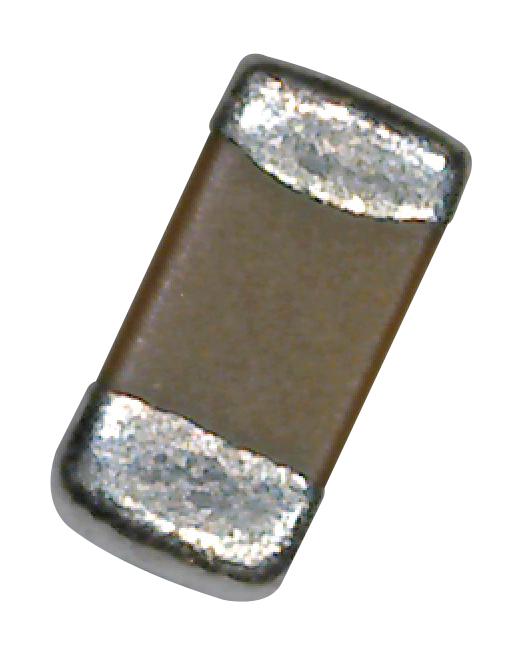

KEMET C0603C393K3RACTU SMD Ceramic Capacitor
The KEMET C0603C393K3RACTU is a surface mount device (SMD) multilayer ceramic capacitor designed for a wide range of electronic applications. This X7R capacitor exhibits excellent temperature stability, ensuring consistent performance across a broad temperature range of -55°C to +125°C. With a capacitance of 0.039uF and a voltage rating of 25VDC, it's suitable for decoupling, filtering, and timing circuits in consumer electronics, automotive systems, and industrial equipment. The capacitor's compact 0603 size minimizes board space requirements while maintaining reliable performance. KEMET's commitment to quality ensures a robust and dependable component for demanding applications.
KEMET C0603C393K3RACTU SMD Ceramic Capacitor Specifications:
- Series: SMD Comm X7R
- Style: SMD Chip
- Description: SMD, MLCC, Temperature Stable, Class II
- Features: Temperature Stable, Class II
- RoHS: Yes
- Termination: Tin
- Marking: No
- AEC-Q200: No
- Component Weight: 4800 ug
- Shelf Life: 78 Weeks
- MSL: 1
- Chip Size L: 1.6mm +/-0.15mm
- Chip Size W: 0.8mm +/-0.15mm
- Chip Size T: 0.8mm +/-0.07mm
- Chip Size S: 0.7mm MIN
- Chip Size B: 0.35mm +/-0.15mm
- Capacitance: 0.039 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 25 VDC
- Dielectric Withstanding Voltage: 62.5 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC: 15%, 1kHz 1.0Vrms
- Applied TCC: X7R
- Dissipation Factor: 3.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 25.641 GOhms
- Packaging: T&R, 180mm, Paper Tape
- Packaging Quantity: 4000
