A Premier B2B Part Search

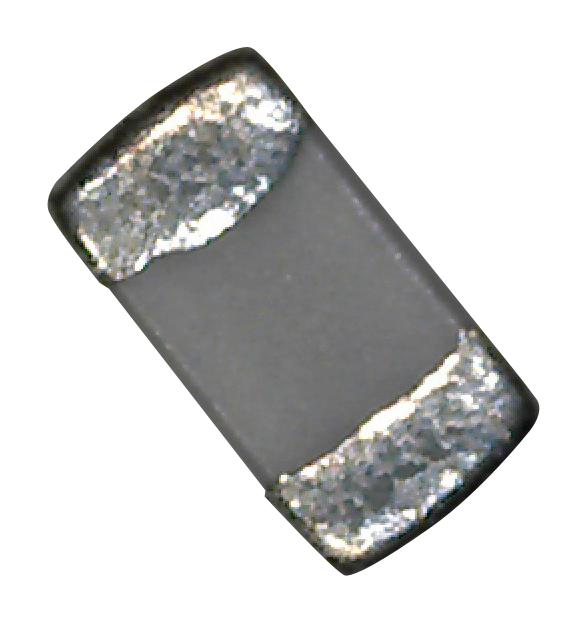

KEMET C0603C560F5GACTU Ceramic Capacitor
This is a 56 pF ceramic chip capacitor designed for precise, low-loss, and ultra-stable applications. It features a 1% capacitance tolerance, 50 VDC voltage rating, and a compact 0603 size. The capacitor has excellent dielectric withstanding voltage of 125 VOC, low dissipation factor of 0.1%, and stable performance over a temperature range of -55°C to +125°C. Suitable for high-frequency and precision circuits, it offers reliable performance with RoHS compliance, tin termination, and robust insulation resistance of 100 GOhms, ideal for demanding electronic applications.
KEMET C0603C560F5GACTU Ceramic Capacitor Specifications:
- Capacitance: 56 pF
- Capacitance Tolerance: 1%
- Voltage DC: 50 VDC
- Dielectric Withstanding Voltage: 125 VOC
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 0.1% at 1 MHz 1.0Vrms
- Size: 0603 (L 16mm ±0.15mm)
- Insulation Resistance: 100 GOhms
- Temperature Coefficient: COG
- Package: T&R, 180mm, Paper Tape, quantity: 4000
- RoHS Compliant: Yes
- Termination: Tin
- Shelf Life: 78 Weeks
- Material: Ceramic, Ultra-Stable, Low Loss
Buy the KEMET CO603C560F5GACU – Reliable Ceramic Capacitor for Industrial Applications
Discover the reliability and precision of the ceramic capacitor designed for high-frequency and precision electronic applications. Featuring 56 pF capacitance, 1% tolerance, and a 50 VDC voltage rating, this compact 0603 package provides ultra-stable performance across a wide temperature range. Its low dissipation factor of 0.1% and high insulation resistance of 100 GOhms ensure consistent operation in demanding environments. Perfect for circuit design, high-frequency modules, and industrial electronics, made with RoHS-compliant materials, and available for quick online purchase.
Get KEMET CO603C560F5GACU today—built for precision and long-lasting durability in demanding electronic circuits.
Frequently Asked Questions
Where can I buy KEMET C0603C560F5GACTU?
You can click on the BUY or RFQ button to purchase C0603C560F5GACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C0603C560F5GACTU?
You can download the C0603C560F5GACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C0603C560F5GACTU?
KEMET
