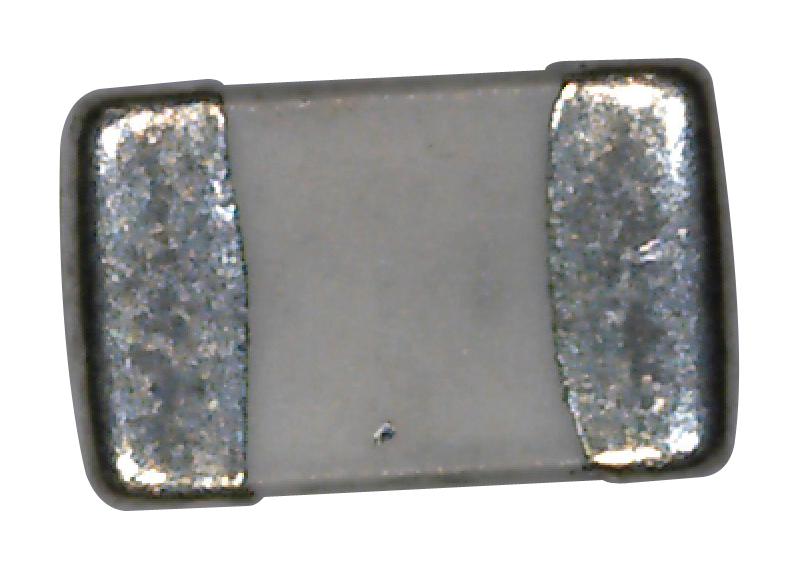

KEMET C0805C180K5GACTU Ceramic Capacitor
This surface-mount ceramic capacitor features ultra-stability and low loss characteristics, suitable for high-frequency and precision electronic applications. With a capacitance of 18 pF, it operates at 50 VDC, making it ideal for RF circuits, filtering, and decoupling in dense PCB layouts. The compact 0805 size, combined with a temperature range from -55°C to +125°C, ensures reliability in harsh environments. Designed with tin termination and RoHS compliance, it provides excellent insulation resistance and minimal dielectric loss, suitable for critical high-frequency applications demanding stability and durability.
KEMET C0805C180K5GACTU Ceramic Capacitor Specifications:
- Size: 0805 (2mm x 1.25mm x 0.5mm)
- Capacitance: 18 pF
- Capacitance Tolerance: 10%
- Voltage DC: 50 VDC
- Dielectric Withstanding Voltage: 125 VOC
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 0.1% at 1 MHz 1.0Vrms
- Insulation Resistance: 100 GOhms
- Marking: No marking
- RoHS Compliant: Yes
- Termination: Tin
- Packages: T&R, Paper Tape, 180mm
- Component Weight: 11mg
- Shelf Life: 78 weeks
- MSL: 1
- Thermal Coefficient: COG
- Aging Rate: 0% Loss per Decade Hour
Buy the KEMET C0805C180K5GACTU – Reliable Ceramic Capacitor for Industrial Applications
Order the KEMET C0805C180K5GACTU ceramic capacitor online today and ensure your electronic designs benefit from ultra-stable, low-loss performance. This high-quality SMD component features 18 pF capacitance with a 50 VDC working voltage, making it perfect for RF, filtering, and decoupling applications. Its compact 0805 size fits seamlessly into dense PCB layouts, while RoHS compliance guarantees environmental safety. Reliable with a broad temperature range from -55°C to +125°C, it offers excellent insulation resistance and minimal dielectric loss, ideal for critical high-frequency circuits demanding stability and durability.
Get KEMET C0805C180K5GACTU today—built for precision and long-lasting durability in your electronic projects.
Frequently Asked Questions
Where can I buy KEMET C0805C180K5GACTU?
You can click on the BUY or RFQ button to purchase C0805C180K5GACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C0805C180K5GACTU?
You can download the C0805C180K5GACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C0805C180K5GACTU?
KEMET
