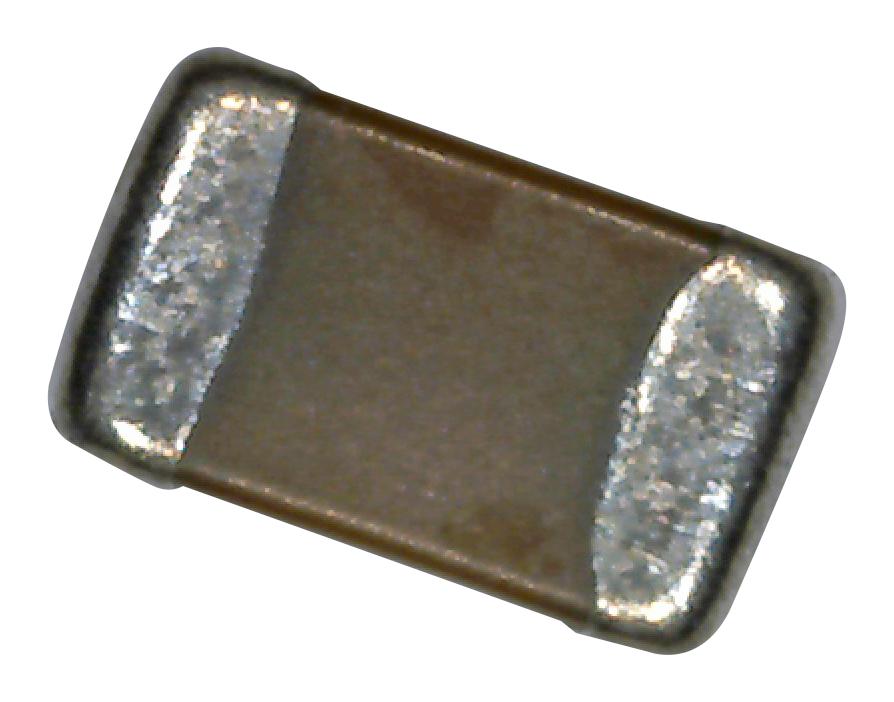

KEMET C0805C471JDRACTU High Voltage Ceramic Capacitor
This high-voltage ceramic capacitor features a 470 pF capacitance with 5% tolerance, rated for 1000V. Designed in a compact 0805 SMD package, it offers excellent temperature stability with a range from -55°C to +125°C. Its X7R dielectric ensures reliable performance in demanding applications, providing low dissipation factor of 2.5% and high insulation resistance of 100 GOhms. Suitable for high-voltage circuits requiring stability and durability, this MLCC component is RoHS compliant with tin termination for easy soldering and assembly.
KEMET C0805C471JDRACTU High Voltage Ceramic Capacitor Specifications:
- Capacitance: 470 pF
- Capacitor Type: Ceramic MLCC
- Series: Commercial-(CxxxxC)
- Style: SMD Chip
- Chip Size: 0805
- Voltage Rating: 1000 VDC
- Dielectric: X7R
- Temperature Range: -55°C to +125°C
- Dimensions: Length 2mm ±0.2mm, Width 1.25mm ±0.2mm, Thickness 0.75mm MIN
- Termination: Tin
- Dissipation Factor: 2.5%
- Insulation Resistance: 100 GOhms
- Aging Rate: 3% Loss/Decade Hour
- RoHS: Yes
- Packaging: T&R, 180mm, Plastic Tape, Quantity: 2500
- Temperature Coefficient: X7R
Buy the KEMET Series Commercial High Voltage Capacitor: C0805C471JDRACTU
Enhance your high-voltage circuit designs with this reliable ceramic capacitor featuring a 470 pF capacitance and 1000V rating. Manufactured with X7R dielectric, it offers exceptional temperature stability and low dissipation factor, making it perfect for demanding electronic applications. Its 0805 size ensures easy assembly, while RoHS compliance guarantees environmental safety. The tin termination enhances solderability, and the wide temperature range from -55°C to +125°C allows versatile usage in various conditions. Order now for high reliability and performance.
Buy KEMET high-voltage ceramic capacitor C0805C471JDRACTU now and ensure reliable performance in demanding high-voltage circuits with excellent stability.
Frequently Asked Questions
Where can I buy KEMET C0805C471JDRACTU?
You can click on the BUY or RFQ button to purchase C0805C471JDRACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C0805C471JDRACTU?
You can download the C0805C471JDRACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C0805C471JDRACTU?
KEMET
