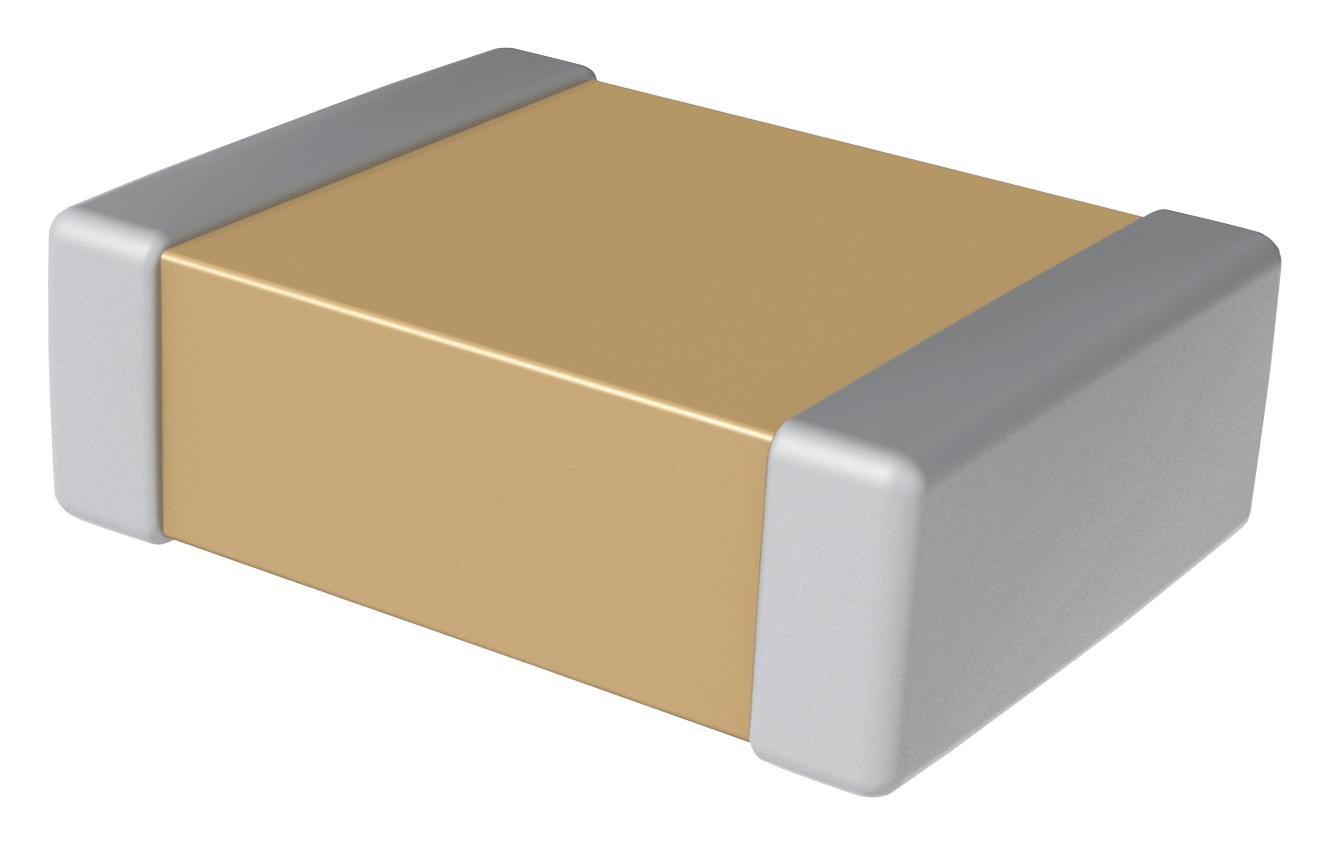

KEMET C0805W153KCRACTU SMD Ceramic Capacitor
The KEMET C0805W153KCRACTU is a high-voltage, X7R multilayer ceramic capacitor designed for surface mount technology (SMT) applications. It's ideal for use in power supplies, DC-DC converters, and other circuits requiring high voltage stability. The ArcShield construction enhances reliability and performance. While the X7R dielectric isn't recommended for AC line filtering or pulse applications, this capacitor provides a robust solution for a wide range of electronic designs. Its compact 0805 size makes it suitable for space-constrained applications.
KEMET C0805W153KCRACTU SMD Ceramic Capacitor Specifications:
- Series: ArcShield SMD Comm X7R HV
- Style: SMD Chip
- Description: SMD, MLCC, Arcshield, High Voltage
- Features: High Voltage
- Termination: Flexible Termination
- Marking: No
- AEC-Q200: No
- Component Weight: 21 mg
- Shelf Life: 78 Weeks
- MSL: 1
- Chip Size: 0805
- L: 2mm +/-0.3mm
- W: 1.25mm +/-0.3mm
- T: 1.25mm +/-0.15mm
- S: 0.75mm MIN
- B: 0.5mm +/-0.25mm
- Packaging: T&R, 180mm, Plastic Tape
- Packaging Quantity: 2500
- Capacitance: 0.015 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 500 VDC
- Dielectric Withstanding Voltage: 750 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 15%, 1kHz 1.0Vrms
- Dissipation Factor: 2.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 6.6667 GOhms
Buy the C0805W153KCRACTU KEMET SMD Ceramic Capacitor | myMectronic
Purchase the KEMET C0805W153KCRACTU securely and efficiently for your project needs.
Buy Now
Frequently Asked Questions
Where can I buy KEMET C0805W153KCRACTU?
You can click on the BUY or RFQ button to purchase C0805W153KCRACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C0805W153KCRACTU?
You can download the C0805W153KCRACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C0805W153KCRACTU?
KEMET
