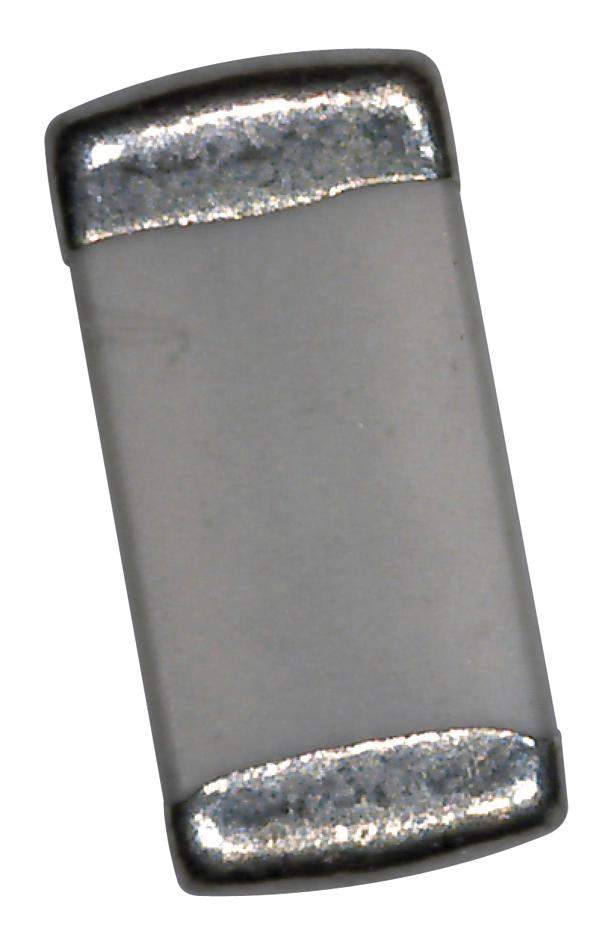

KEMET C1206C470K5GACTU Ceramic Capacitor
The C1206C470K5GACTU is a ceramic multilayer capacitor (MLCC) featuring a 1206 chip size. It offers a capacitance of 47 pF with a tolerance of 10% and a voltage rating of 50 VDC. Designed for high stability and low loss, this ultra-stable capacitor is suitable for precision applications in electronic circuits. Its dielectric withstand voltage is 125 VDC, with a low dissipation factor of 0.1%. RoHS compliant, it has a compact form factor, with dimensions of approximately 3.2mm by 1.6mm, and is suitable for surface-mount assembly.
KEMET C1206C470K5GACTU Ceramic Capacitor Specifications:
- Component Size: 1206 (L 3.2mm +/-0.2mm, W 1.6mm +/-0.2mm, Thickness 0.5mm +/-0.25mm)
- Capacitance: 47 pF
- Capacitance Tolerance: 10%
- Voltage Rating: 50 VDC
- Dielectric: Ceramic COG
- Measurement Condition: 1 MHz 1.0Vrms
- Dielectric Withstanding Voltage: 125 VDC
- Dissipation Factor: 0.1% at 1 MHz 1.0Vrms
- Temperature Range: *SS/+125°C
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- RoHS Compliant: Yes
- Termination: Tin
- Packaging: Tape and Reel, 180mm, Plastic Tape, Quantity: 4000
Buy the KEMET C1206C470K5GACTU – Reliable Ceramic Capacitor for Industrial Applications
Enhance your electronic designs with the KEMET C1206C470K5GACTU ceramic capacitor, offering 47 pF capacitance with a 50 VDC rating. This ultra-stable, low-loss MLCC features a compact 1206 chip size, making it ideal for precision applications. It provides excellent dielectric withstand voltage, low dissipation factor, and RoHS compliance, ensuring reliable performance in various environments. Perfect for surface-mount technology, it’s designed to meet demanding specifications for stability and durability, helping you achieve optimal circuit performance with ease.
Order your KEMET series C1206C470K5GACTU ceramic capacitor today and ensure your electronic projects benefit from high stability and low loss performance.
Frequently Asked Questions
Where can I buy KEMET C1206C470K5GACTU?
You can click on the BUY or RFQ button to purchase C1206C470K5GACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C1206C470K5GACTU?
You can download the C1206C470K5GACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C1206C470K5GACTU?
KEMET
