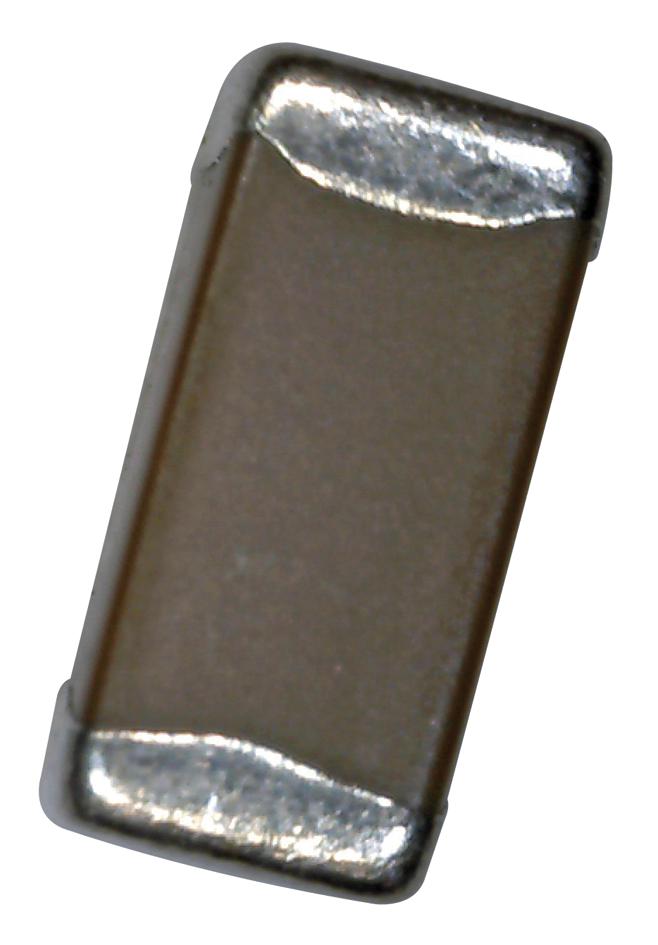

KEMET C1206C565K4RACTU Ceramic Capacitor
The KEMET C1206C565K4RACTU is a high-quality surface-mount ceramic capacitor designed for electronic applications requiring stability and reliability. This 1206 size MLCC offers a capacitance of 5.6 μF with a tolerance of 10%, rated for 16 VDC operation, and features temperature stability with the X7R dielectric. It has a temperature range from -55°C to +125°C and provides excellent insulation resistance of 17.9 MΩ. Ideal for use in power supplies, filters, and decoupling circuits, this capacitor ensures consistent performance in demanding environments.
KEMET C1206C565K4RACTU Ceramic Capacitor Specifications:
- Series: SMD Comm X7R
- Style: SMD Chip
- Dimensions: Length 3.2mm ±0.2mm, Width 1.6mm ±0.2mm, Thickness 0.5mm ±0.25mm
- Capacitance: 5.6 μF
- Capacitance Tolerance: 10%
- Voltage DC: 16 VDC
- Dielectric: X7R, Temperature Range: -55°C to +125°C
- Measurement Condition: 1kHz 1.0Vrms
- Dissipation Factor: 3.5% at 1kHz 1.0Vrms
- Insulation Resistance: 17.9 MΩ
- Package: T&R, 180mm Plastic Tape, Quantity: 2000 units
- Temperature Coefficient: X7R
- Material: Ceramic, Termination: Tin, RoHS Compliant
- Shelf Life: 78 Weeks
- MSL: 1
- Dielectric withstand voltage: 40 VDC
- Aging Rate: 3% loss per decade hour
Buy the Buy KEMET 5.6 μF Ceramic Capacitor Part Number C1206C565K4RACTU Online
Purchase the KEMET C1206C565K4RACTU ceramic capacitor online today for your power supply, filter, or decoupling applications. This 1206 size MLCC offers 5.6 μF capacitance with a 10% tolerance, rated for 16 VDC. Its temperature-stable X7R dielectric ensures consistent performance from -55°C to +125°C. Featuring low dissipation factor and high insulation resistance, this RoHS-compliant capacitor provides reliability and durability in various electronic devices. Fast, secure online ordering guarantees prompt delivery for your manufacturing or repair needs. Trust KEMET’s quality for your critical applications.
Order your KEMET series C1206C565K4RACTU ceramic capacitor today and ensure your electronic projects benefit from reliable, stable performance under demanding conditions.
Frequently Asked Questions
Where can I buy KEMET C1206C565K4RACTU?
You can click on the BUY or RFQ button to purchase C1206C565K4RACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C1206C565K4RACTU?
You can download the C1206C565K4RACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C1206C565K4RACTU?
KEMET
