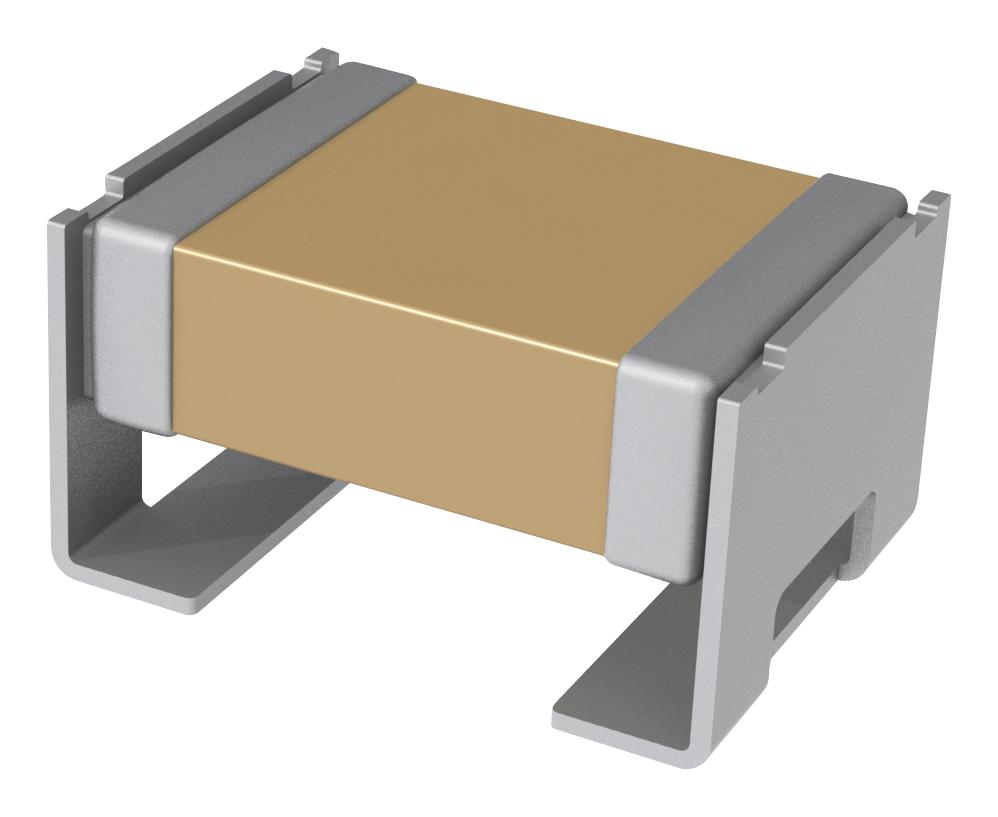

KEMET C1210C106K3R1C7186 Ceramic Capacitor
The KEMET C1210C106K3R1C7186 is a 10 microfarad ceramic capacitor with a voltage rating of 25 VDC, suitable for compact electronic circuits. Built with X7R dielectric, it offers temperature stability from -55°C to +125°C and a capacitance tolerance of ±10%. Its 1210 chip size ensures space-efficient placement on circuit boards, making it ideal for applications requiring high reliability and stability. The capacitor features tin termination, RoHS compliance, and a dielectric withstanding voltage of 925V, ensuring durability and performance in various electronic systems.
KEMET C1210C106K3R1C7186 Ceramic Capacitor Specifications:
- Capacitance: 10 uF
- Capacitance Tolerance: 10%
- Voltage DC: 25 VDC
- Dielectric: X7R
- Dielectric Withstanding Voltage: 925V
- Temperature Range: -55°C to +125°C
- Size: 1210-1 (L 3.5mm ±0.3mm, W 4.0mm ±0.4mm, T 3.35mm ±0.10mm, B 0.8mm ±0.15mm)
- Dissipation Factor: 3.50% at 1kHz, 25°C
- Aging Rate: 3% Loss per Decade Hour
- Insulation Resistance: 10 MOhms
- Packaging: T&R, 180mm, Plastic Tape, Quantity: 600
- RoHS Compliant: Yes
- Termination: Tin
- Temperature Coefficient: X7R
Buy the KEMET Series KPS SMD Comm X7R: C1210C106K3R1C7186
Discover the KEMET ceramic capacitor designed for high stability and reliability. Featuring 10 microfarads capacitance at 25 volts with X7R dielectric, it offers excellent performance across a wide temperature range from -55°C to +125°C. Its compact 1210 size makes it ideal for space-constrained applications, while RoHS compliance ensures environmental safety. With a dielectric withstand voltage of 925V and low dissipation factor, this capacitor provides consistent, dependable operation for your electronic assemblies. Perfect for demanding electronics requiring stability and durability.
Buy KEMET C1210C106K3R1C7186 high-capacitance ceramic capacitor now and experience unmatched reliability and performance in compact electronic circuits.
Frequently Asked Questions
Where can I buy KEMET C1210C106K3R1C7186?
You can click on the BUY or RFQ button to purchase C1210C106K3R1C7186 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C1210C106K3R1C7186?
You can download the C1210C106K3R1C7186 datasheet or visit the KEMET website for support.
Who is the manufacturer of C1210C106K3R1C7186?
KEMET
