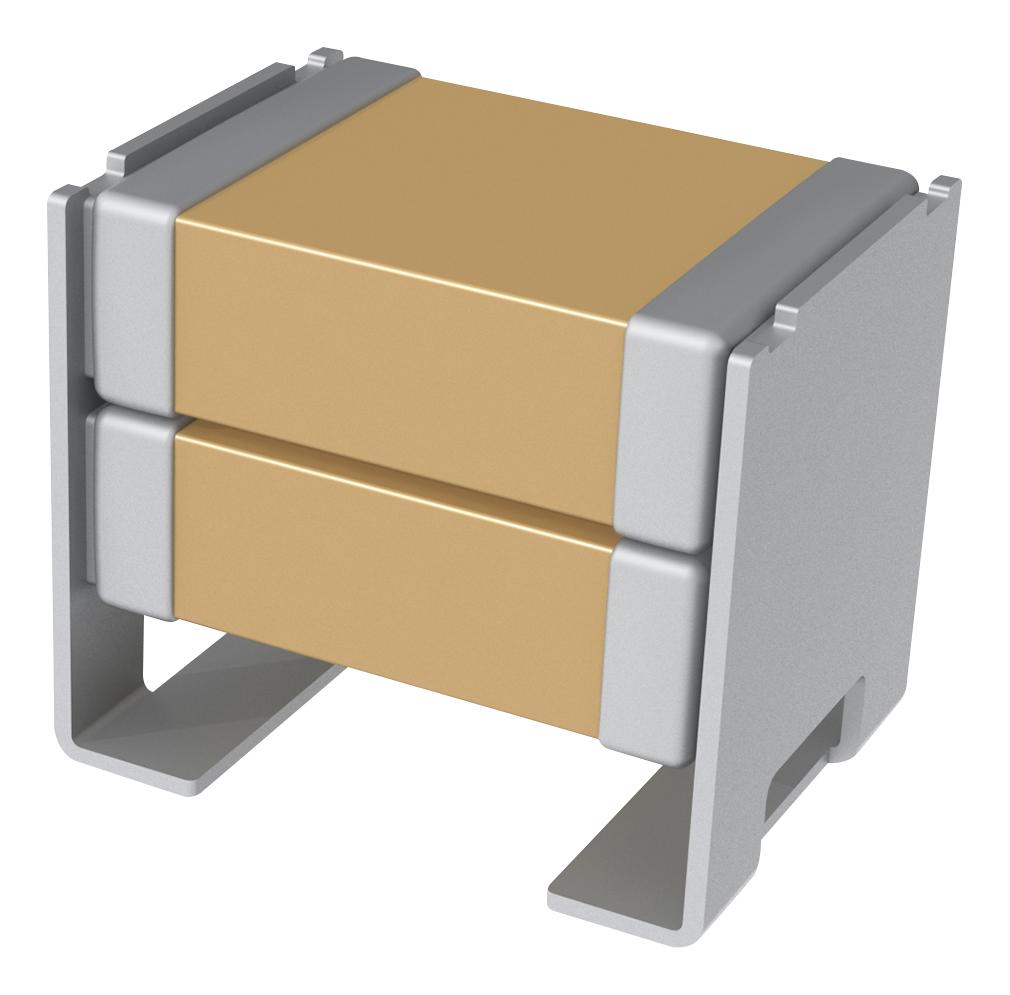

KEMET C1210C226M3R2CAUTO Automotive Ceramic Capacitor
This automotive-grade Surface-Mount Ceramic Capacitor features a 22uF capacitance with a 20% tolerance, rated at 25VDC, and employs X7R dielectric for stable performance across -55°C to +125°C. Its 1210-2 chip size makes it suitable for space-constrained applications in automotive electronics. Designed with tin terminations and compliant with AEC-Q200 standards, it offers excellent reliability, low ESR, and stable capacitance over temperature and voltage variations. Its compact double stacked chip structure ensures high capacitance in a small footprint, ideal for reliable automotive and industrial circuits.
KEMET C1210C226M3R2CAUTO Automotive Ceramic Capacitor Specifications:
- Capacitance: 22 uF
- Capacitance Tolerance: 20%
- Voltage DC: 25 VDC
- Dielectric: X7R
- Temperature Range: -55°C to +125°C
- Chip Size: 1210-2
- Dimensions: L 3.5mm +/-0.4mm, W 2.6mm +/-0.3mm, T 6.15mm +/-0.15mm
- Termination: Tin
- Compliance: AEC-Q200, RoHS
- Dissipation Factor: 10% at 120Hz 0.5Vrms
- Insulation Resistance: 22.7 MOhms
Buy the KEMET C1210C226M3R2CAUTO – Reliable Ceramic Capacitor for Automotive and Industrial Applications
Secure the KEMET automotive ceramic capacitor today—engineered with 22uF capacitance, 25VDC rating, and X7R dielectric for stable performance over a wide temperature range. Its compact 1210 chip size and tin termination make it ideal for automotive, industrial, and high-reliability circuits. With RoHS compliance and AEC-Q200 certification, it offers excellent aging characteristics and low ESR, ensuring long-lasting performance and system stability. Enhance your electronic designs with this trusted, high-quality ceramic capacitor—order now for fast, reliable online procurement.
Get KEMET C1210C226M3R2CAUTO today—built for automotive reliability and industrial durability in high-temperature environments.
Frequently Asked Questions
Where can I buy KEMET C1210C226M3R2CAUTO?
You can click on the BUY or RFQ button to purchase C1210C226M3R2CAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C1210C226M3R2CAUTO?
You can download the C1210C226M3R2CAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C1210C226M3R2CAUTO?
KEMET
