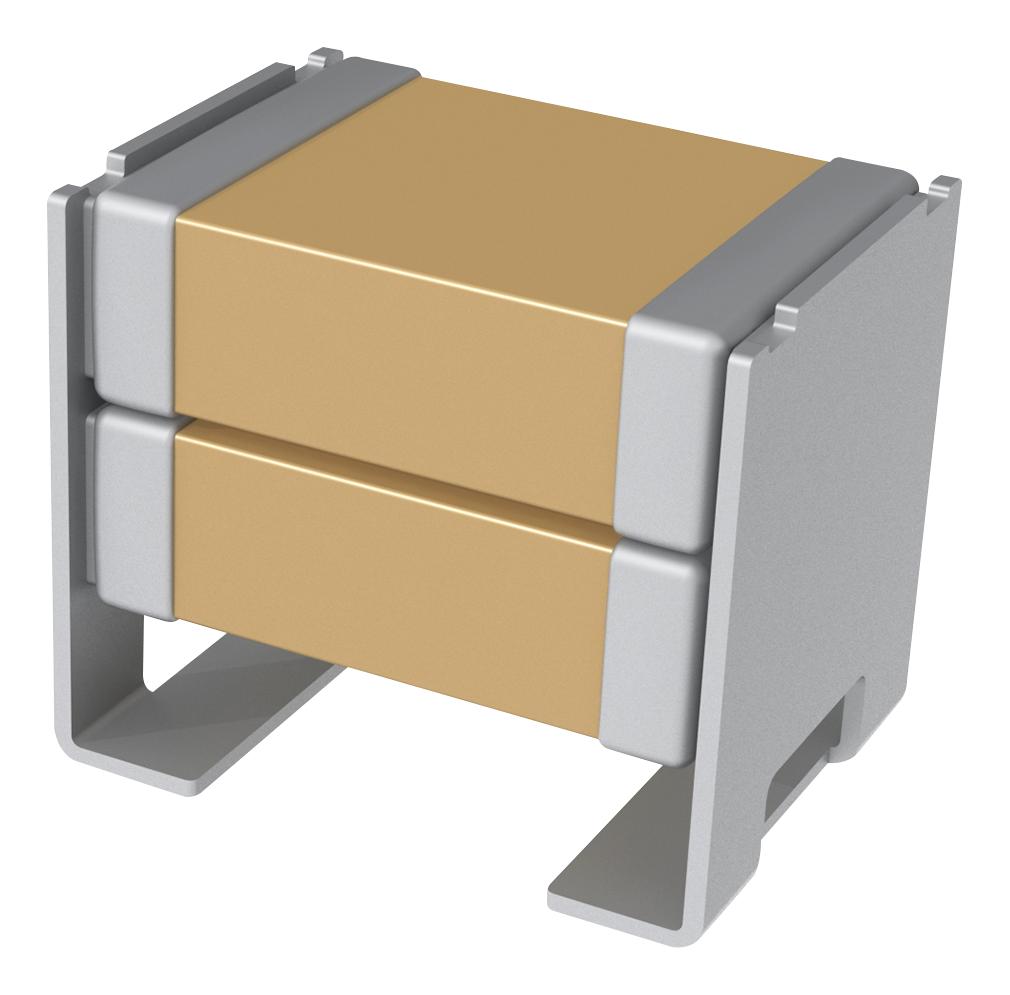

KEMET C1210C476M8R2C7186 ceramic capacitor
This ceramic capacitor features a 47 microfarad capacitance with a tolerance of 20%, rated at 10V DC, designed for stable performance in electronic circuits. It is a SMD, stacked chip type with a compact 1210-2 size, ideal for space-constrained applications. The dielectric is X7R, providing reliable temperature stability from -55°C to +125°C. The component is RoHS compliant, with tin termination, and packaged in T&R plastic tape for easy surface-mount assembly. Suitable for various commercial-grade electronic designs requiring durable, heat-resistant capacitors.
KEMET C1210C476M8R2C7186 ceramic capacitor Specifications:
- Capacitance: 47 uF
- Capacitance Tolerance: 20%
- Voltage DC: 10 VDC
- Dielectric: X7R
- Temperature Range: -55°C to +125°C
- Dimensions: Length 3.5mm ±0.3mm, Width 2.6mm ±0.3mm, Thickness 6.15mm ±0.15mm
- RoHS: Yes
- Termination: Tin
- Failure Rate: N/A
- Packaging: T&R, 178mm, Plastic Tape
- Quantity per Reel: 300
- Dissipation Factor: 10%
- Insulation Resistance: 10 MOhms
- Aging Rate: 3% Loss/Decade Hour
Buy the Buy KEMET Ceramic Capacitor Part Number C1210C476M8R2C7186 Online
Order the KEMET ceramic capacitor with part number C1210C476M8R2C7186 today to ensure reliable, high-performance energy storage in your electronic device. This 47 microfarad capacitor features a 20% tolerance, 10V rated voltage, and X7R dielectric for excellent temperature stability from -55°C to +125°C. Its compact SMD 1210-2 size makes it suitable for space-constrained applications. RoHS compliant with tin termination, it comes in T&R packaging for easy surface-mount assembly. Enhance your electronic designs with this durable, heat-resistant component today.
Get KEMET C1210C476M8R2C7186 today—designed for stable performance in compact electronic circuits.
Frequently Asked Questions
Where can I buy KEMET C1210C476M8R2C7186?
You can click on the BUY or RFQ button to purchase C1210C476M8R2C7186 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C1210C476M8R2C7186?
You can download the C1210C476M8R2C7186 datasheet or visit the KEMET website for support.
Who is the manufacturer of C1210C476M8R2C7186?
KEMET
