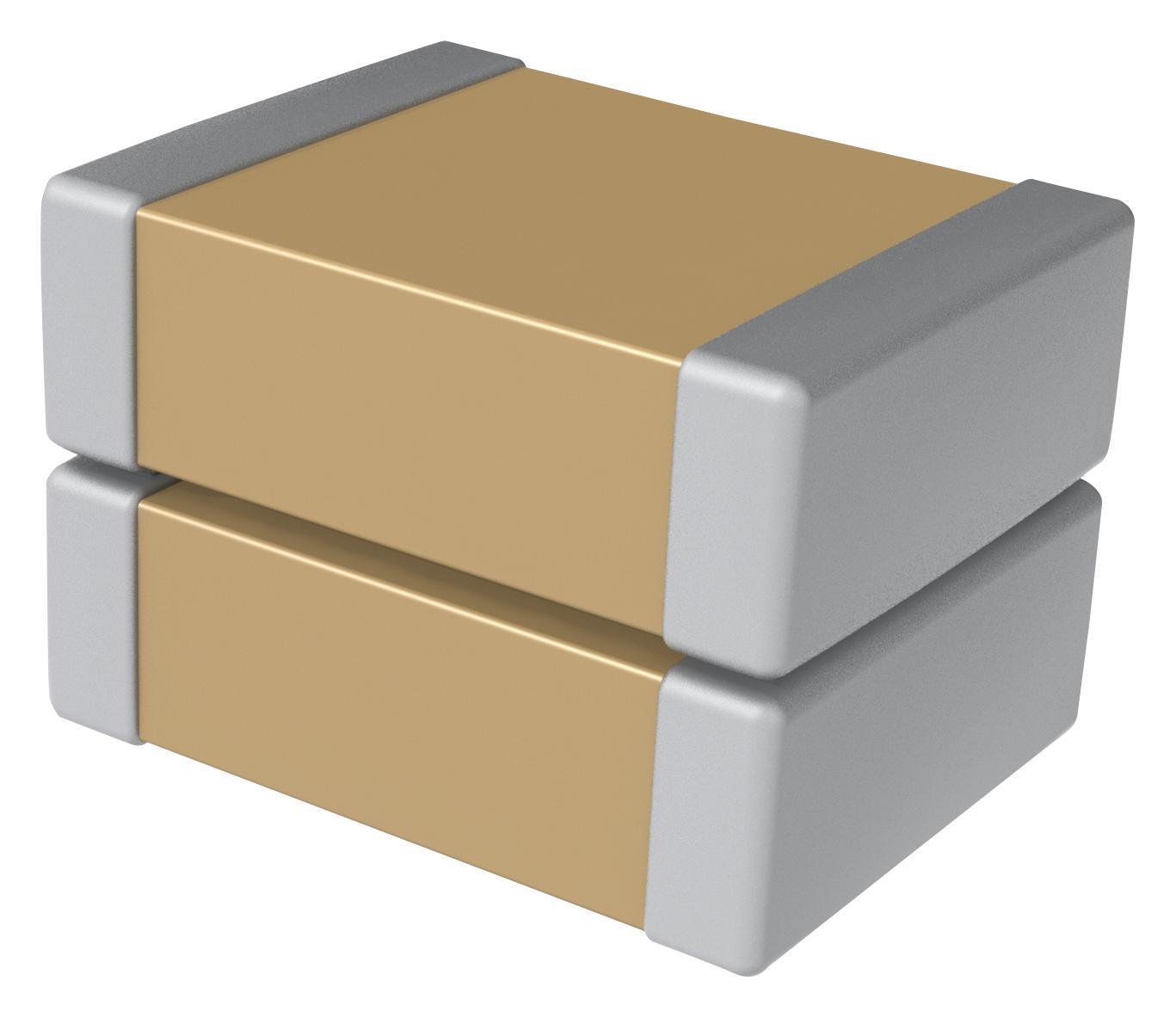

KEMET C1812C242KHRLCAUTO MLCC Ceramic Capacitor
The KEMET C1812C242KHRLCAUTO is a multilayer ceramic capacitor (MLCC) from the KONNEKT Auto X7R series. This capacitor is designed for high-density packaging and offers excellent stability and reliability in automotive and industrial applications. It boasts a 2400 pF capacitance, a 10% tolerance, and a high 3000 VDC voltage rating, ensuring robust performance. The AEC-Q200 qualification indicates its suitability for automotive applications, while RoHS compliance ensures environmental responsibility. Its X7R dielectric provides a stable capacitance across a wide temperature range, making it ideal for demanding electronic circuits.
KEMET C1812C242KHRLCAUTO MLCC Ceramic Capacitor Specifications:
- Series: KONNEKT Auto X7R
- Style: KONNEKT
- Description: SMD, MLCC, KONNEKT, Ultra-Stable, Class II
- Features: High Density Packaging
- Termination: Tin
- Qualifications: AEC-Q200
- AEC-Q200: Yes
- Component Weight: 350 mg
- Chip Size: 1812-2
- Shelf Life: 78 Weeks
- MSL: 1
- Capacitance: 2400 pF
- Measurement Condition: 120 Hz 0.5Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 3000 VDC
- Dielectric Withstanding Voltage: 3600 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 15%, 1kHz 1.0Vrms
- Dissipation Factor: 2.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- Packaging: T&R, 180mm, Plastic Tape
- Packaging Quantity: 500
