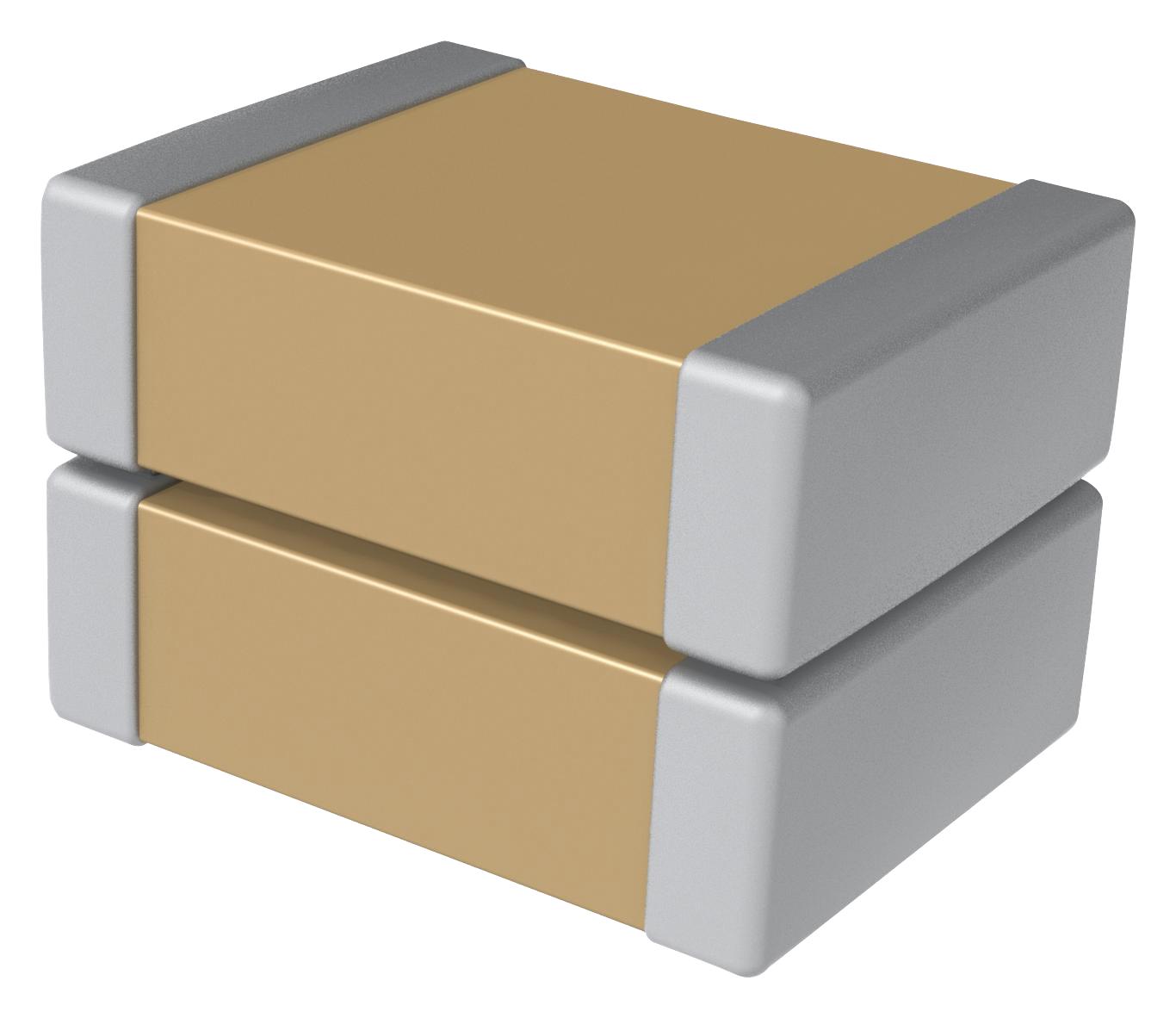

KEMET C1812X942KZRLCAUTO Ceramic Capacitor
These surface mount multilayer ceramic chip capacitors (SMD MLCC) feature KONNEKT™ technology, utilizing Transient Liquid Phase Sintering for high-density multi-chip packaging. With an X7R dielectric, they are suitable for bypass, decoupling, and frequency discrimination applications where stability is less critical. Automotive grade (AEC-Q200) qualified, they provide high capacitance of 9400 pF at 10% tolerance, with a voltage rating of 2500 VDC. Operating from -55°C to +125°C, these capacitors are designed for power supplies, automotive, industrial, telecommunications, and aerospace uses. They offer low ESR, ESL, and are compatible with standard reflow profiles, ensuring reliable performance in demanding environments.
KEMET C1812X942KZRLCAUTO Ceramic Capacitor Specifications:
- Capacitance: 9400 pF
- Capacitance Tolerance: 10%
- Voltage DC: 2500 V
- Temperature Range: -55°C to +125°C
- Dielectric: X7R
- Dissipation Factor: 2.5% at 120 Hz 0.5Vrms
- Measurement Condition: 120 Hz 0.5Vrms
- Dimensions: L 4.5mm +/-0.4mm, W 3.2mm +/-0.3mm, T 5.1mm +/-0.4mm, B 0.7mm +/-0.35mm
- Material: Transient Liquid Phase Sintering (TLPS)
- Packaging: T&R, 180mm, Plastic Tape
- Insulation Resistance: 100 GOhms
- Operating Temp: -55°C to +125°C
- Qualification: AEC-Q200
- Features: High Density Packaging, Low ESR/ESL, Non-polar
- Dielectric Withstanding Voltage: 3000 Voc
Buy the KEMET C1812X942KZRLCAUTO – Reliable High-Voltage Ceramic Capacitor for Industrial Applications
Purchase the KEMET C1812X942KZRLCAUTO ceramic capacitor online to ensure reliable high-voltage performance for industrial, automotive, and power applications. This advanced SMD MLCC features KONNEKT technology, providing high-density packaging with an X7R dielectric for stable capacitance over temperature and voltage variations. With a capacitance of 9400 pF at 2500 VDC and operating temperatures from -55°C to +125°C, it is ideal for bypass, decoupling, and filtering in power supplies, automotive systems, and aerospace electronics. buy today and experience industry-leading reliability and performance in your designs.
Get KEMET C1812X942KZRLCAUTO today—designed for high-capacity and high-voltage reliability in demanding environments.
Frequently Asked Questions
Where can I buy KEMET C1812X942KZRLCAUTO?
You can click on the BUY or RFQ button to purchase C1812X942KZRLCAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C1812X942KZRLCAUTO?
You can download the C1812X942KZRLCAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C1812X942KZRLCAUTO?
KEMET
