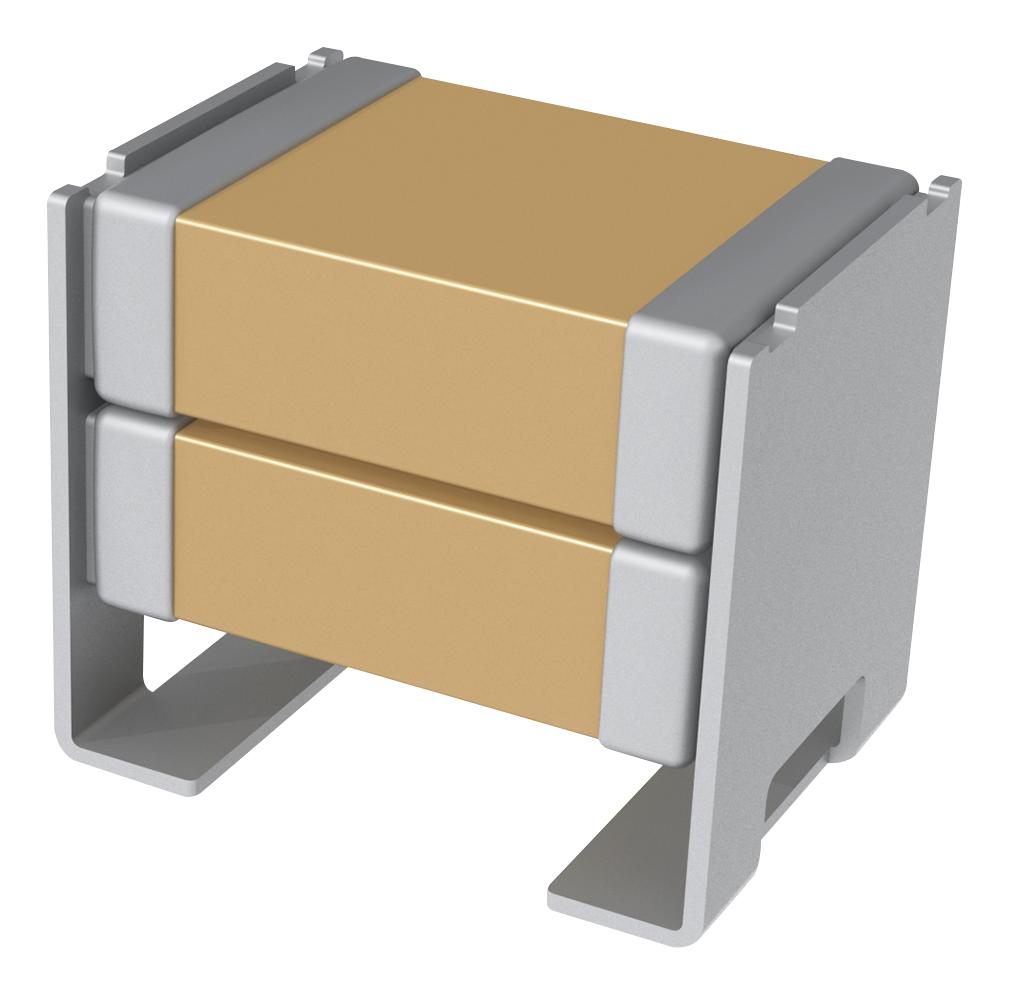

KEMET C2220C106M5R2CAUTO Automotive Ceramic Capacitor
The KEMET C2220C106M5R2CAUTO is a high-quality automotive-grade ceramic multilayer capacitor (MLCC) with a 10 uF capacitance, X7R dielectric, and a voltage rating of 50 VDC. Designed for reliable performance in automotive and electronic applications, it features dual stacked chip design, robust RoHS compliant construction, and is constructed with tin terminations for enhanced durability. Measuring approximately 6mm x 5mm x 5mm, this capacitor offers a temperature range of -55°C to +125°C and maintains stable capacitance with a 20% tolerance. It is packaged in a plastic tape for easy surface-mount assembly and is rated for a long shelf life of about 78 weeks.
KEMET C2220C106M5R2CAUTO Automotive Ceramic Capacitor Specifications:
- Capacitance: 10 uF
- Capacitance Tolerance: 20%
- Voltage DC: 50 VDC
- Dielectric: X7R
- Temperature Range: -55°C to +125°C
- Dimensions: approx. 6mm x 5mm x 5mm
- Termination: Tin
- Dissipation Factor: 2.5% at 1kHz
- Insulation Resistance: 50 MOhms
- Maximum Operating Voltage: 125 VAC
- Part Size: 2220-2
- Shelf Life: 78 Weeks
- RoHS Compliance: Yes
- Temperature Coefficient: X7R
- Package: T&R, plastic tape, 180mm reel
- Application: Automotive, high-reliability electronic circuits
- Weight: 800 mg
- Certifications: AEC-Q200
Buy the KEMET Series KPS SMD Auto X7R: C2220C106M5R2CAUTO
Order the KEMET C2220C106M5R2CAUTO ceramic capacitor online today and experience superior reliability in your automotive and electronic applications. This high-performance, RoHS-compliant component features 10uF capacitance, X7R dielectric, and a voltage rating of 50V DC, offering exceptional stability from -55°C to +125°C. Its dual stacked chip design and tin-terminals ensure durability and easy surface-mount installation. Perfect for demanding environments, it comes in a convenient tape packaging for quick assembly, ensuring your project maintains high standards of quality and performance.
Get KEMET C2220C106M5R2CAUTO today—built for automotive reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy KEMET C2220C106M5R2CAUTO?
You can click on the BUY or RFQ button to purchase C2220C106M5R2CAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C2220C106M5R2CAUTO?
You can download the C2220C106M5R2CAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C2220C106M5R2CAUTO?
KEMET
