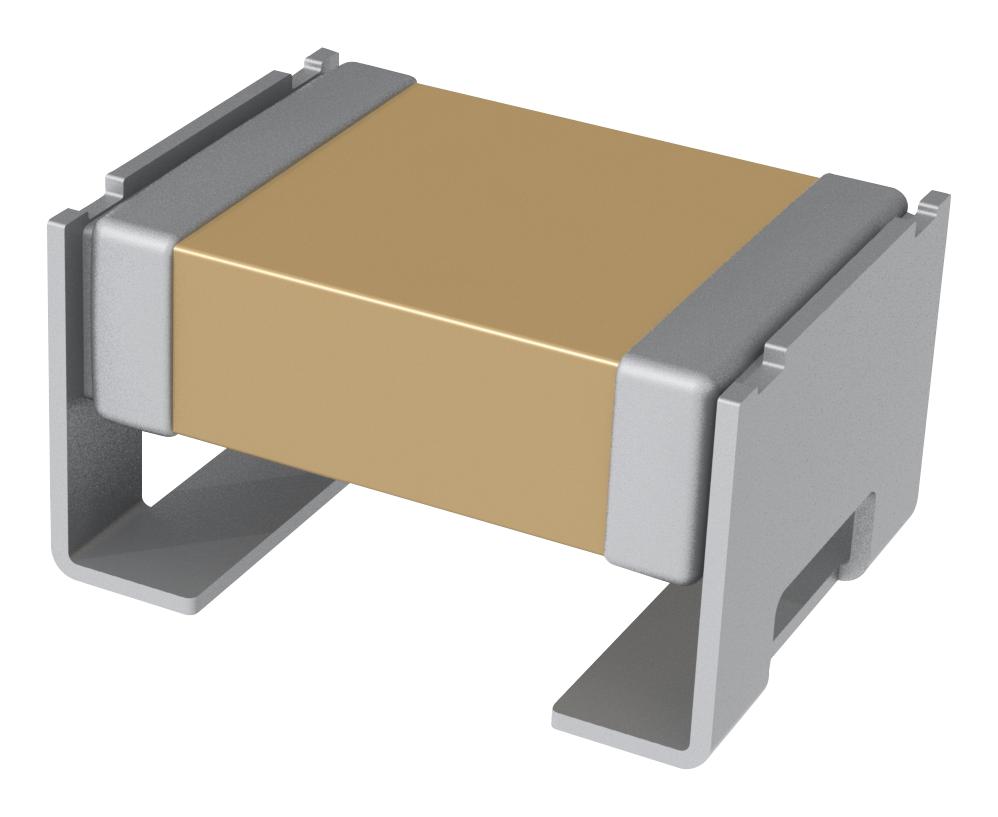

KEMET C2220C474KCR1C7186 High Voltage Ceramic Capacitor
The KEMET C2220C474KCR1C7186 is a high voltage, X7R dielectric ceramic capacitor with a capacitance of 0.47 uF and a voltage rating of 500 VDC. Designed for use in electronic applications, it features a stacked chip style with stable temperature characteristics, suitable for high-voltage circuits. Its compact dimensions of approximately 6mm length, 5mm width, and 3.5mm height make it ideal for space-constrained designs. The capacitor is RoHS compliant, tin-terminated, and offers excellent insulation resistance, making it reliable for demanding electronic environments.
KEMET C2220C474KCR1C7186 High Voltage Ceramic Capacitor Specifications:
- Capacitance: 0.47 uF
- Measurement Condition: 1 kHz 1.0 Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 500 VDC
- Dielectric: X7R
- Temperature Range: -55°C to +125°C
- Temperature Coefficient: X7R
- Dissipation Factor: 2.5% at 1 kHz 1.0 Vrms
- Insulation Resistance: 212.8 MOhms
- Dimensions: Length 6mm ±0.5mm, Width 5mm ±0.5mm, Height 3.5mm ±0.3mm
- Material: Tin termination
- Style: Stacked chip, SMD MLCC
- Packaging: T&R, 180mm, plastic tape, Quantity: 300
- Shelf Life: 78 Weeks
- MSL: 1
Buy the KEMET Series KPS SMD Comm X7R HV: C2220C474KCR1C7186
Purchase the KEMET high voltage ceramic capacitor C2220C474KCR1C7186 online today. With a capacitance of 0.47 microfarads and a voltage rating of 500 volts, this X7R dielectric component ensures stable performance across a wide temperature range from -55°C to +125°C. Its compact size makes it suitable for space-sensitive applications, and the RoHS-compliant tin termination enhances durability. Whether for high-voltage filtering or general circuit stability, this reliable seamless component is essential for demanding electronic systems.
Buy KEMET C2220C474KCR1C7186 now and experience unmatched reliability and high-voltage performance in your electronic projects.
Frequently Asked Questions
Where can I buy KEMET C2220C474KCR1C7186?
You can click on the BUY or RFQ button to purchase C2220C474KCR1C7186 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C2220C474KCR1C7186?
You can download the C2220C474KCR1C7186 datasheet or visit the KEMET website for support.
Who is the manufacturer of C2220C474KCR1C7186?
KEMET
