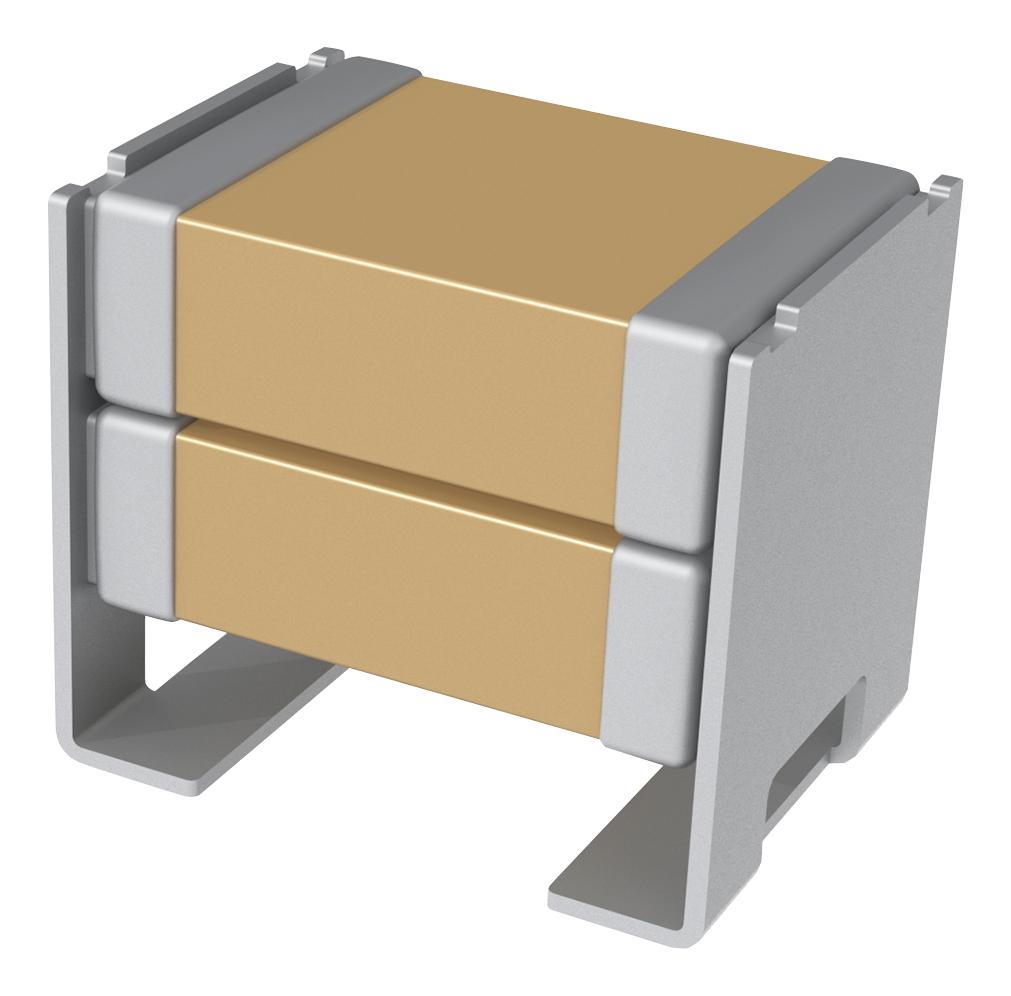

KEMET C2220C474MCR1C7186 High Voltage Ceramic Capacitor
The KPS series surface mount Multilayer Ceramic Chip Capacitor features proprietary lead-frame technology, stacking one or two MLCCs into a compact package. It mechanically isolates capacitors for enhanced mechanical and thermal stress resistance, reducing noise and vibration. Its dual-chip stack delivers higher capacitance in a smaller footprint, supporting up to 10mm board flex. Key benefits include space saving, improved stress protection, noise reduction, environmentally friendly materials, and compatibility with Pb-Free reflow profiles, ideal for high voltage, temperature-stable applications in space-constrained electronic designs.
KEMET C2220C474MCR1C7186 High Voltage Ceramic Capacitor Specifications:
- Capacitance: 0.47 uF
- Capacitance Tolerance: 20%
- Voltage DC: 500 VDC
- Dielectric: X7R
- Temperature Range: -55/+125°C
- Measurement Condition: 1 kHz 1.0Vrms
- Dissipation Factor: 2.5% 1 kHz 1.0Vrms
- Measurement Condition: 1 kHz 1.0Vrms
- Insulation Resistance: 212.8 MOhms
- Dimensions: Length 6mm +/-0.5mm, Width 5mm +/-0.5mm, Thickness 3.5mm +/-0.30mm
- B: 1.6mm +/-0.3mm
- Packaging: Tapes, 180mm, Plastic, Quantity: 300
- Series: KPS SMD Comm X7R HV
- Style: Stacked Chip, SMD MLCC
- Termination: Tin
- Shelf Life: 78 Weeks
- MSL: 1
- Component Weight: 410 mg
- RoHS: Yes
Buy the Buy KEMET High Voltage Ceramic Capacitor Part Number C2220C474MCR1C7186 Online
Purchase the KEMET high voltage ceramic capacitor C2220C474MCR1C7186 online today. This robust surface mount MLCC features proprietary stacking technology, offering 0.47uF capacitance at 500VDC. It ensures high stability with X7R dielectric, suitable for space-constrained designs requiring stress resistance and noise reduction. Its compact form and environmentally friendly tin termination make it perfect for high voltage applications. Enjoy fast delivery and trusted quality that assures performance, longevity, and compatibility with Pb-Free reflow processes—order now for reliable electronic performance.
Buy KEMET C2220C474MCR1C7186 now and experience the reliability of high voltage ceramic capacitors with stable X7R dielectric in a compact surface mount package.
Frequently Asked Questions
Where can I buy KEMET C2220C474MCR1C7186?
You can click on the BUY or RFQ button to purchase C2220C474MCR1C7186 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C2220C474MCR1C7186?
You can download the C2220C474MCR1C7186 datasheet or visit the KEMET website for support.
Who is the manufacturer of C2220C474MCR1C7186?
KEMET
