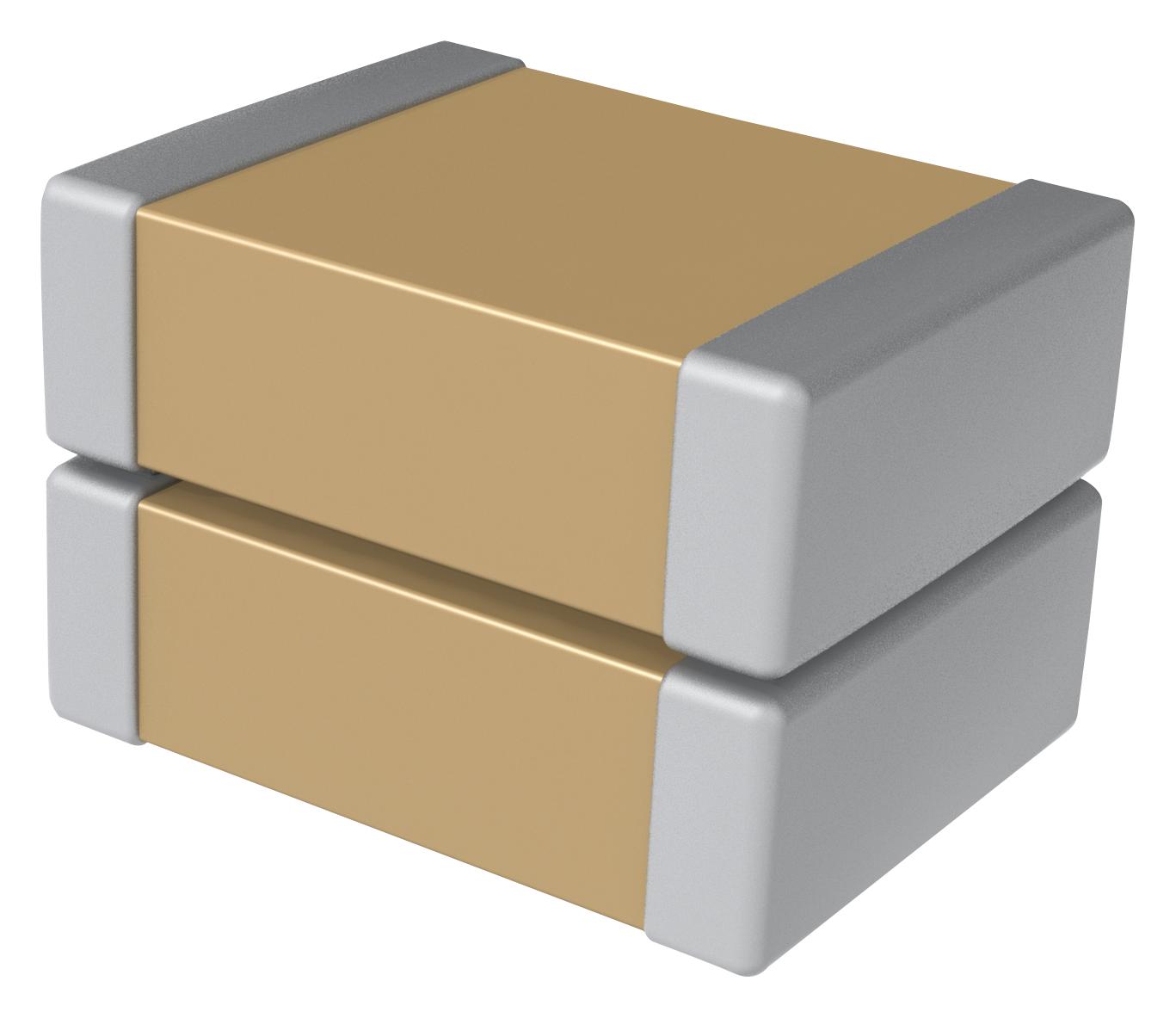

KEMET C2220C664KBRLCAUTO Ceramic Capacitor
The KONNEKT Auto X7R is a high-density, surface-mount multilayer ceramic capacitor (MLCC) designed for automotive and electronic applications. It features a capacitance of 0.66uF with a 10% tolerance, rated at 630 VDC. The ceramic dielectric type is X7R, known for stability over temperature, with a size of 2220-2 (5.7mm x 5mm x 5.1mm). It offers RoHS compliance, AEC-Q200 qualification, and a dissipation factor of 2.5%, suitable for demanding environments requiring reliability and high voltage ratings.
KEMET C2220C664KBRLCAUTO Ceramic Capacitor Specifications:
- Capacitance: 0.66uF
- Capacitance Tolerance: 10%
- Voltage DC Rating: 630 VDC
- Dielectric Type: X7R
- Size: 2220-2 (L 5.7mm +/-0.4mm, W 5mm +/-0.4mm, T 5.1mm +/-0.4mm, B 0.6mm +/-0.35mm)
- Temperature Range: -55/+125°C
- Dissipation Factor: 2.5% at 1 kHz 1.0Vrms
- Insulation Resistance: 1.515 GOhms
- Aging Rate: 3% Loss per Decade Hour
- Qualification: AEC-Q200, RoHS compliant
- Termination: Tin
- Packaging: T&R, 180mm, Plastic Tape, 300 pieces
- Measurement Condition: 120 Hz 0.5Vrms
- Shelf Life: 78 Weeks
- Component Weight: 800 mg
- Dimensions (L x W x T): 5.7mm x 5mm x 5.1mm
Buy the Buy KEMET Ceramic Part Number C2220C664KBRLCAUTO Online
Purchase the KEMET ceramic capacitor with part number C2220C664KBRLCAUTO online now to ensure high-quality, reliable performance in your automotive or electronic applications. Designed with X7R dielectric, rated at 630VDC, and offering excellent stability across a temperature range of -55°C to +125°C, this MLCC provides maximum durability and efficiency. Its high-density packaging, RoHS compliance, and AEC-Q200 qualification make it ideal for demanding environments. Get fast delivery and competitive prices for this essential component that enhances reliability and performance in your circuits.
Order your KEMET Series C2220C664KBRLCAUTO with high voltage and reliable stability today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy KEMET C2220C664KBRLCAUTO?
You can click on the BUY or RFQ button to purchase C2220C664KBRLCAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C2220C664KBRLCAUTO?
You can download the C2220C664KBRLCAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C2220C664KBRLCAUTO?
KEMET
