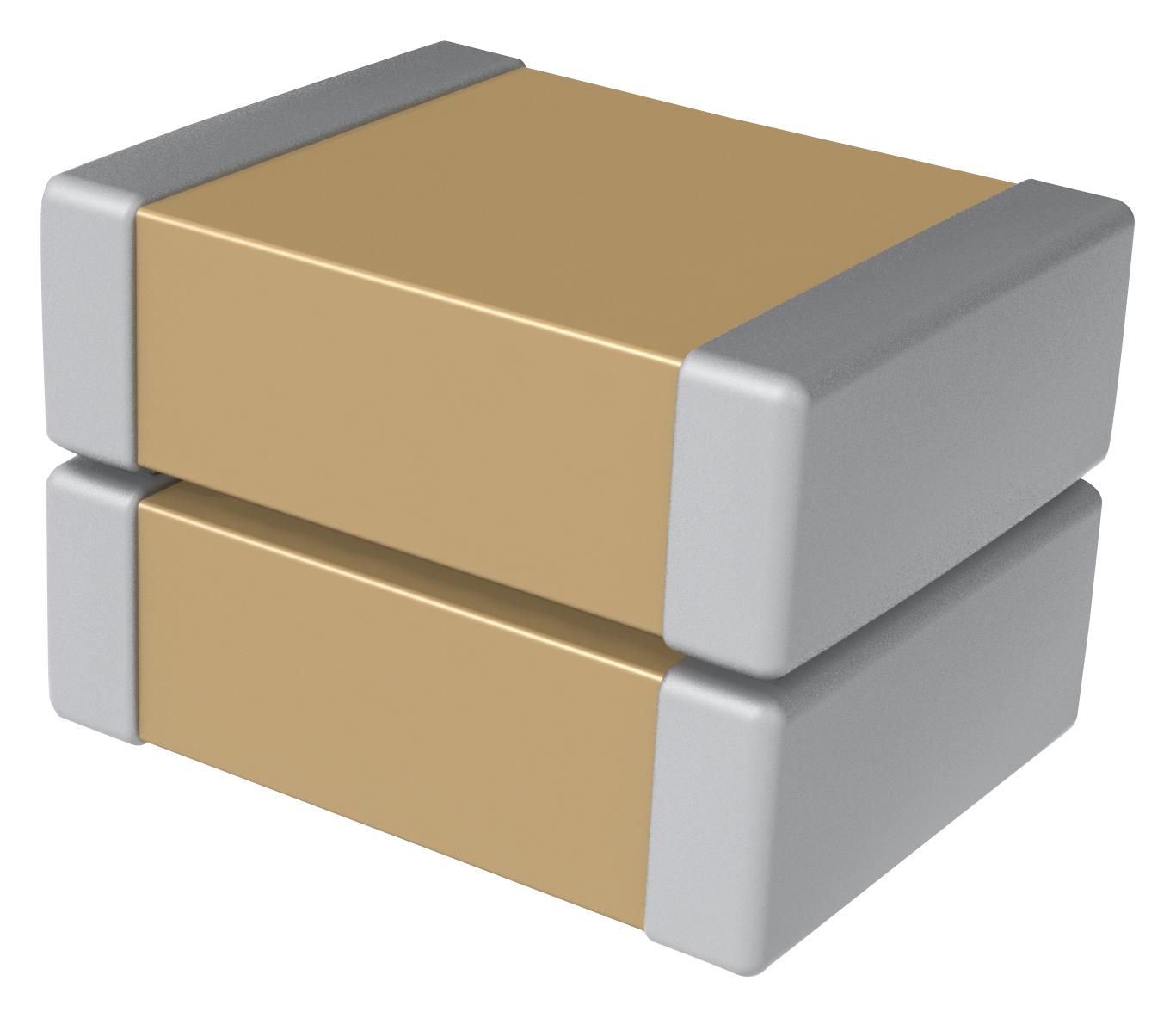

KEMET C2220C944KCRLCAUTO Ceramic Capacitor
The KONNEKT Auto X7R ceramic capacitor is an ultra-stable, surface-mount component designed for high-density packaging in various electronic applications. It features a capacitance of 0.94 microfarads with a 10% tolerance, rated for 500 VDC operation, and adheres to AEC-Q200 standards for automotive use. Its dimensions are approximately 5.7mm x 5mm x 5.1mm, with a dielectric withstanding voltage of 7.5kV. The capacitor exhibits a low dissipation factor of 2.5% at 1kHz, a temperature range of -55°C to +125°C, and a capacitance change of 15% when referenced to +25°C, ensuring reliable performance in demanding environments.
KEMET C2220C944KCRLCAUTO Ceramic Capacitor Specifications:
- Capacitance: 0.94 uF
- Capacitance Tolerance: 10%
- Voltage DC: 500 VDC
- Dimensions: Length 5.7mm ±0.4mm, Width 5mm ±0.4mm, Height 5.1mm ±0.4mm
- Dielectric: X7R
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 2.5% at 1kHz
- Insulation Resistance: 1.064 GOhms
- Measurement Condition: 120 Hz, 0.5 Vrms
- Temperature Coefficient: X7R
- Aging Rate: 3% Loss/Decade Hour
- Termination: Tin
- RoHS Compliant: Yes
- Qualification: AEC-Q200
- Packaging: T&R, 180mm, Plastic Tape
- Shelf Life: 78 Weeks
Buy the KEMET C2220C944KCRLCAUTO – Reliable Ceramic Capacitor for Industrial Applications
Purchase the KEMET ceramic capacitor online for your high-density, automotive-grade electronic projects. With a capacitance of 0.94uF and rated for 500VDC, it provides exceptional stability and durability. The X7R dielectric ensures reliable performance across a wide temperature range from -55°C to +125°C. Its compact size, tin termination, and RoHS compliance make this capacitor ideal for demanding applications. Order now to ensure your devices benefit from high-quality, precision components designed for long-lasting operation and optimal performance in automotive and industrial electronics.
Get KEMET C2220C944KCRLCAUTO today—built for high reliability and automotive-grade performance in demanding electronic environments.
Frequently Asked Questions
Where can I buy KEMET C2220C944KCRLCAUTO?
You can click on the BUY or RFQ button to purchase C2220C944KCRLCAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C2220C944KCRLCAUTO?
You can download the C2220C944KCRLCAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C2220C944KCRLCAUTO?
KEMET
