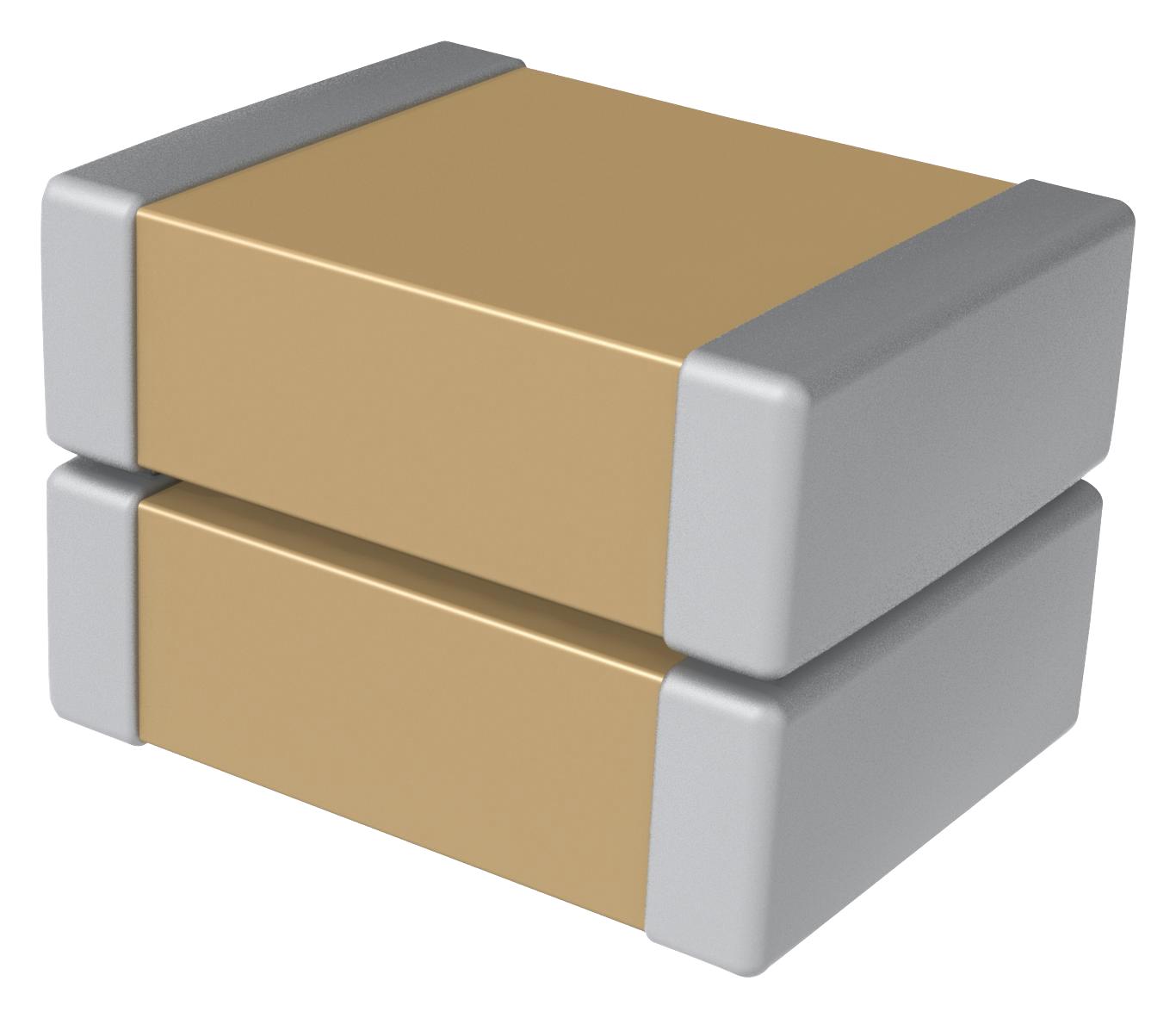

KEMET C2220X205K2RLCAUTO Surface Mount Ceramic Capacitor
These are X7R dielectric surface mount multilayer ceramic chip capacitors (SMD MLCC) featuring KONNEKT™ technology. This high-density packaging uses Transient Liquid Phase Sintering (TLPS) for a compact multi-chip solution, ideal for space-constrained applications. Classified as Class II dielectric, they are suitable for bypass, decoupling, and frequency filtering where stable capacitance isn't critical. They offer predictable capacitance variation with voltage and time, with minimal change over temperature ranges. Automotive-grade (AEC-Q200) qualified, these capacitors provide high capacitance and voltage ratings, low ESR and ESL, and are non-polar for easy installation. Capacitance varies within ±15% from -55°C to +125°C, with a maximum operating temperature of 125°C. Suitable for use in power supplies, automotive (including hybrid), telecommunications, medical, military, aerospace, semiconductor, and test/diagnostic equipment applications, including SMPS, lighting ballasts, HID lighting, DC/DC converters, filters, snubbers, DC blocking, and bypass circuits.
KEMET C2220X205K2RLCAUTO Surface Mount Ceramic Capacitor Specifications:
- Capacitance: 2uF
- Capacitance Tolerance: 10%
- Voltage DC: 200 VDC
- Temperature Range: -55°C to +125°C
- Dielectric: X7R
- Measurement Condition: 120Hz 0.5Vrms
- Dissipation Factor: 2.5% at 120Hz 0.5Vrms
- Capacitance Change: ±15% over temperature range
- Aging Rate: 3% loss per decade hour
- Insulation Resistance: 500 MOhms
- Dimensions: L 5.9mm ±0.75mm, W 5mm ±0.4mm, T 3.1mm ±0.3mm
- B 0.7mm ±0.35mm
- Operating Temperature: -55°C to +125°C
- RoHS Compliant: Yes
- Qualification: AEC-Q200
- Packaging: T&R, 180mm, plastic tape, 500 pcs
- Terminations: Flexible termination
- Features: High density packaging, low ESR, non-polar
- Application: Power supplies, automotive, telecommunications, medical, aerospace, filters, bypass circuits
Buy the Buy KEMET X7R Capacitor Part Number C2220X205K2RLCAUTO Online
Purchase the KEMET C2220X205K2RLCAUTO ceramic chip capacitor online now to ensure your electronic projects have reliable, high-quality capacitance. This high-density, AEC-Q200 qualified component offers 2uF capacitance with a 200V DC rating in a compact package, ideal for space-constrained applications. Perfect for power supplies, automotive electronics, and filtering solutions, it maintains stable capacitance over a wide temperature range from -55°C to +125°C. Enjoy fast delivery and competitive pricing—order today to enhance your electronic design with proven reliability.
Get KEMET C2220X205K2RLCAUTO today—built for precision, high reliability, and long-lasting durability in your electronic assemblies.
Frequently Asked Questions
Where can I buy KEMET C2220X205K2RLCAUTO?
You can click on the BUY or RFQ button to purchase C2220X205K2RLCAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C2220X205K2RLCAUTO?
You can download the C2220X205K2RLCAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C2220X205K2RLCAUTO?
KEMET
