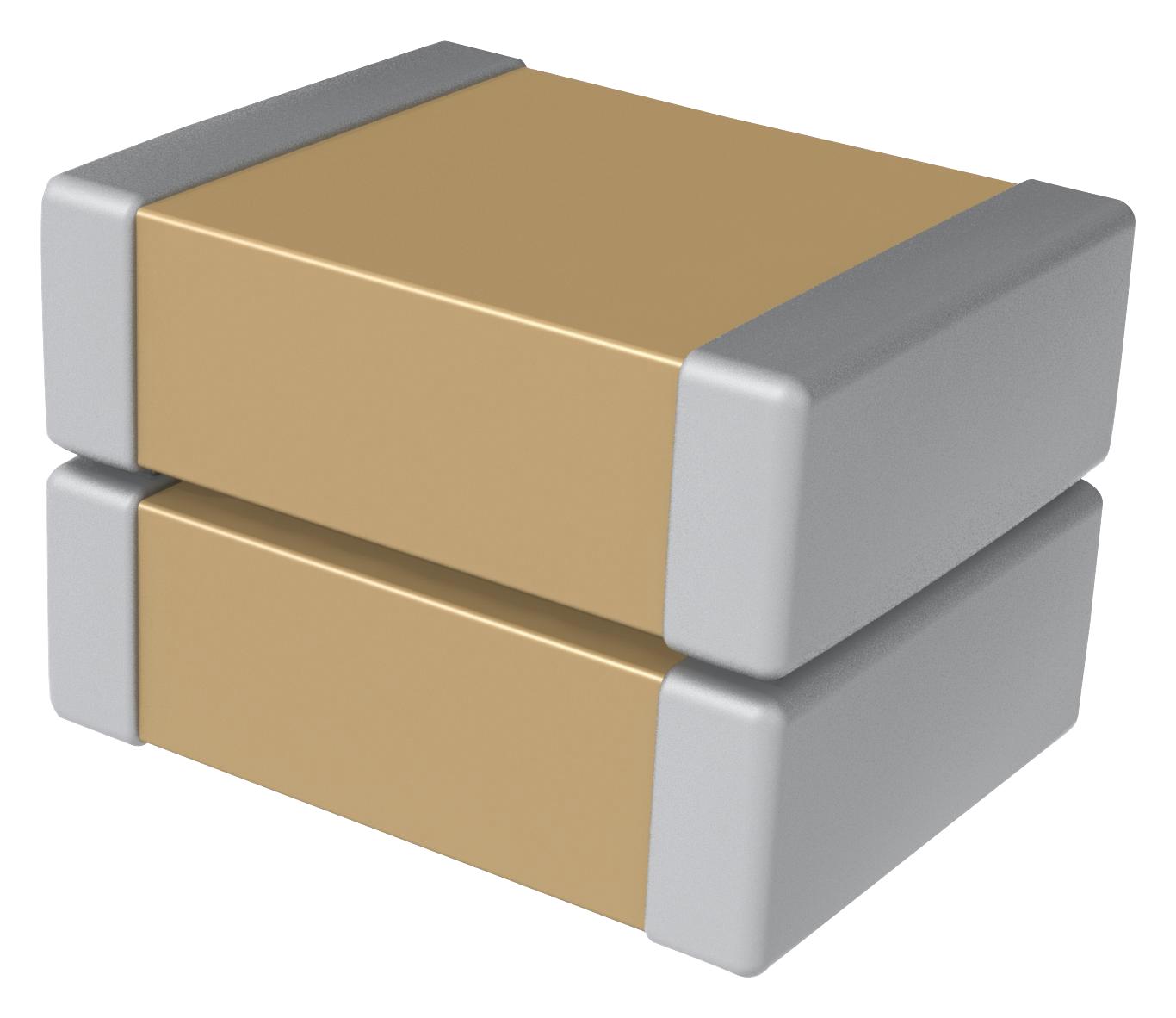

KEMET C2220X303KZRLCAUTO Automotive Ceramic Capacitor
These surface-mount multilayer ceramic chip capacitors utilize KONNEKT technology with an innovative TLPS process for high-density packaging. Featuring X7R dielectric ceramics, they are ideal for bypass, decoupling, and frequency discrimination applications where stability and Q factor are less critical. Offering stable capacitance over -55°C to +125°C and voltage up to 2500 VDC, they are automotive-grade and qualified by AEC-Q200. They provide high capacitance and voltage in limited space, with low ESR and ESL, non-polar design, suitable for power supplies, automotive, telecommunications, and industrial equipment such as SMPS, filters, and DC/DC converters.
KEMET C2220X303KZRLCAUTO Automotive Ceramic Capacitor Specifications:
- Capacitance: 0.03uF
- Capacitance Tolerance: 10%
- Voltage DC: 2500 VDC
- Dielectric: X7R
- Temperature Range: -55°C to +125°C
- Measurement Condition: 120 Hz 0.5Vrms
- Dissipation Factor: 2.5% at 120 Hz
- Insulation Resistance: 33.333 GOhms
- Dimensions: Length 5.9mm +/-0.75mm, Width 5mm +/-0.4mm, Height 5.1mm +/-0.4mm
- Chip Size: 2220-2
- Finish: Flexible Termination
- Packaging: T&R, 180mm, Plastic Tape
- Qualified: AEC-Q200, RoHS Compliant
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: 3000 V
- Features: High Density Packaging, Low ESR/ESL, Non-polar, Automotive Grade
Buy the KEMET Series KONNEKT Automotive X7R: C2220X303KZRLCAUTO
Purchase KEMET automotive-grade ceramic capacitors online today. These high-voltage, X7R dielectrics deliver reliable performance in power supplies, automotive, telecommunications, and industrial applications. Designed with high-density packaging and flexible terminations, they ensure durability and stability across wide temperature ranges. Perfect for bypass, decoupling, and filtering circuits where space and dependability matter. With a maximum voltage of 2500 VDC and features like low ESR and ESL, you benefit from industry-leading precision, quality, and quick delivery for your electronic projects and systems.
Get KEMET C2220X303KZRLCAUTO today—built for high-voltage stability and automotive reliability in compact ceramic capacitors.
Frequently Asked Questions
Where can I buy KEMET C2220X303KZRLCAUTO?
You can click on the BUY or RFQ button to purchase C2220X303KZRLCAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C2220X303KZRLCAUTO?
You can download the C2220X303KZRLCAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C2220X303KZRLCAUTO?
KEMET
