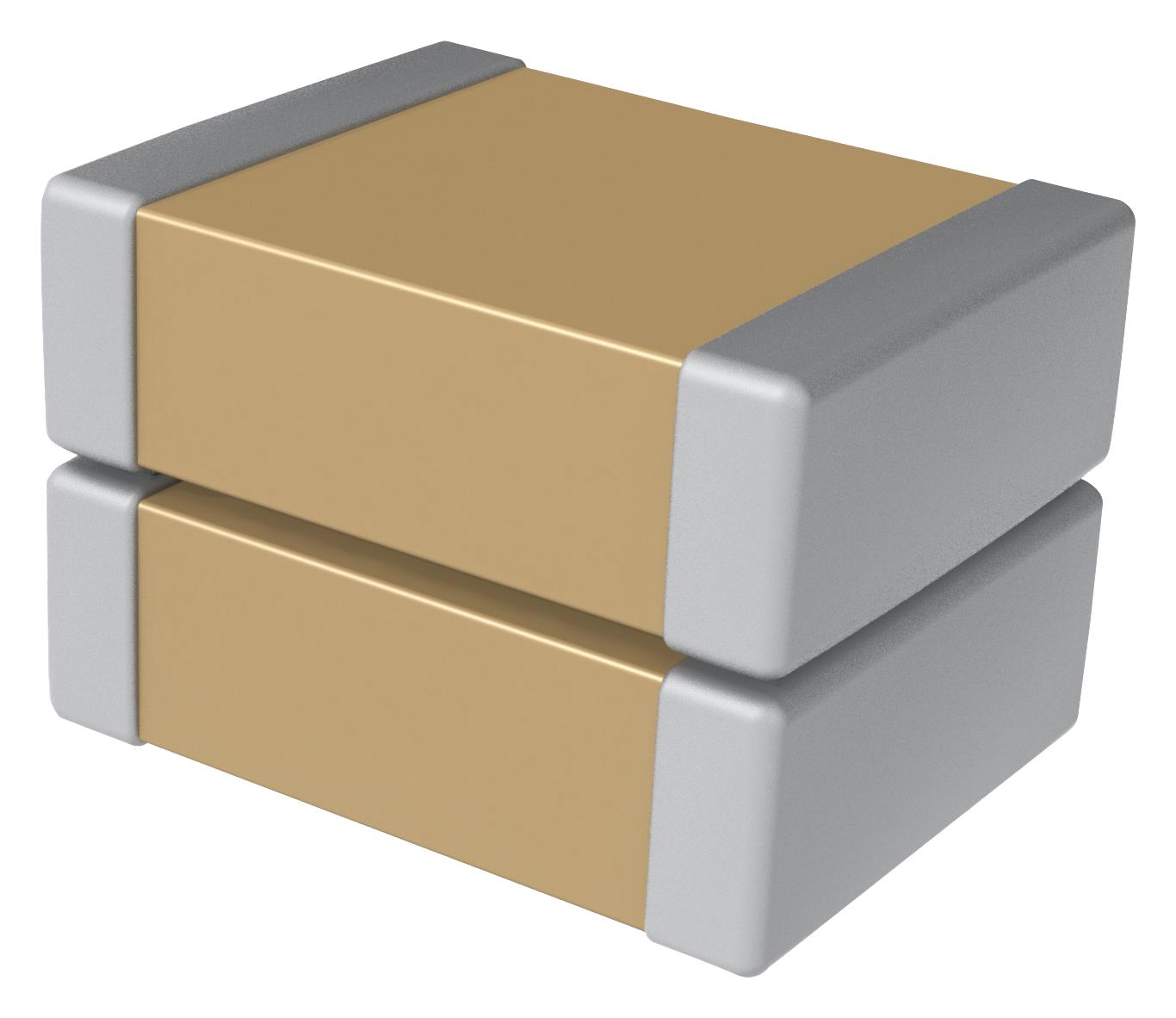

KEMET C2220X944KCRLCAUTO Ceramic Capacitor
This high-performance X7R multilayer ceramic chip capacitor features KONNEKT™ technology, utilizing Transient Liquid Phase Sintering for compact surface mount packaging. It maintains capacitance stability within ±15% from -55°C to +125°C and is rated for 500 VDC, making it ideal for automotive, industrial, and telecommunications applications. The AEC-Q200 qualified component offers low ESR and ESL for efficient filtering, decoupling, and bypass circuits. Its non-polar design, high-density packaging, and compatibility with standard reflow profiles ensure reliable performance in power supplies, lighting, and control systems requiring high stability and durability.
KEMET C2220X944KCRLCAUTO Ceramic Capacitor Specifications:
- Capacitance: 0.94 uF
- Capacitance Tolerance: 10%
- Voltage DC: 500 VDC
- Temperature Range: -55°C to +125°C
- Dielectric: X7R
- Dimensions: Length 5.9mm +/-0.75mm, Width 5mm +/-0.4mm, Height 5.1mm +/-0.4mm
- Measurement Condition: 120 Hz, 0.5 Vrms
- Dissipation Factor: 2.5% at 120 Hz, 0.5 Vrms
- Insulation Resistance: 106 MΩ
- AEC-Q200 qualified
- RoHS compliant
- Material: Ceramic with flexible termination
- Manufactured using Transient Liquid Phase Sintering (TLPS) technology
- Packaging: T&R, 180mm, plastic tape
- Shelf Life: 78 weeks
- Part Size: 2220-2
- Operating Temperature: -55°C to +125°C
- Low ESR and ESL for high efficiency in filtering applications
Buy the KEMET C2220X944KCRLCAUTO – Reliable Automotive Grade Capacitor for Industrial Applications
Purchase the KEMET C2220X944KCRLCAUTO ceramic capacitor online today and ensure your designs benefit from the latest KONNEKT technology. With high stability, a voltage rating of 500 VDC, and automotive-grade certification, this MLCC provides excellent filtering, decoupling, and bypass performance. Its compact size and low ESR/ESL make it ideal for demanding industrial, automotive, and telecommunications applications. Order now to enhance your power systems, lighting, and control circuits with a reliable, durable component designed for long-term performance in harsh environments.
Buy KEMET C2220X944KCRLCAUTO now and experience unmatched reliability and performance for high-density, high-voltage power applications.
Frequently Asked Questions
Where can I buy KEMET C2220X944KCRLCAUTO?
You can click on the BUY or RFQ button to purchase C2220X944KCRLCAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C2220X944KCRLCAUTO?
You can download the C2220X944KCRLCAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C2220X944KCRLCAUTO?
KEMET
