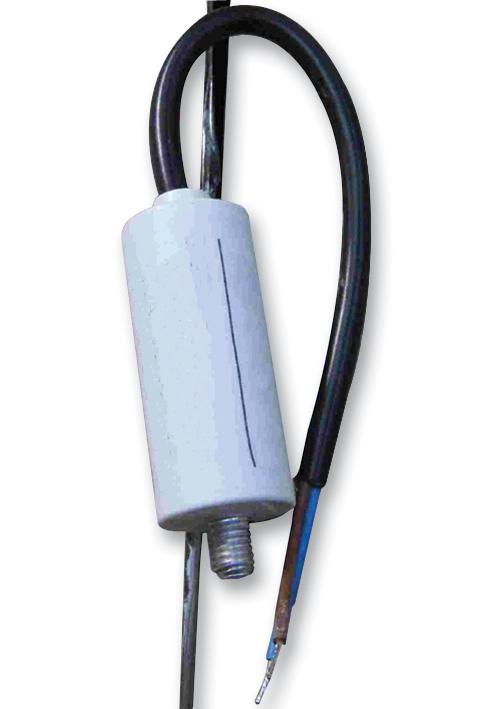

KEMET C274ACF4150WA0J Capacitor
This high-quality capacitor series is designed for reliable operation in motor start applications such as air-fans, pumps, and low power electric motors. It features robust polypropylene dielectric, self-healing metal layers, and flexible mounting options. Compliant with IEC 60252-1 standards, these capacitors provide excellent performance, durability, and safety with self-extinguishing plastic cases and zinc-coated terminals. Suitable for continuous and intermittent duty, they are ideal for demanding industrial and home appliance motor start circuits, offering long life, stable capacitance, and efficient power handling.
KEMET C274ACF4150WA0J Capacitor Specifications:
- Capacitance range: 1 to 9 uF
- Rated Voltage: 275V~ to 470V~ (varies by series)
- Temperature Range: -25°C to +85°C (operating), -40°C to +90°C (storage)
- Dissipation factor: 20x 10^-4 at 20°C, 50 Hz
- Dielectric: Polypropylene with self-healing metal plates
- Body Material: Polypropylene with self-extinguishing features V2 (UL94)
- Protection Degree: Up to IP55 with cable or fast-on terminations
- Maximum Altitude: 2000 meters
- Vibration Resistance: IEC 68-2-6
- Tolerance: ±5%
- Mounting: Any position
- Leakage clearance: > 5mm between parts under voltage
Buy the KEMET Series C.27 Capacitor: 150uF 275V~
Get your KEMET Series C.27 capacitor now online for dependable motor start assistance in pumps, fans, and low power motors. Designed with polypropylene dielectric, self-healing plates, and certified to IEC 60252-1 standards, these capacitors deliver consistent performance, durability, and safety. Suitable for continuous or intermittent operation, they offer high reliability even in demanding industrial applications. Choose the rated voltage and capacitance best suited for your project and benefit from quick online ordering, fast delivery, and technical support for your installation needs.
Order your KEMET Series C.27 capacitor today and ensure reliable, long-lasting start-up performance for your electric motors and appliances.
Frequently Asked Questions
Where can I buy KEMET C274ACF4150WA0J?
You can click on the BUY or RFQ button to purchase C274ACF4150WA0J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C274ACF4150WA0J?
You can download the C274ACF4150WA0J datasheet or visit the KEMET website for support.
Who is the manufacturer of C274ACF4150WA0J?
KEMET
