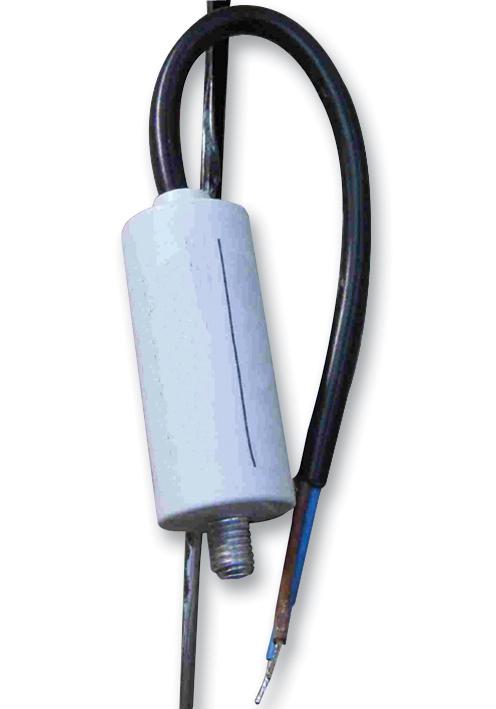

KEMET C274ACF4800WA0J Power Capacitor
This high-quality, polypropylene dielectric capacitor is designed for reliable use in industrial applications such as circulators, pumps, and motor start-winding series. Capable of operating at voltages up to 470V, it offers excellent life expectancy, with options for continuous and intermittent working classes. The product features self-healing metal plates, self-extinguishing case materials, and is compliant with EN60252-1 standards. Suitable for any mounting position, it ensures optimal electrical performance and safety in demanding environments, making it ideal for low-voltage, high-temperature applications.
KEMET C274ACF4800WA0J Power Capacitor Specifications:
- Capacitance: 4.0 uF ±5%
- Rated Voltage: 470V~ AC
- Maximum Rated Voltage: 500V AC
- Operating Temperature: -25°C to 85°C
- Storage Temperature: -40°C to 90°C
- Working Class: Class B for 10,000 hours at 420V, Class C for 3,000 hours at 470V
- Frequency Range: 50-60 Hz
- Dissipation factor (Tgε): 20 x 10^-4 at 20°C, 50Hz
- Case Material: Self-extinguishing polypropylene or Noryl V2 (UL94)
- Dielectric: Polypropylene
- Plates: Self-healing metal layer
- Leakage Clearance Under Voltage: > 5mm in air
- Maximum Altitude: 2000 m
- Mounting: Any position
- Vibration Resistance: IEC 68-2-6
- Tightening Torque: 5 Nm (M8), 10 Nm (M12)
Buy the KEMET 4U0F– Reliable Power Capacitor for Industrial Applications
Enhance your electrical installations with KEMET power capacitors designed for demanding industrial environments. Capable of operating reliably at 470V, these polypropylene capacitors feature self-healing plates, UL94-approved self-extinguishing cases, and conform to EN60252-1 standards. Suitable for any orientation, they provide excellent life expectancy, stable performance, and safety in applications like pump drives, circulators, and motor start-winding circuits. Order online now for fast delivery and dependable quality engineered for high-temperature, high-voltage industrial needs.
Order your KEMET Series C.27/4 polypropylene capacitor today and ensure reliable motor start performance in your industrial projects.
Frequently Asked Questions
Where can I buy KEMET C274ACF4800WA0J?
You can click on the BUY or RFQ button to purchase C274ACF4800WA0J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C274ACF4800WA0J?
You can download the C274ACF4800WA0J datasheet or visit the KEMET website for support.
Who is the manufacturer of C274ACF4800WA0J?
KEMET
